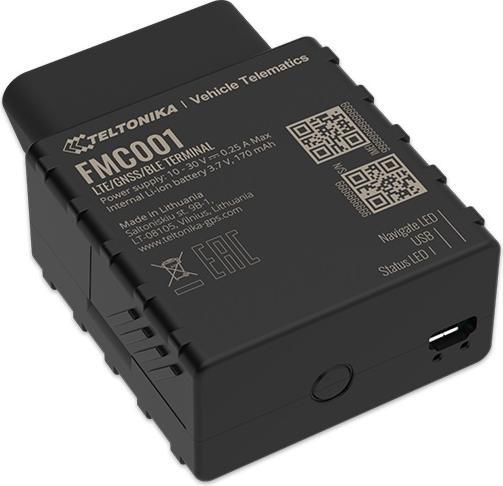

FMC001 - LTE Cat. 1 Advanced Plug-and-Play Tracker with Bluetooth

Teltonika FMC001 represents the next step in communication technology – this is the first Plug-and-Track LTE OBD device with GNSS and Bluetooth connectivity. The possibility to read OBD II parameters, and effortless installation and detailed accelerometer data provide a compelling solution. This is the perfect tracker for a wide range of applications – fleet management of light commercial vehicles, car rental & leasing, driver logbook, insurance telematics (UBI) and so on. The device supports various Bluetooth Low Energy sensors, beacons, firmware and configuration updates via Bluetooth.

Module

• Name: Quectel EG91-EX, Teltonika TM2500

• Technology: LTE (Cat. 1)/3G (UMTS/HSPA)/2G (GSM/GPRS)/GNSS/Bluetooth

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS

• Receiver: Tracking: 33

• Tracking sensitivity: -165 dBm

• Accuracy: <3 m

• Hot start: <1 s

• Warm start: <25 s

• Cold start: <35 s

Cellular

• Technology: LTE CAT1, UMTS/HSPA+ and GSM/GPRS/EDGE

• 2G bands: EG91-EX: GSM: B3/B8

• 3G bands: EG91-EX: WCDMA: B1/B8

• 4G bands: EG91-EX: LTE FDD: B1/B3/B7/B8/B20/B28

• Data transfer: LTE: LTE FDD: Max. 10 Mbps (DL)/max. 5 Mbps (UL); UMTS: WCDMA: Max. 384 Kbps (DL)/max. 384 Kbps (UL); GSM: GPRS: Max. 107 Kbps (DL)/max. 85.6 Kbps (UL)

• Data support: SMS (text/data)

Power

• Input voltage range: 10 - 30 V DC with overvoltage protection

• Internal back-up battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Bluetooth

• Specification: 4.0 + LE

• Supported peripherals: Temperature and humidity sensor, Inateck barcode scanner, universal BLE sensors support

Physical Specification

• Dimensions: 67,2 x 49,6 x 25 mm (L x W x H)

• Weight: 63 g.
