Actuator
EUR339,–
Issendorff Flush-mounted module 230V, 2 LCN - UPU output phases DOWN and ON section
Best selling Actuators from Issendorff
This page always stays fresh and updates automatically.
1. Issendorff Flush-mounted module 230V, 2 LCN - UPU output phases DOWN and ON section
The LCN-UPU flush-mounted module from Issendorff is an innovative sensor-actor specifically designed for the LCN bus system. With two switchable and dimmable electronic outputs operating at a voltage of 230V, this module offers versatile applications in modern building automation. It enables precise control of lighting and other electrical devices, while two additional outputs are available in the software but are not externally accessible. The installation is flush-mounted, allowing for an aesthetic integration into the room design. The module is equipped with an LED display that indicates the current status of the outputs. With an IP20 protection rating, it is suitable for use in dry indoor environments and meets the requirements for modern smart home solutions.
- Two switchable and dimmable outputs for flexible control
- Additional outputs available in the software
- LED display for status information
- Flush-mounted installation for a clean setup.
2. Issendorff LCN-UPP flush-mounted module with extended programming
The LCN-UPP in-wall module is a sensor-actuator module of the LCN bus system. It features two switchable or dimmable electronic outputs for 230 V. Two additional outputs are simulated and not externally accessible, but can be used for programming. Furthermore, the LCN-UPP has T- and I-connections for connecting additional LCN sensors and actuators. The internal operating program can be freely parameterized with the LCN system software LCN-PRO. The LCN-UPP is installed decentral in deep switch, distribution, or electronic boxes.
Application areas:
- High-quality lighting control at theater level with elaborate lighting effects.
- Control of shading systems such as blinds or roller shutters.
- Individual room control for cooling, heating, or ventilation.
- Access control with IR remote control and transponder.
- Automation controls with multiple timers and links.
- Control panels with four status LEDs and hierarchical links of permissions and displays.
- Alarm systems, including multiple zones and complex conditions, block lock, pre-alarm, etc.
- Links across trades: lighting, shading, alarm, access, etc.
- High functionality with cost-effective multiple use of sensors and actuators.
All functions can be used independently and are therefore available simultaneously.
3. Issendorff Universal shutter actuator LCN - UMR 230V 2x6A LCN -UMR
The LCN-UMR roller shutter module is a sensor-actuator module for decentralized control of roller shutter and blind motors. It features two switchable, interlocked 230 V relay outputs for loads of up to 300 VA. Additionally, the LCN-UMR has T and I connections for connecting further LCN sensors and actuators. The internal operating program can be freely parameterized using the LCN system software LCN-PRO. The LCN-UMR is installed decentrally in deep switch, distribution, or electronic boxes.
Application areas:
- Control of roller shutter and blind motors
- Control of shading and blackout systems
- Decentralized control of screens or partition walls
- Automatic controls with multiple timers and links
- Control panels with four states per LED and hierarchical links of permissions and displays
- Alarm systems, including multiple zones and complex conditions, block locks, pre-alarm, etc.
- Links across trade boundaries, lighting, shading, alarm, access, etc.
High functionality with cost-effective multiple use of sensors and actuators. All functions can be used independently and are therefore available simultaneously.

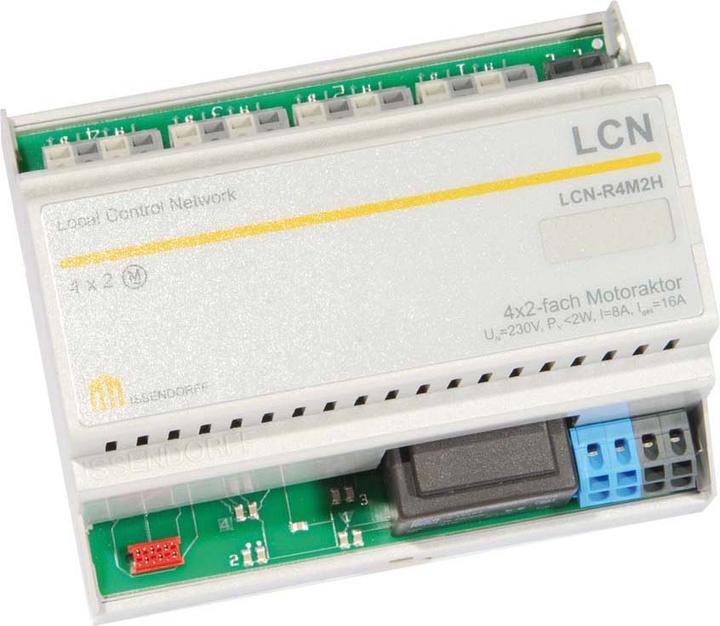

4. Issendorff Relay module incl. LCN-R4M2H Supply for 4x2 blind motors 230V/8
The LCN-R4M2H relay module from Issendorff is a powerful solution for controlling up to 8 blind motors, shutters, or awnings. It allows for the operation of 4 x 2 motors, which are connected in parallel, making it ideal for use in modern building automation systems. With an integrated power supply that provides 230V ±15% at 2W, the module ensures reliable performance. The operating and status LEDs offer a clear indication of the operational state. The relay type is a changeover contact with a maximum load capacity of 8A, while the maximum inrush current is 30A. The module is designed for mounting on a DIN rail and has an IP 20 protection rating, making it suitable for indoor use. Its compact dimensions of 114mm x 92mm x 66mm allow for easy integration into existing systems.
- Operation of up to 8 motors
- Integrated power supply for easy installation
- Maximum inrush current of 30A
- Operating and status LED for clear indication.
5. Issendorff Switching and LCN-SH dimming module for the top-hat rail
LCN-SH Switching and Dimming Module for DIN Rail
Description: The LCN-SH Standard DIN Rail Module is a sensor-actuator module of the LCN bus system. It features two switchable or dimmable electronic outputs at 230V and two simulated outputs. Additionally, the LCN-SH has T-, I-, and P-connections for integrating further LCN sensors and actuators. The internal operating program can be freely parameterized using the LCN system software LCN-PRO. It is typically mounted on a DIN rail in distribution cabinets, but direct mounting is also possible.
Areas of Application: High-quality lighting control at theater level, complex lighting effects realizable, daylight-dependent lighting regulation, control of shading systems and conservatories, for up to 4 motor pairs with LCN-R4M2H individual room control: cooling, heating, ventilation. Access control with IR remote control and transponder, automation controls with multiple timers and links, hierarchical linking of permissions.
Actuator
EUR263,90
Issendorff Switching and LCN-SH dimming module for the top-hat rail
Dimming actuator
6. Issendorff Relay module with LCN-R2H 2 changeover switches 16A incl. power supply
The LCN-R2H relay module from Issendorff is a powerful solution for controlling electrical consumers. It features two independent relays with a maximum switching capacity of 16A at 230V, making it suitable for various applications in media technology and automation. The potential-free switching contacts are optimized for high inrush currents, ensuring reliable functionality. The module can be easily expanded with a second LCN-R2H to increase the number of switching outputs to up to four. Installation is done via intelligent LCN bus modules, allowing for seamless integration into existing systems. This module is ideal for controlling blinds, shutters, or other electrical devices, providing a flexible solution for modern smart home applications.
- Two independent relays for flexible control
- Maximum switching capacity of 16A at 230V
- Expandable by connecting a second module
- Optimized contacts for high inrush currents.
Actuator
EUR78,03
Issendorff Relay module with LCN-R2H 2 changeover switches 16A incl. power supply
Switch actuator
