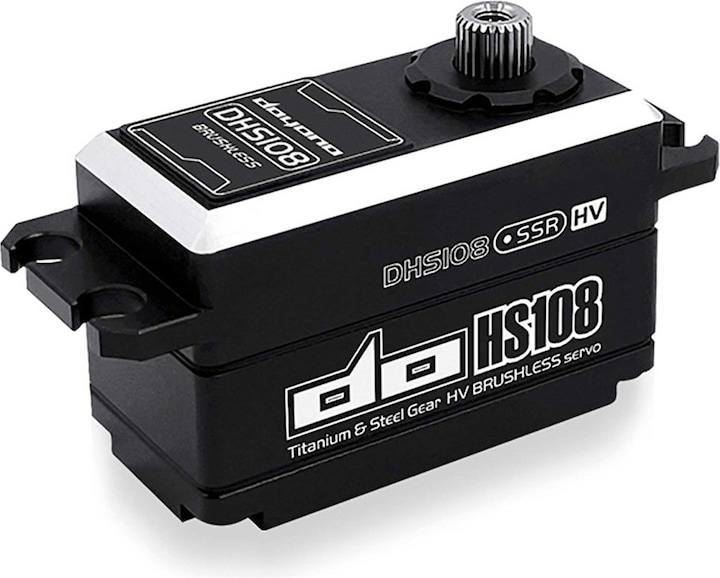

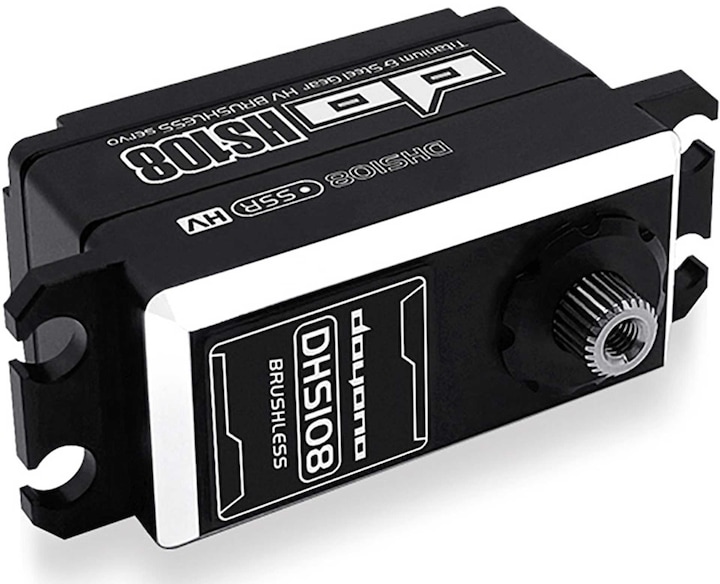

Doyono offers high-quality servos at an affordable price. This powerful high-voltage servo, with up to 20 kg/cm for brushless motors, features a titanium-steel gear and a weatherproof aluminum housing. This ensures optimal performance and a lot of enjoyment while driving.

Features:

• High-voltage servo
• Durable titanium and steel gear
• Lightweight aluminum housing
• Highly weather-resistant
• Operating voltage: 6.0-8.4V
• 2 µs dead band, 1520 µs neutral point
• 180 mm cable length

Technical Specifications:

• Voltage: 6.0V - 8.4V
• Response speed: 0.077 sec - 0.055 sec
• Torque: 14.0 kg/cm - 20.0 kg/cm
• Motor: Brushless
• Gear: Titanium / Steel
• Ball bearings: Yes, dual
• Travel: approx. 130° (at 800: 2200 µs)
• Idle current: 4 mA @ 6.0V
• Rated current: 0.2A @ 6.0V
• Stall current: 2.6A @ 6.0V
• Dimensions: 41.0 x 20.0 x 26.3 mm
• Weight: 55.0 g
• Teeth: 25T DHS108.
