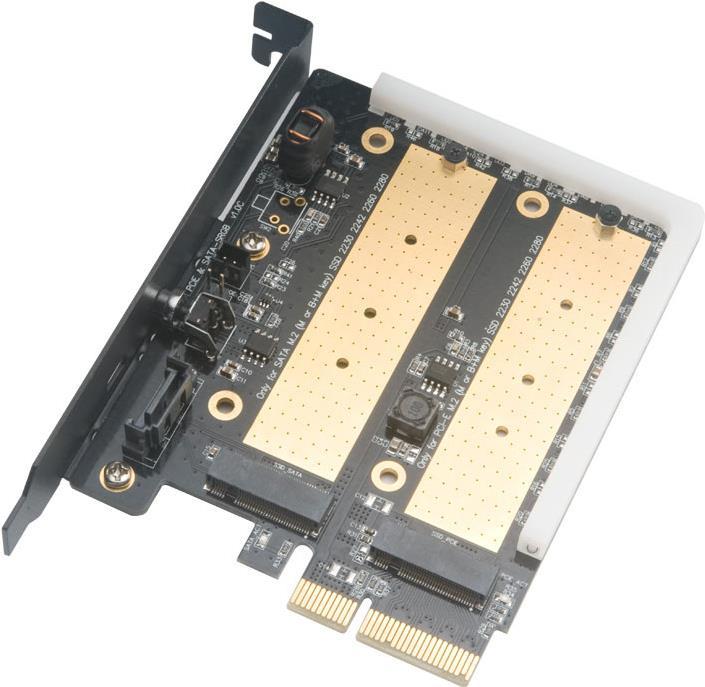

The Akasa M.2 PCI-E SATA RGB LED adapter card allows for the operation of two M.2 SSDs in a PCIe x4 slot. The card features two M.2 slots, one of which is connected via PCI-Express with four lanes and is intended for NVMe SSDs, while the other M.2 slot can accommodate a SATA SSD.

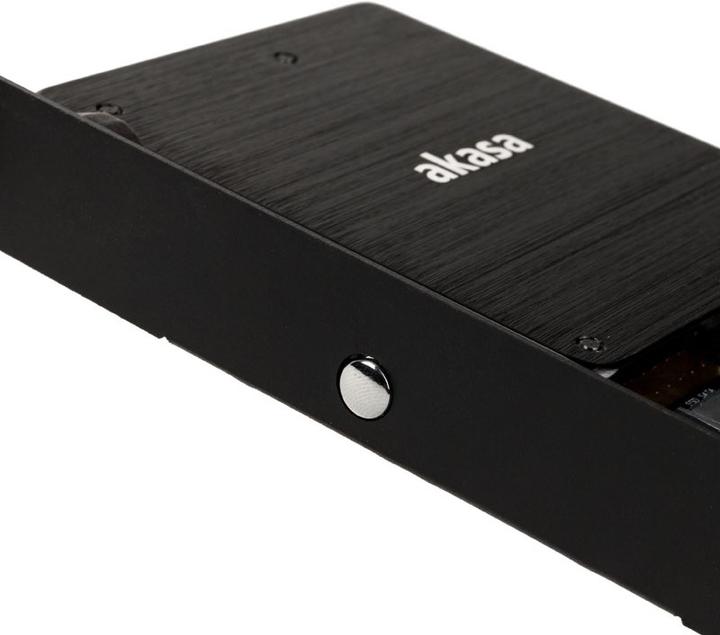

The two M.2 slots allow for the installation of SSDs up to 80 millimeters in length (2280). These SSDs are inserted into the designated slots and secured with screws. Subsequently, thermal pads included in the package are applied, and the heatsink is placed on top. This heatsink provides passive cooling for the memory chips and is equipped with RGB LED lighting.

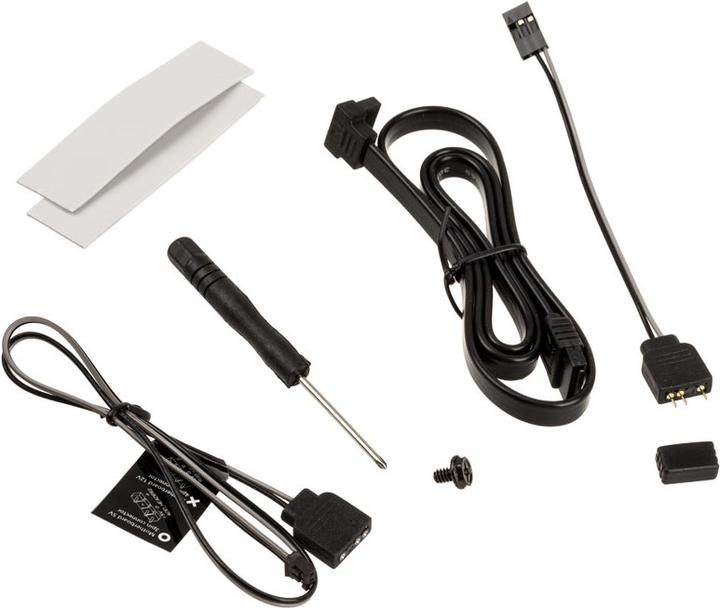

The RGB LED lighting is digitally addressable and connects to compatible motherboards via a 3-pin connector (5VDG) with RGB headers. Corresponding cables are included with the adapter card.

Technical details:

• Dimensions:
• SSD support:

1x M.2 (M-Key / B+M-Key, PCIe 3.0 x4, sizes 2280 / 2260 / 2242 / 2230)
1x M.2 (M-Key / B+M-Key, SATA 6G, sizes 2280 / 2260 / 2242 / 2230)

• Slot: 1x PCIe x4 / x8 / x16 (PCIe 3.0)
• Connections:

1x SATA 6G
1x 3-Pin RGB (5VDG)

• LED lighting: RGB (16.7 million colors, digitally addressable)

Compatibility: ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome Sync.
