Design with 10 Power Phases
Equipped with robust components that ensure an absolutely smooth power supply for the CPU. It also offers unparalleled overclocking capabilities and enhanced performance at the lowest temperatures, even for advanced gamers.
Take Control of Your Lighting - Polychrome RGB
This motherboard features onboard RGB headers and an addressable RGB header, allowing compatible LED devices such as strips, CPU coolers, cases, and more to be connected to the motherboard. Users can also synchronize their Polychrome RGB certified LED devices to create unique lighting effects.
Dual M.2 for SSDs
Two of the world's fastest M.2 slots. One offers PCIe Gen3 x4 transfer rates of up to 32 Gb/s, while the other connection supports SATA3 mode with up to 6 Gb/s.
Dual USB 3.2 Gen2 (Type-A + Type-C)
A pair onboard.
Processor family | AMD 2000 Series |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Item number | 17243817 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBEG0-A0UAYZ |
Release date | 16/10/2021 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | Clear CMOS Button, Trusted Platform Module |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | AMD 2000 Series |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

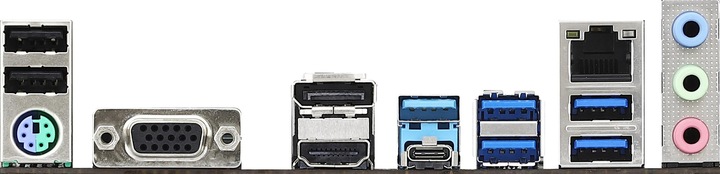

Video connections | DisplayPort, HDMI Type A |
Video connection version | HDMI 1.4 |
Multi-GPU technology | AMD Quad-GPU CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC892, Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphones |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x), PCI Express x16 (2x) |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 244 mm |
Weight | 800 g |
Length | 29.20 cm |
Width | 27 cm |
Height | 6.40 cm |
Weight | 1.15 kg |
