ASUS ROG Strix B550-F Gaming Wifi II
AM4, AMD B550, ATXPrice in EUR including VAT, free shipping
Product details

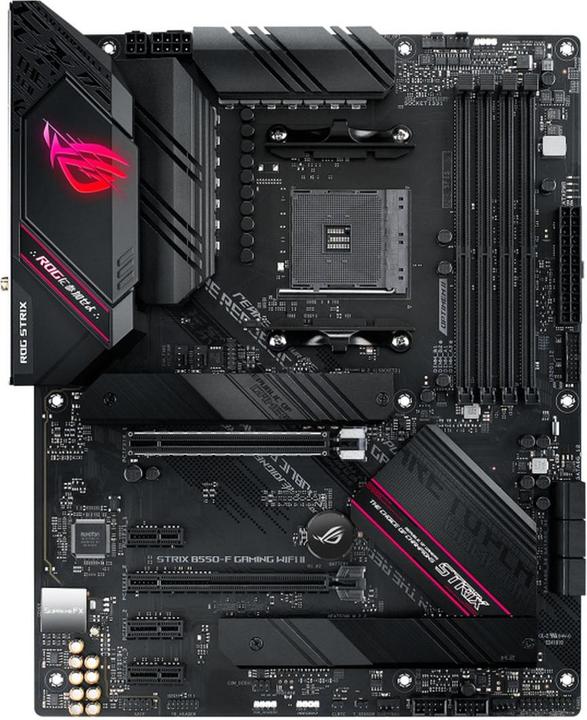

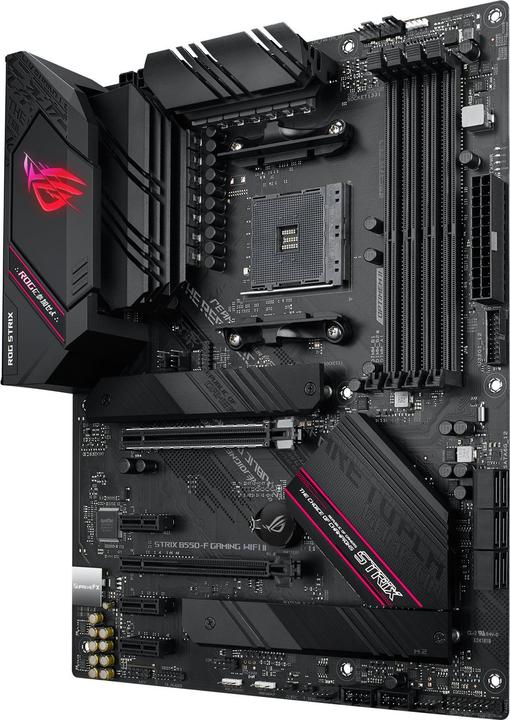

The ASUS ROG Strix B550-F Gaming WIFI II is based on the AMD B550 chipset and supports AMD processors for socket AM4. It has four DDR4 slots for up to 128 GB of RAM.
Other features of the ASUS ROG Strix B550-F Gaming include one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot and three PCIe 3.0 x1 slots. In addition, the ASUS ROG Strix B550-F Gaming WIFI II has 8-channel sound, a 2.5 Gigabit LAN interface, Wi-Fi 6, six SATA3 ports, two M.2 ports and a number of USB interfaces.
| Processor family | Ryzen 3rd generation, Ryzen 5 3rd Gen, Ryzen 9 3rd Gen |
| Memory type | DDR4-RAM |
| Internal connection options | M.2 (2x), S-ATA III (6x) |
| Wireless transmission | Bluetooth, Wi-Fi |
| Peripheral connections | USB 2.0 Type-A (4x), USB 3.1 Gen 2 Type-A (1x), USB 3.2 Gen 1 (6x), USB 3.2 Gen 2 (2x) |
| Item number | 17442536 |
| Manufacturer | |
| Category | |
| Manufacturer no. | 90MB19V0-M0EAY0 |
| Release date | 11/9/2021 |
| Sales rank in Category Motherboards | |
| Maximum order quantity | 7 |
| Form factor | ATX |
| Processor socket | AM4 |
| Chipset | AMD B550 |
| Mainboard features | Clear CMOS Button |
| Operating system compatibility | Windows 10 Home, Windows 10 Pro, Windows 11 Home, Windows 11 Pro |
| Peripheral connections | USB 2.0 Type-A (4x), USB 3.1 Gen 2 Type-A (1x), USB 3.2 Gen 1 (6x), USB 3.2 Gen 2 (2x) |
| BIOS type | UEFI AMI |
| Wireless transmission | Bluetooth, Wi-Fi |
| Wi-Fi standard | Wi-Fi 6 / 802.11ax |
| Processor family | Ryzen 3rd generation, Ryzen 5 3rd Gen, Ryzen 9 3rd Gen |
| Memory form factor | DIMM |
| Number of pins | 288 x |
| Number of memory modules (RAM) | 4 x |
| Max. memory (RAM) | 128 GB |
| Memory chip | DDR4 RAM |
| Max. RAM OC | 5100 MHz |
| Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 4000 MHz |
| Memory type | DDR4-RAM |
| Video connections | DisplayPort (1x), HDMI (1x) |
| Video connection version | HDMI 2.1 |
| Multi-GPU technology | AMD 2-Way CrossFireX |
| Network connections | RJ45 Gigabit Ethernet (1x) |
| Ethernet controller brand | Intel |
| Ethernet controller | Intel I225-V |
| Max. port speed | 2.50 Gbit/s |
| Chip | Realtek ALC892 |
| Audio channel | 7.1 Channel |
| Audio Connections | Audio In |
| Internal connection options | M.2 (2x), S-ATA III (6x) |
| Expansion slot | PCI Express x1 (3x), PCI Express x16 (2x) |
| PCI express version (max.) | 4 |
| Number of fan connector | 3 |
| Power connectors | 24-pin ATX, 8-pin PCI-E |
| Country of origin | China |
| Sustainability | Sustainable products and raw materials |
| Label | SBTi |
| Scope of delivery | Sata Cables |
| Length | 244 mm |
| Width | 305 mm |
| Height | 68 mm |
| Weight | 945 g |
| Length | 34.90 cm |
| Width | 28.70 cm |
| Height | 7.40 cm |
| Weight | 1.77 kg |
