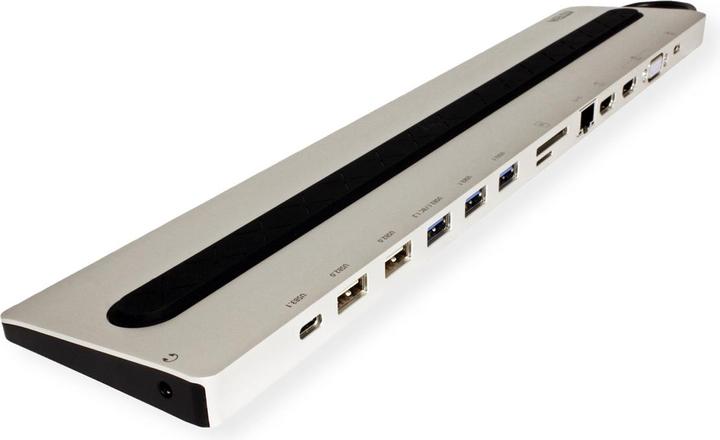

Short Info: ATEN UH3237 - Docking Station - USB-C 3.1 Gen 1 / Thunderbolt 3 - VGA, 2 x HDMI - GigE Group Connection Expansion

Manufacturer: ATEN
Manufacturer Part No.: UH3237
Model: UH3237
EAN/UPC: 4719264648960

Product Description: ATEN UH3237 - Docking Station - VGA, 2 x HDMI

Product Type: Docking Station
Docking Interface: USB-C 3.1 Gen 1 / Thunderbolt 3
Video Interfaces: VGA, 2 x HDMI
Dimensions (Width x Depth x Height): 7.5 cm x 35.03 cm x 1.48 cm
Weight: 370 g
Color: Black and Gold
Audio Output: Headset - Stereo
Network: Gigabit Ethernet

Detailed Information:
General
Product Type: Docking Station
Width: 7.5 cm
Depth: 35.03 cm
Height: 1.48 cm
Weight: 370 g
Color: Black and Gold

Video
Max Resolution Details: 3840 x 2160 - 30 Hz (only HDMI1), 1920 x 1080 - 60 Hz (only VGA), 1920 x 1080 - 60 Hz (HDMI1 and HDMI2 simultaneously)

Audio
Audio Output: Headset
Sound Mode: Stereo

Network
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion/Connectivity
Expansion Slots: 1 (total)/ 1 (free) x SD memory card, 1 (total)/ 1 (free) x microSD

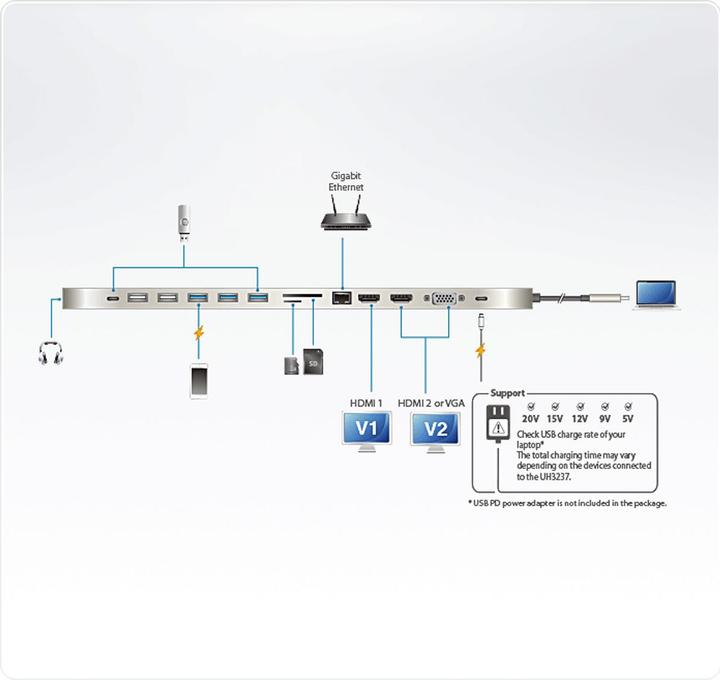

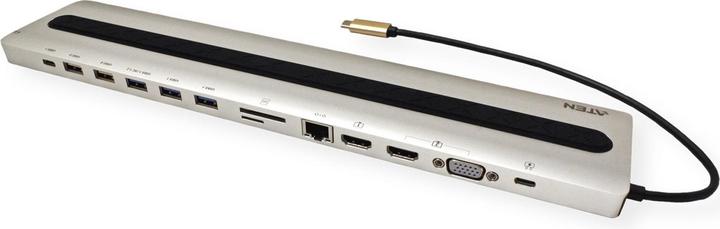

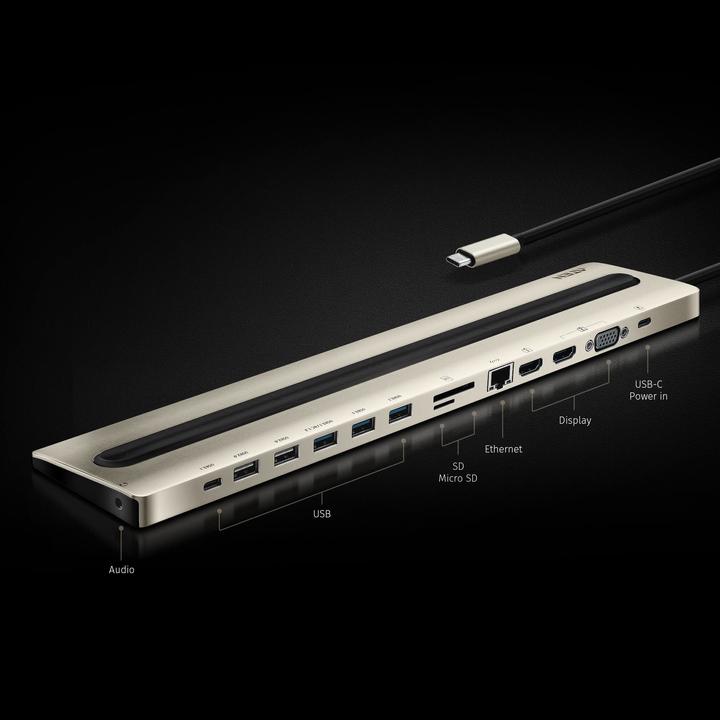

Interfaces:
2 x Audio / Video - HDMI - 19-pin HDMI Type A
1 x Video - VGA - 15-pin HD D-Sub (HD-15)
3 x USB 3.1 Gen 1 - 9-pin USB Type A
1 x Network - RJ-45
1 x USB-C with Power Delivery (85 W) - 24-pin USB-C
2 x USB 2.0 - 4-pin USB Type A
1 x USB-C 3.1 Gen 1 (data only) - 24-pin USB-C
1 x Headphone/Microphone Combo Jack - mini-phone 3.5 mm 4-pole

Miscellaneous
Included Cables: 1 x USB-C Cable - integrated - 30 cm

Performance Features: 4K Ultra HD, DisplayPort Alt Mode, ultra-thin, USB port with PassThrough, aluminum surface, plastic bottom, for notebooks from 33.00 cm (13") to 38.10 cm (15")

Certification: RoHS

System Requirements
Required Operating System: Apple MacOS 10.12 Sierra or later, Windows 10 or later, Apple iOS 12.1 or higher, Apple iPadOS 13 or higher

Environmental Conditions
Min. Operating Temperature: 0 °C
Max. Operating Temperature: 40 °C.
