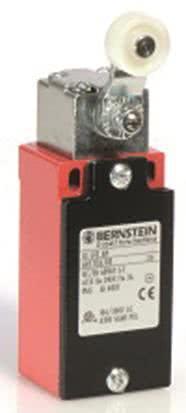

Bernstein Limit Switch GC-SU1Z AH

Manufacturer: Bernstein
Designation: Limit Switch
Type: GC-SU1Z AH
Sensor Width: 36 mm
Sensor Height: 33 mm
Sensor Length: 118.5 mm
Rated Operating Current Ie at AC-15, 230 V: 3 A
Switching Function: Snap Action
Electronic Output: No
Forced Opening: Yes
Number of Contacts as Normally Open: 1
Number of Contacts as Normally Closed: 1
Interface Design: None
Interface Design for Safety-Related Communication: None
Housing Design: Rectangular
Housing Material: Metal
Actuator Design: Pivot Lever
Actuator Orientation: Other
Electrical Connection Design: Cable Entry (Metric)
With Status Indicator: No
Suitable for Safety Functions: Yes
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: None
Ambient Temperature During Operation: -30..80 °C
Protection Class (IP): IP65

Bernstein Limit Switch GC-SU1Z AH: Additional Details
Metal-encapsulated limit switch that, due to its compact design, is suitable for almost any application in the field of safety applications and position detection. The switch offers various mounting advantages: e.g., screw connections with self-lifting clamping discs, captive cover screws, and a switching system that can be easily replaced through a snap-in mechanism. Optional versions with custom cables and connectors are also available.
EAN: 4024337005107.
