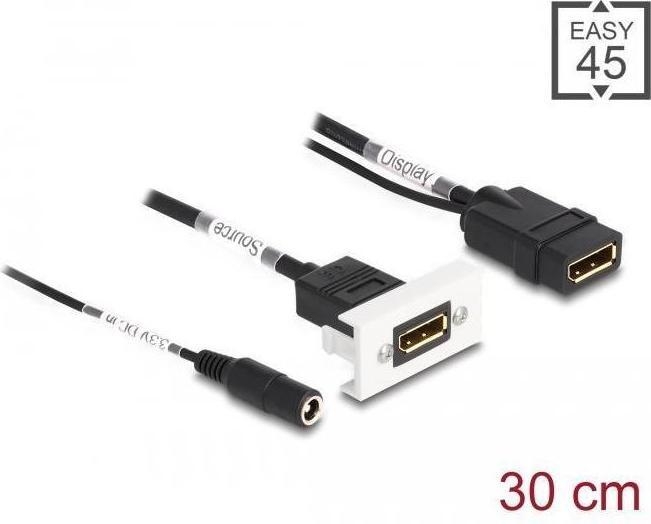

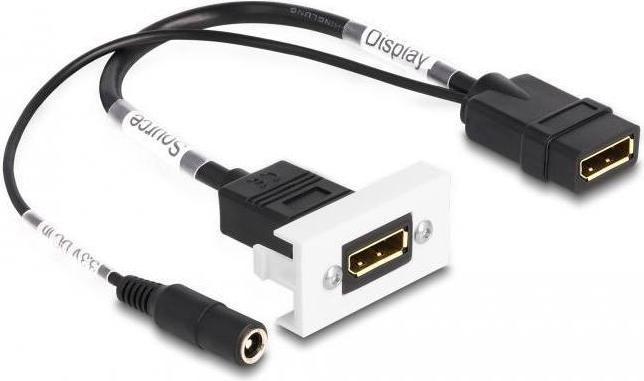

This Easy 45 module from Delock provides a DisplayPort socket. The additional DC socket allows for power input, ensuring a constant power supply when using active adapters. Thanks to the simple snap-in mechanism, the panel sits securely in place and can be easily replaced without any tools when needed.

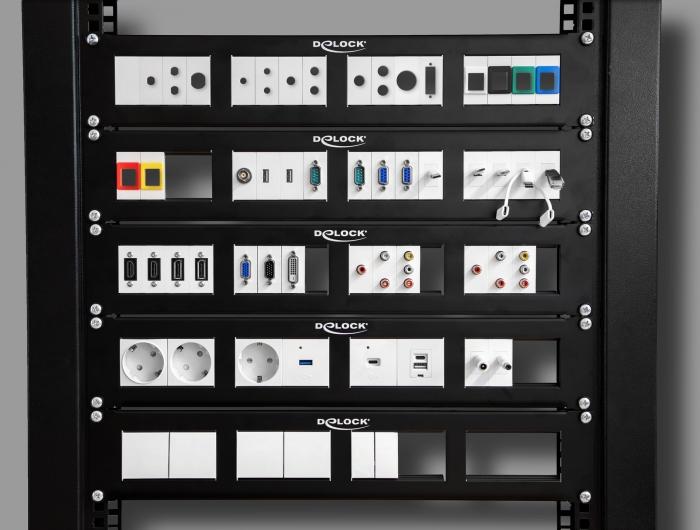

Easy 45 is a versatile, modular system that enables users to assemble components such as sockets, HDMI, or USB connections according to their needs. The Easy 45 modules are standardized and can be mounted in various module carriers or desktop channels. Easy 45 serves as the interface between electrical, network, and system installations and numerous peripheral devices, such as TVs, monitors, printers, laptops, and more.

Note: When power is supplied through the DC socket, the signal can only be transmitted in one direction. Without external power supply, the module can be used bidirectionally.

Specifications

• Connections: 1 x DisplayPort socket, 1 x DisplayPort socket + 1 x 3.3 V DC power socket 2.1 x 5.5 mm
• Resolution up to 3840 x 2160 @ 60 Hz (dependent on system and connected hardware)
• Supports HDCP 2.2 (High-Bandwidth Digital Content Protection)
• Supports HDR
• Input voltage: 3.3 V
• Material: PC plastic
• Cable length: approx. 30 cm
• Suitable for Delock Easy 45 module carriers
• Suitable for 45 mm desktop channels with a minimum installation depth of 45 mm
• Module size: 22.5 x 45 mm
• Dimensions (LxWxH): approx. 22.5 x 45.0 x 38.5 mm
• Color: white / black

System Requirements

• An available module slot in Delock Easy 45

Package Contents

• Easy 45 DisplayPort module.
