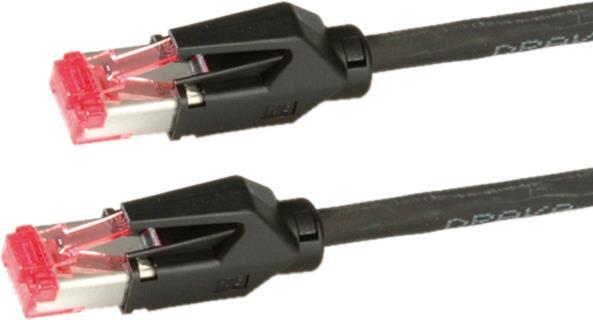

DRAKA UC600 SS27: High-quality flexible patch cable with special shielding for applications up to 250 MHz. Equipped with shielded HiRose TM21 RJ-45 connectors and strain relief boot. Contact assignment: 8 conductors 1:1. Construction: Cable type S/STP (PiMF cable). Impedance: 100 Ohm. Inner conductor: 8 conductors AWG 27/7 tinned copper stranded wire. Outer diameter: 5.9 mm. Reference color code: wsgn/gn, wsor/or, bl/wsbl, wsbr/br. Overall shielding: tinned copper braid. Note: Cable is halogen-free.

We recommend using the following components for structured cabling: DRAKA UC600 4P installation cable, TELEGÄRTNER AMJ45 8/8 UP/50 connection sockets, TELEGÄRTNER 19-panel MPP24-HS, and DRAKA UC600 S/FTP patch cable with HiRose TM21 connectors. This product combination has been tested at DRAKA's testing laboratory according to Class E in a 100 m channel.

Technical data:
Manufacturer: DRAKA HOLDING
Manufacturer number: 21.05.2050
Product group: Twisted Pair Cables
Product type: Patch cable
Freight item: no

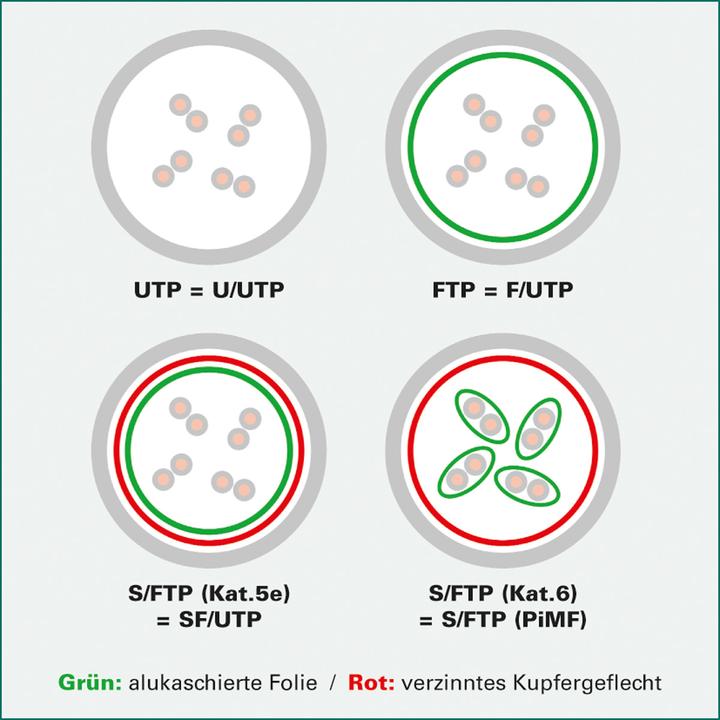

Shielding type: PiMF
Transmission quality: Cat6 / Class E
Impedance: 100 Ohm
Number of conductors: 8
Conductor cross-section (AWG): AWG 27
Conductor type: Stranded wire
Length: 5.0 m
Color (cable): gray
Color (boot): black
Outer diameter of cable: 5.7 mm
Cable halogen-free: yes
Connector type: RJ45 HiRose TM21
Gross weight: 0.181 kg including packaging.
