Top speed all the way into the connector - Don't let slow components slow you down. Now you can be on the road with 10 Gigabit Ethernet from start to finish! Here are the real Cat.6A patch cables with components that all meet Cat.6A requirements even individually and allow transmissions up to 500 MHz.

DRAKA UC900 SS27: High-quality flexible patch cable for applications up to at least 500 MHz.

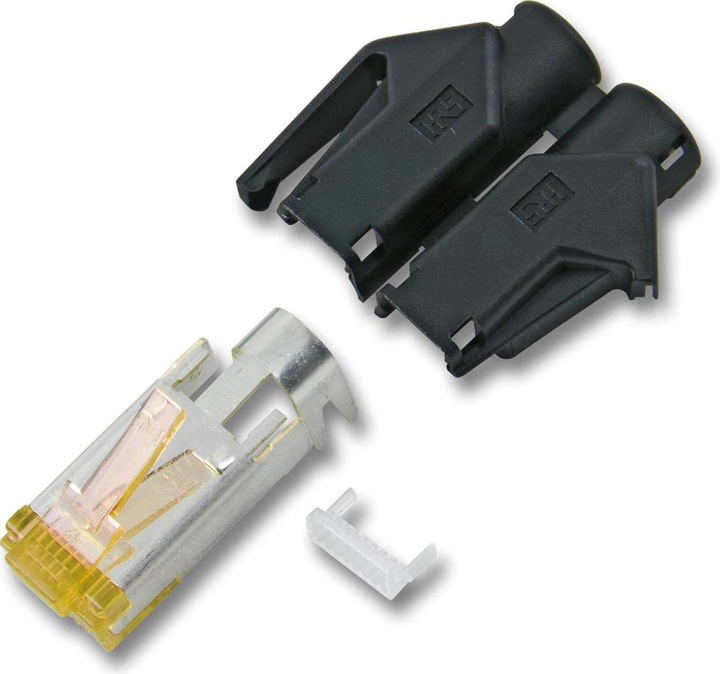

HIROSE TM31: Especially high-quality RJ-45 connector - the only one that meets de-embedded Cat.6A requirements!

Construction:

• Cable type: S/FTP (PiMF cable)
• Impedance: 100 Ohm
• Inner conductor: 8 cores AWG 27/7 copper strand
• Outer diameter: 5.9 mm
• Reference pair shielding: aluminum-coated plastic foil
• Overall shielding: copper braided shield tinned
• Contact assignment: 8 cores 1:1

Main features:

• Cable length: 2 m
• Cable standard: Cat6a
• Cable class: Ea
• Connector 1: RJ-45
• Connector 2: RJ-45
• Gender: Male/Male
• Cable shielding: S/FTP (S-STP)

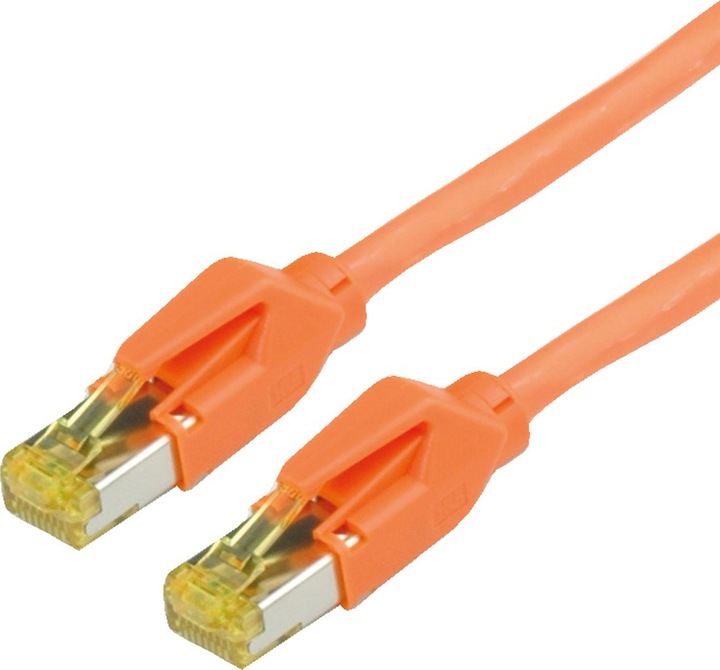

• Product color: Orange
• Synchronization input impedance.
