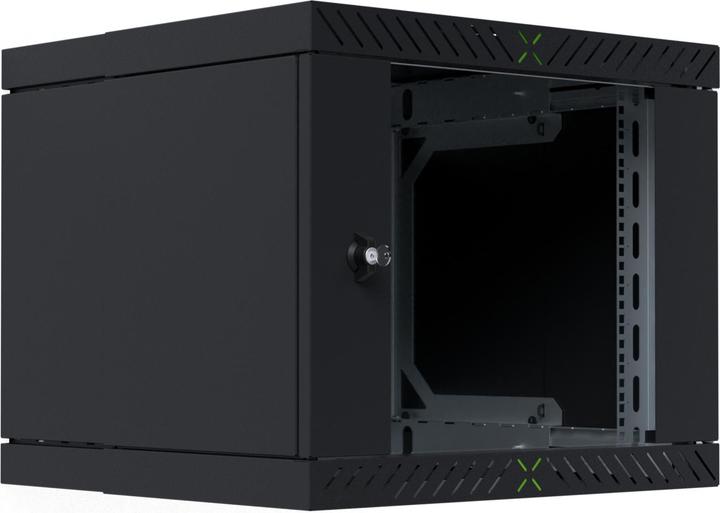

EFB Elektronik EFB 19inch 48.26cm wall-mounted housing X-Rack with glass door 400-600mm 9U black RAL9005
9 RU, 19 inch rackOnly 4 pieces in stock at supplier
Colour2
Product details

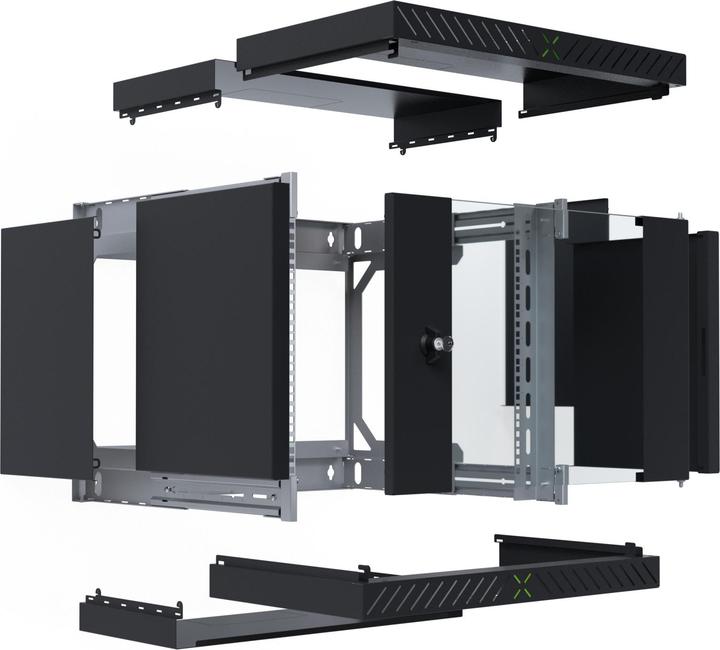

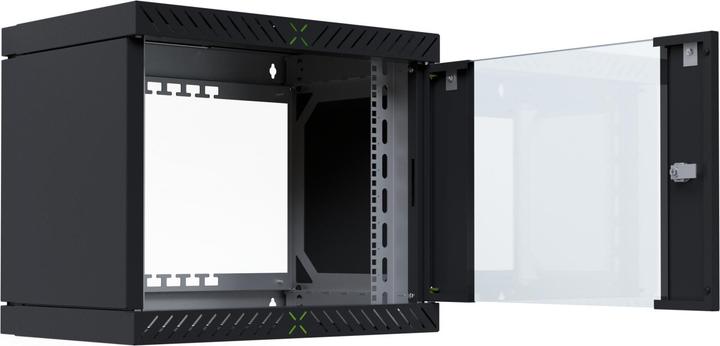

Steel sheet housing with swiveling frame, self-ventilated, not pre-assembled. Housing continuously depth adjustable from 400 to 600 mm. Secured side walls can only be removed after opening the front door. Inside, there are two 19" profiles, additionally depth-adjustable by 50 mm. The front door features a window made of certified safety glass (4 mm) and latch locking. The door stop is changeable due to stable, spring-loaded metal hinges. The door angle is adjustable because of adjustable hinges, with a door opening angle of 120°. The roof and bottom have pre-punched openings for cable entry (190 x 90 mm). The rear side has an open frame with additional positions for cable management. The roof and bottom are prepared for the accommodation of a single fan. Cabinet parts inside are completely grounded, with an M5 grounding bolt at the base frame. Maximum load is 60 kg (statically equally distributed), with a protection degree of IP20. The paint finish is RAL7035 in light grey and RAL9005 in jet black. Scope of delivery includes two keys and an earthing cable. Delivery is unassembled in transport packaging (three packages: rear frame, outer parts, and front door).
Type | Cabinet |
Usable installation depth | 600 mm |
Protection type (IP code) | IP20 |
Ventilation | Passive |
Server cabinet features | Door, Lockable |
Item number | 59125367 |
Manufacturer | EFB Elektronik |
Category | Server cabinets |
Manufacturer no. | WGX-0906TS.G1 |
Release date | 4/6/2025 |
Colour | Black |
Exact colour description | Black, RAL9005 |
Material group | Glass, Metal |
Material | Glass, Steel |
Type | Cabinet |
Rack size | 19 inch rack |
Form factor size | 9 RU |
Usable installation depth | 600 mm |
Max. weight | 60 kg |
Protection type (IP code) | IP20 |
Ventilation | Passive |
Server cabinet features | Door, Lockable |
Country of origin | China, Turkey |
CO₂ emissions | 1,98 kg |
Climate contribution | EUR 0,12 |
Scope of delivery | an earthing cable, Two keys |
Height | 500 mm |
Width | 600 mm |
Length | 600 mm |
Weight | 21 kg |
