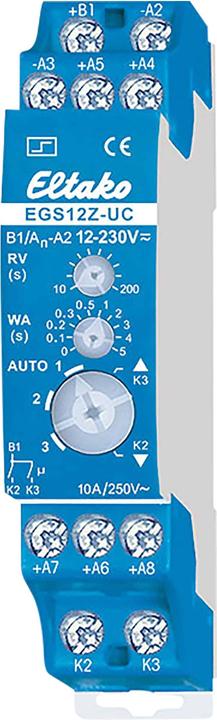

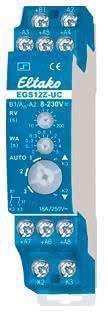

Eltako Pulse Group Switch EGS12Z-UC

Manufacturer: Eltako
Designation: Pulse Group Switch 1+1S 16A
Type: EGS12Z-UC
Function: Electronic group switch
Mounting type: DIN rail
Width in modular units: 1
Installation depth: 58 mm
Number of contacts as normally open: 2
Control voltage 1: 8..230 V
Control voltage type 1: AC/DC
Frequency of control voltage 1: 50 Hz
Rated switching current: 16 A
Supply voltage: 8..230 V
Voltage type of supply voltage: AC/DC
Max. switching current (cos phi: 0.6): 2 A
Suitable for manual operation: no

The EGS12Z-UC pulse group switch is an actuator for the central control of a motor or for motor relays. The standby loss is only 0.05 to 0.4 watts. This pulse group switch implements the commands from sensor relays or from switches and push buttons, and switches a motor, motor isolation relay MTR12-UC, or DC motor relay depending on the setting of the rotary switches on the front panel.

The control voltage at terminals A3 to A8 must have the same potential as the supply voltage. The operating principle of this pulse group switch allows for impulse control of up, hold, down, hold (Contact 1 closed - both contacts open - Contact 2 closed - both contacts open). Additional control inputs can specifically choose up or down. Dynamic control inputs require a pulse of at least 20 ms to close a contact. Static control inputs close the contact only as long as the control command is present. The terms up and down apply to roller shutters, blinds, and shades.

EAN: 4010312107737.
