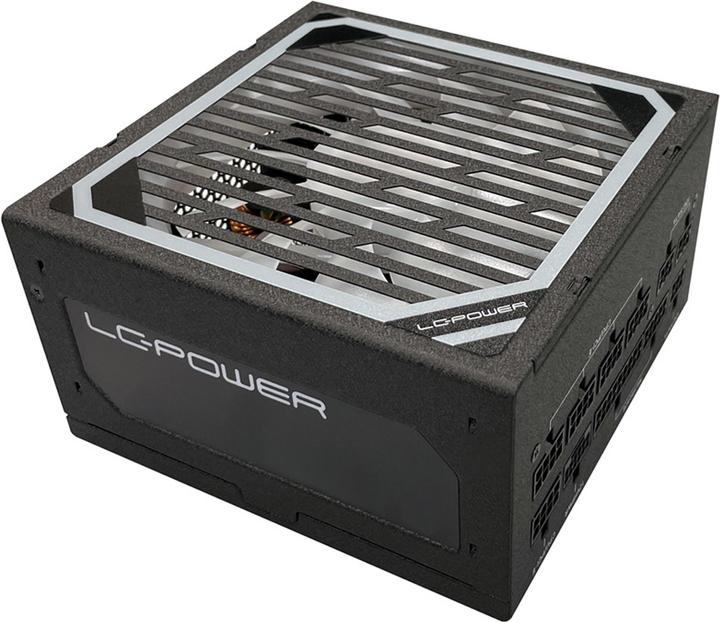

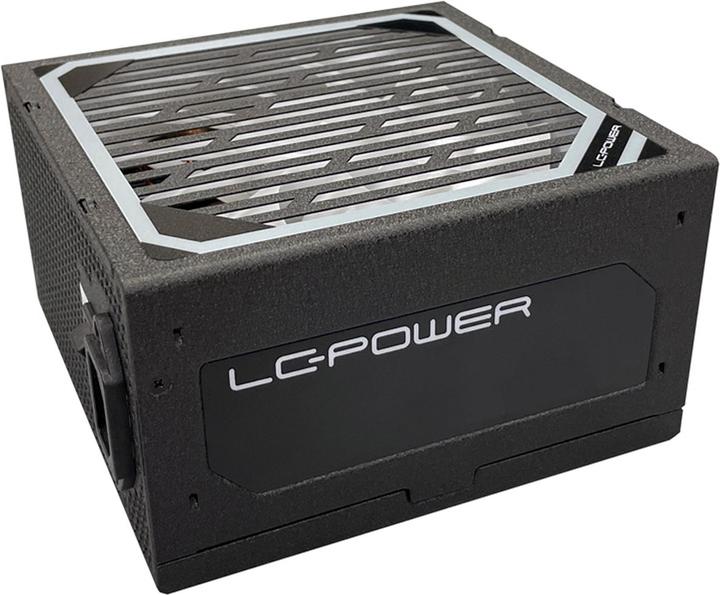

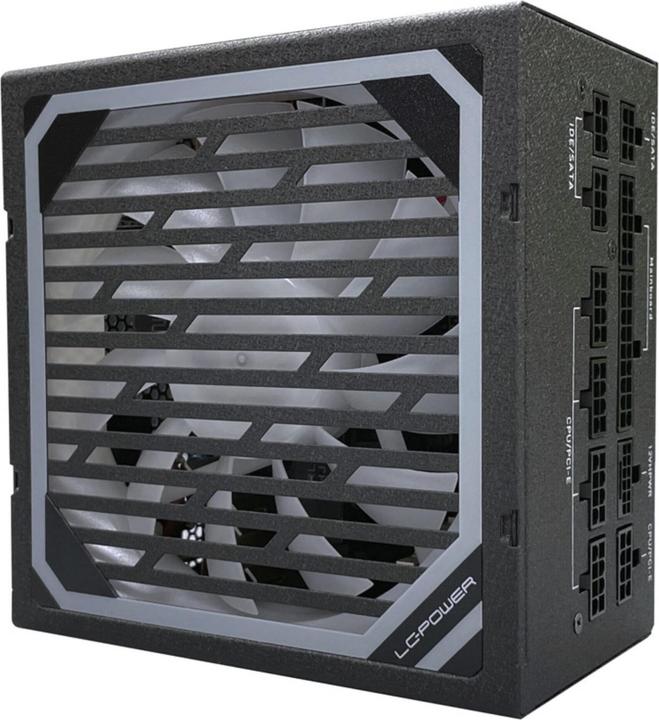

The LC6750M V3.0 is an 80 PLUS Gold-certified, fully modular ATX power supply that ensures high performance and stability in your system.

• ATX form factor
• Total power: 750 W

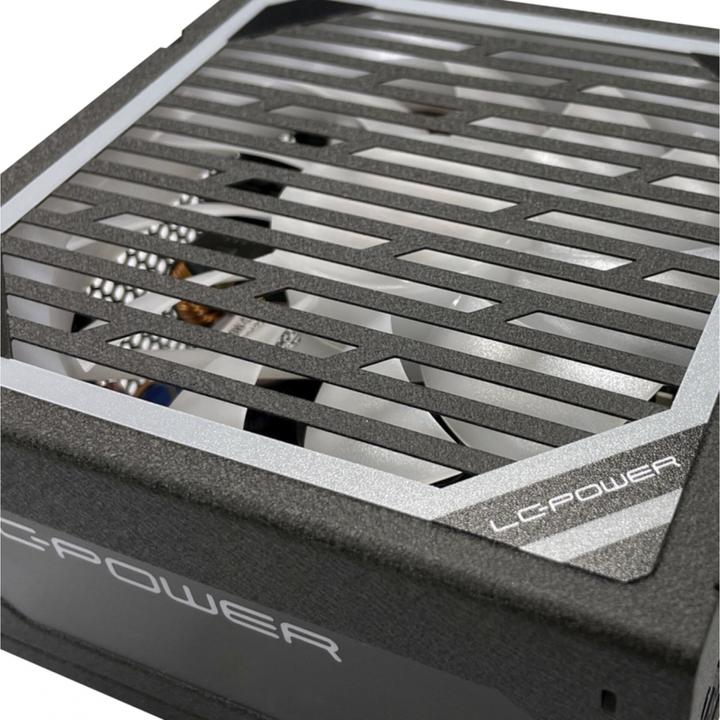

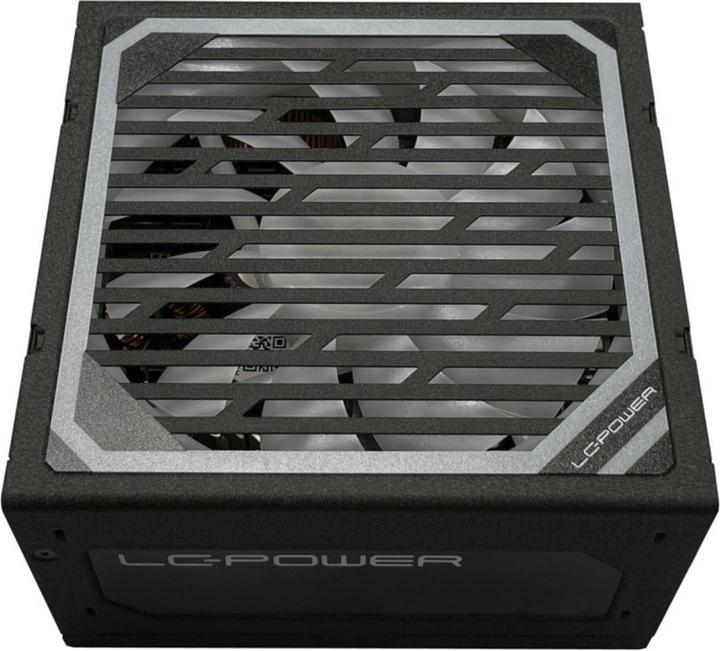

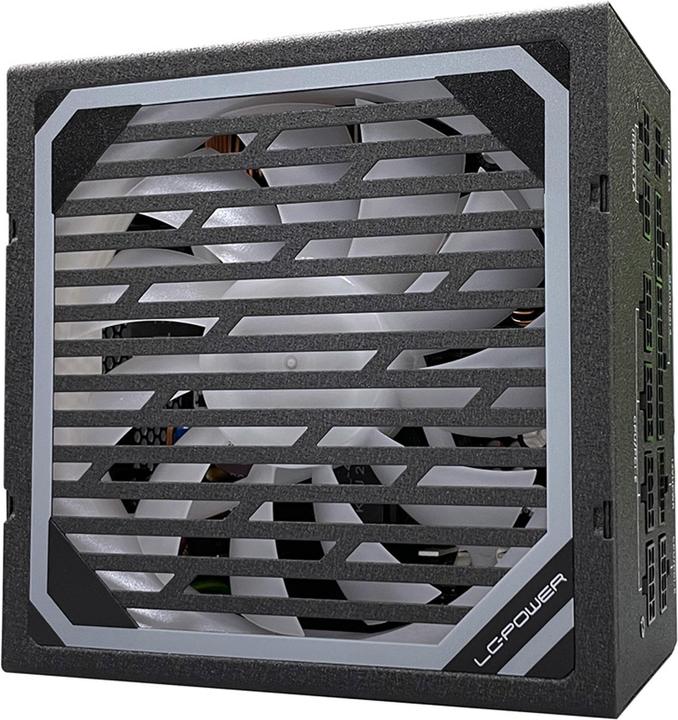

• 135 mm fan

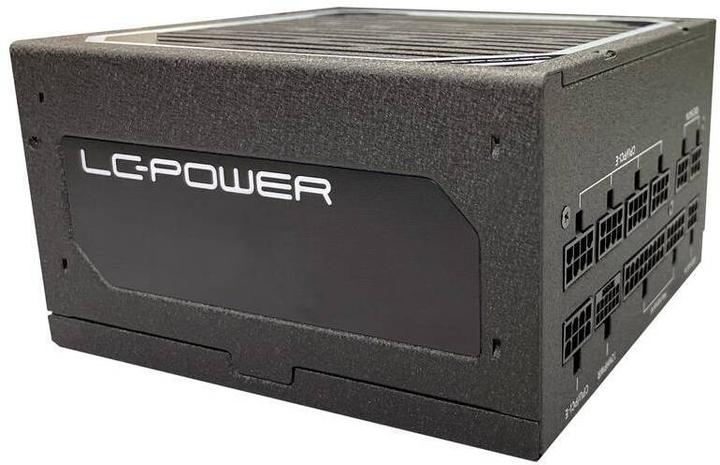

• Fully modular cable management
• Black sleeved cables
• High efficiency of up to 90%
• Full range: 100 - 240 V AC input voltage
• DC-to-DC technology
• Powerful +12 V rail (62.4 A)
• 4x PCI-Express 6+2-pin
• 1x PCI-Express 5.0 12+4-pin
• Power supply series: Super Silent Modular
• ATX standard: ATX V3.0

Connections:

• 20+4-pin motherboard (1x 650 mm)
• 4+4-pin motherboard 12 V (8-pin EPS) (2x 650 mm)
• 4-pin motherboard 12 V (1x 800 mm)

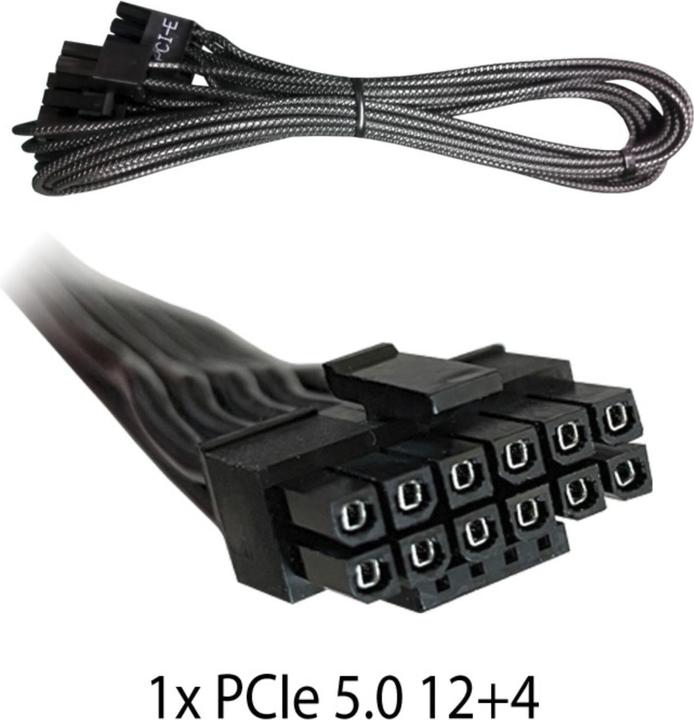

• PCI-Express 5.0 12+4-pin (1x 600 mm)
• PCI-Express 6+2-pin (4x total 2x 675 mm / 2x 750 mm)
• SATA (10x total 3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm)
• PATA (5x total 1x 350 mm / 2x 500 mm / 1x 650 mm / 1x 800 mm)

Connection options SATA & PATA:

• 10x SATA & 0x PATA
• 8x SATA & 3x PATA
• 4x SATA & 5x PATA

FDD: -
PFC: active

Power supply dimensions: 86 x 150 x 151 mm
Packaging dimensions: 115 x 275 x 200 mm
Weight (product / total): 2.52 / 2.83 kg

Voltages / max. currents:

• +3.3 V / 20.0 A - +5.0 V / 20.0 A, max. combined 100.0 W
• +12.0 V / 62.4 A, max. combined 748.8 W

Standby consumption
Temperature-dependent control for case fans

Safety circuits:

• OVP = Over Voltage Protection
• OCP = Over Current Protection
• OPP = Over Power Protection
• SCP = Short Circuit Protection
• UVP = Under Voltage Protection

Color: black hammer finish
Height of packaging: 0.205 m
Packaging volume: 0.0065 m³
Output voltage: 3.3 - 12.0 V
Length of packaging: 0.275 m
Width of packaging: 0.115 m
Manufacturer No.: LC6750M V3.0
EAN Code: 4262443280289
Weight: 2.824 kg
Country of origin: China
Manufacturer: LC-Power
Color: Black
Max output power: 750 W.
