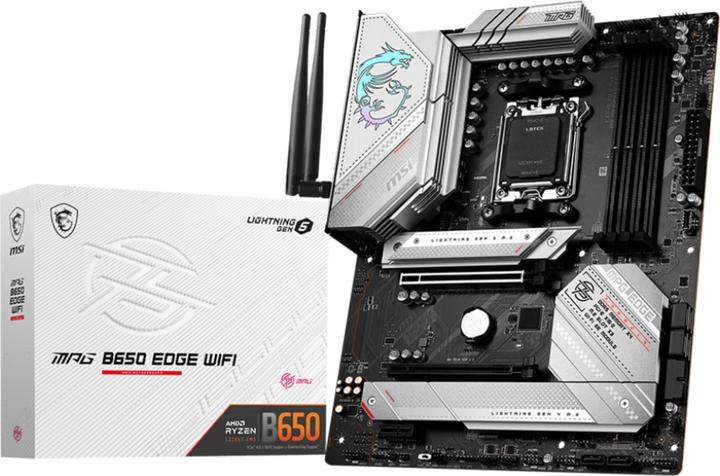

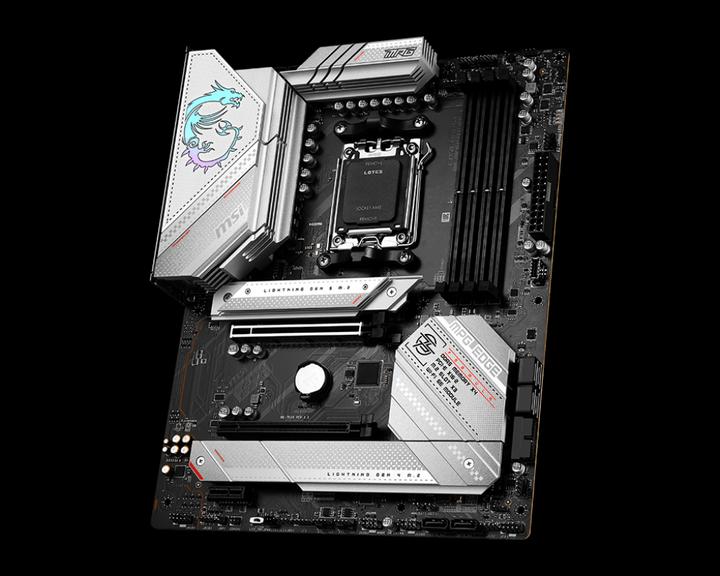

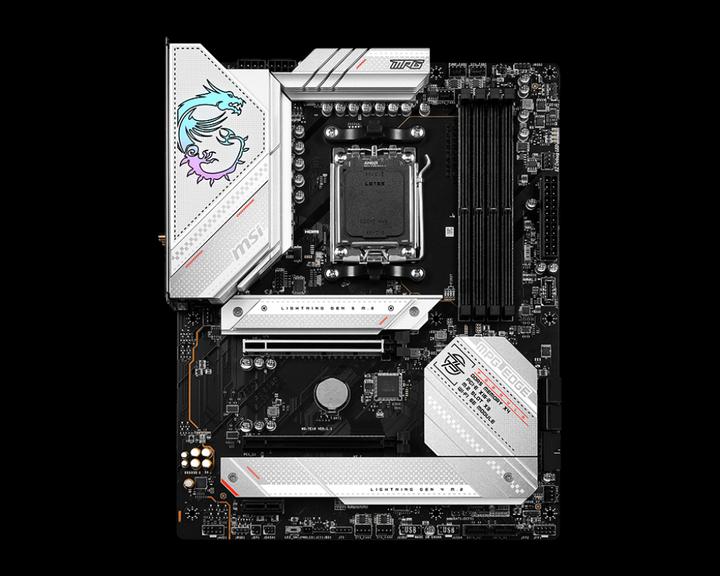

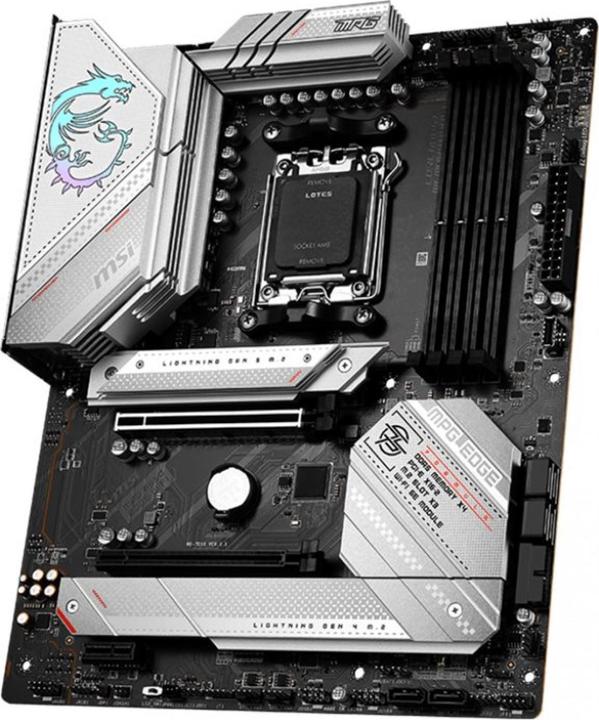

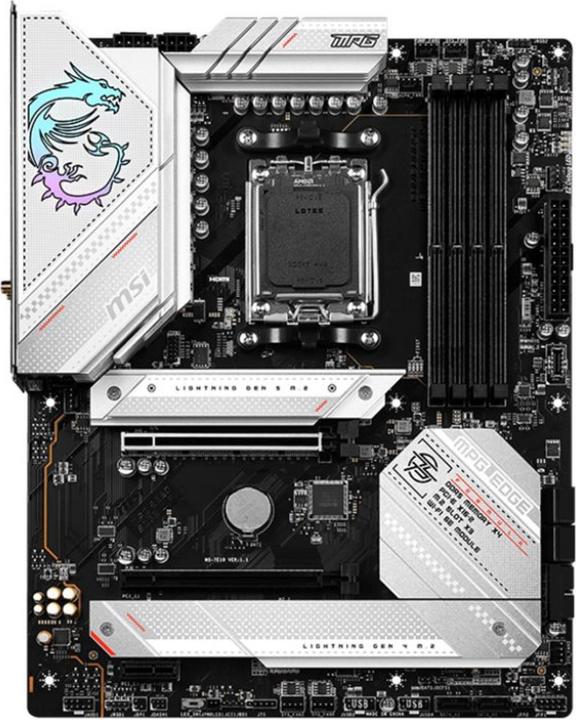

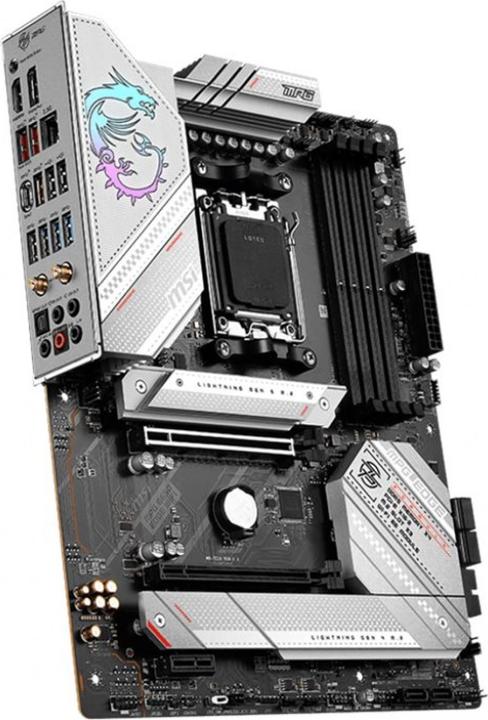

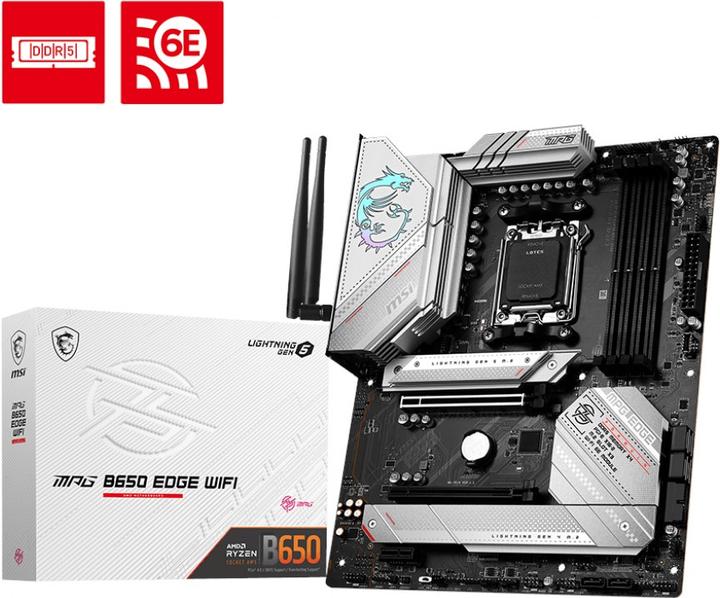

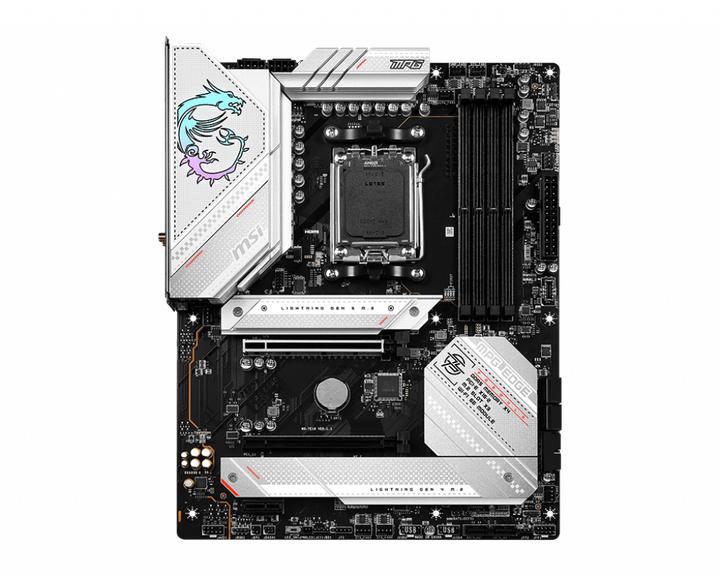

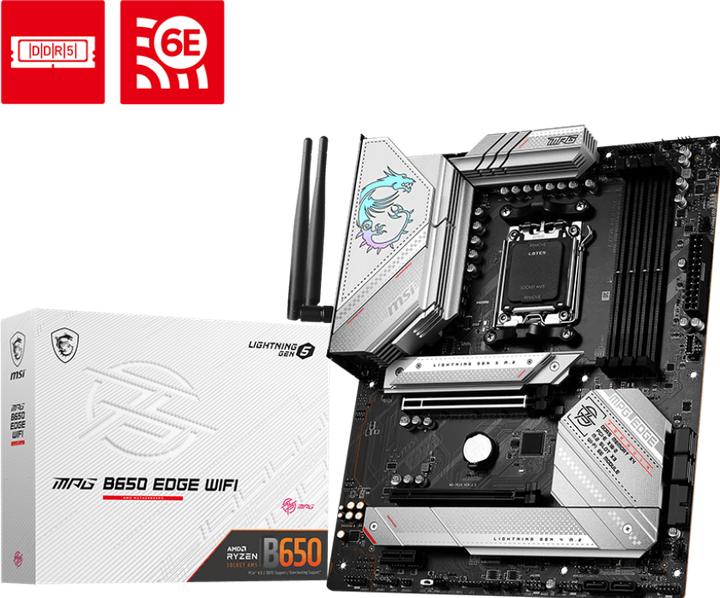

MSI MPG B650 Edge WIFI
AM5, AMD B650, ATXOnly 1 piece in stock at supplier
Product details

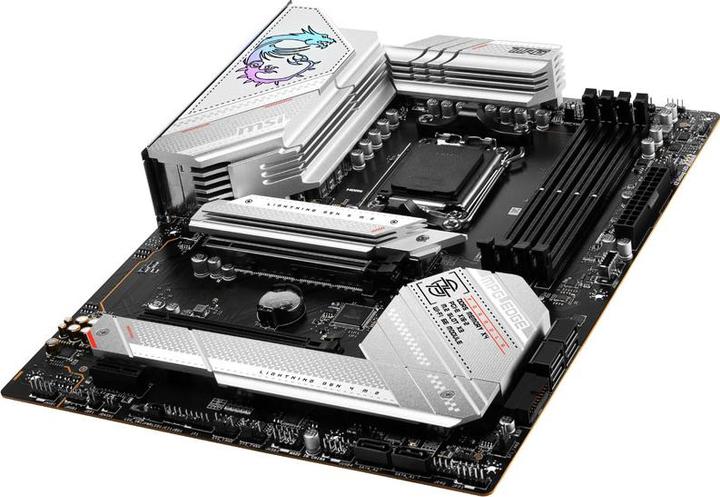

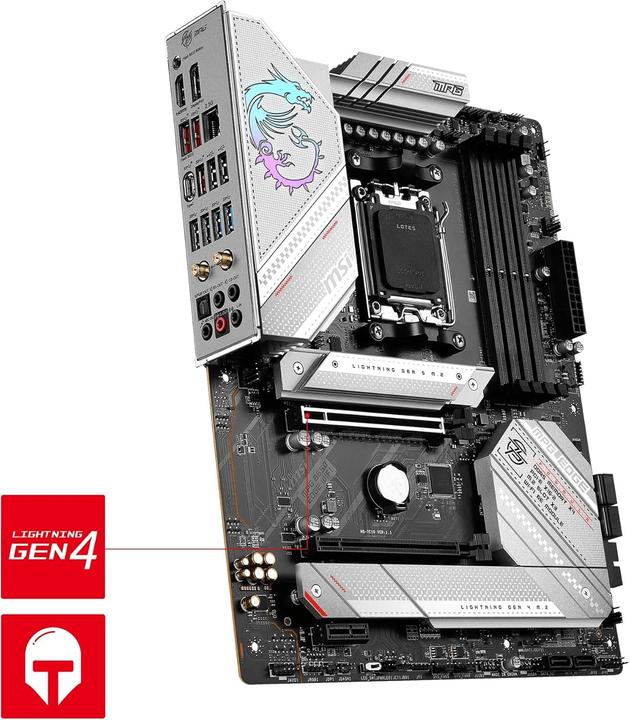

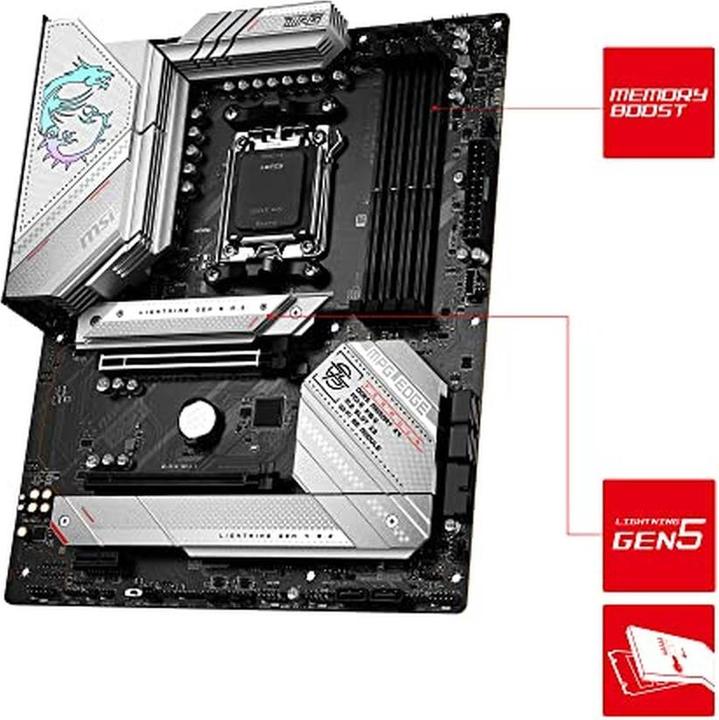

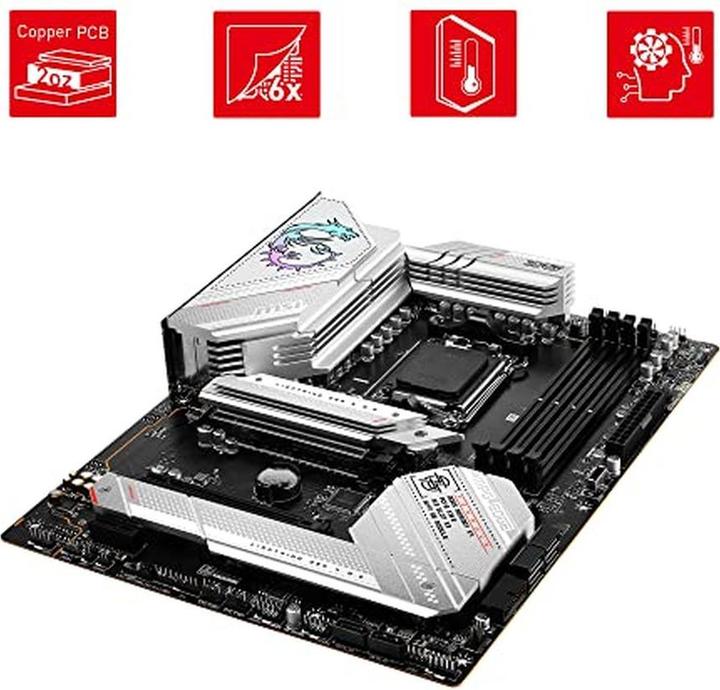

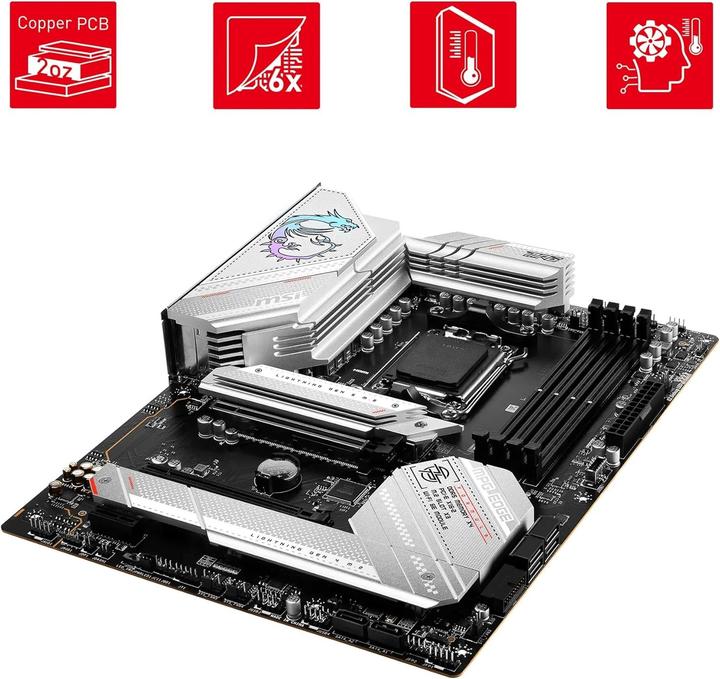

The MPG series brings forth fashionable products by showcasing extremely unique styles and expressing a confident attitude towards the challenges of the gaming world. With exceptional performance and style, the MPG series defines the future of gaming fashion. The extended heatsink increases heat dissipation surface area and maintains performance under heavy load. The reinforced M.2 thermal solution protects the M.2 SSD and ensures incredible performance.
Mainboard features | Front panel audio connector |
Wireless transmission | Bluetooth, Wi-Fi |
Number of memory modules (RAM) | 4x |
Memory type | DDR5 RAM |
Internal connection options | M.2 (3x), S-ATA III (6x) |
Item number | 22726083 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7E10-001R |
Release date | 13/9/2022 |
Form factor | ATX |
Socket | AM5 |
Chipset | AMD B650 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5-6600 |
Max. RAM OC | 6600 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

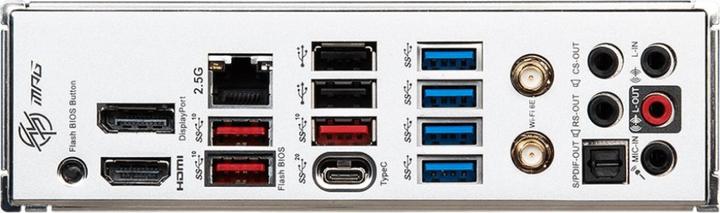

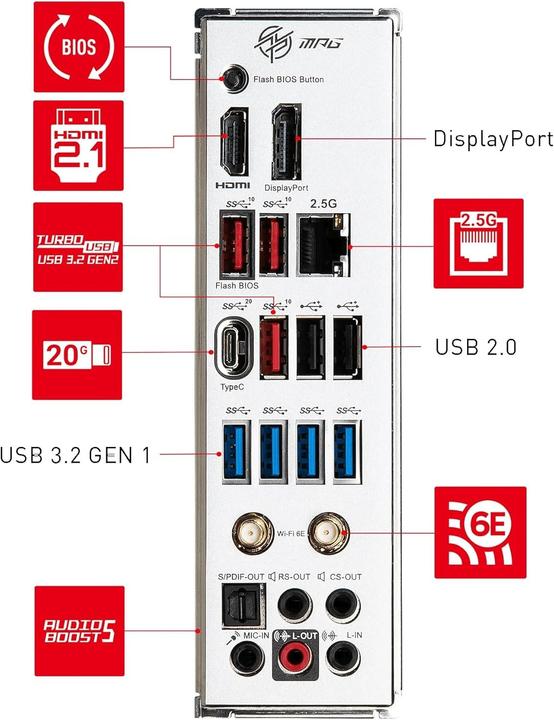

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125-BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm In (5x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 (3x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (3x), USB-C 3.2 Gen 2x2 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | 756,23 kg |
Climate contribution | EUR 14,20 |

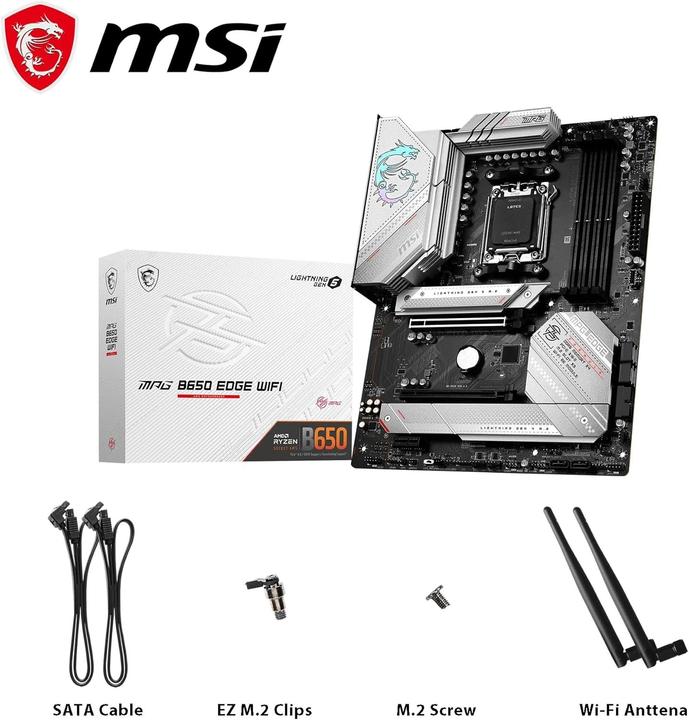

Scope of delivery | 2 x Serial ATA cable |
Length | 243.84 mm |
Width | 304.80 mm |
Height | 27 mm |
Weight | 2100 g |
Product Safety |
Length | 34.40 cm |
Width | 28.10 cm |
Height | 7.80 cm |
Weight | 2.01 kg |
