Primary nominal voltage: 230 V ac, 245 V ac, 400 V ac, 415 V ac
Secondary rated voltage: 230 V ac
Rated power: 1 kVA
Mounting type: DIN rail
Number of outputs: 1
Length: 150 mm
Width: 175 mm
Depth: 155 mm
Dimensions: 150 x 175 x 155 mm
Operating frequency min.: 50 Hz
Operating frequency max.: 60 Hz
Temperature max.: +35 °C
Weight: 14.6 kg

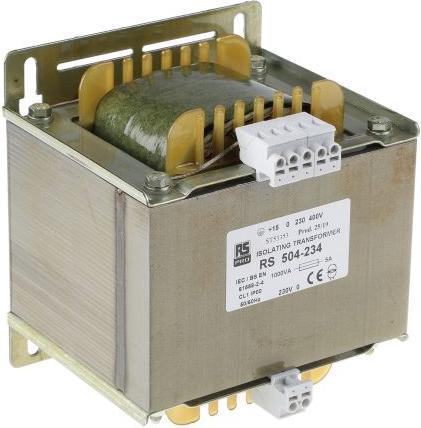

Switchboard primary 230/400 Vac with +15 Vac tap. High quality safety and control isolation transformers for use in control circuits and general applications. Low loss noise lamination. Double standard primary winding 230 / 400 Vac with +15 V tap for input flexibility. Double secondary windings have center tap. Ground terminal included. Fully paint-impregnated for protection against moisture and rusting. Fully sheathed cage terminal with voltage markings. Detailed product data on permanent label. High efficiency, low regulation.
