−6%

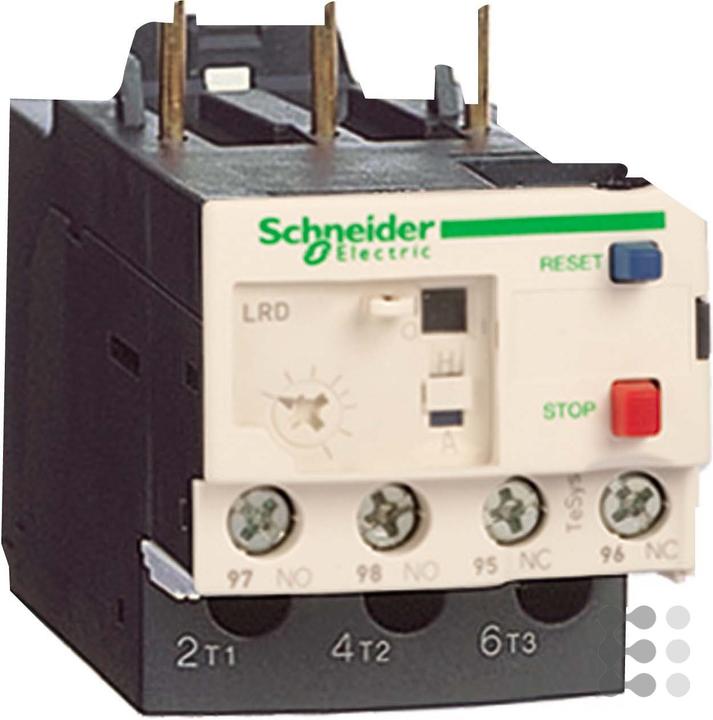

Schneider Electric Motor protection relay 1A

Price in EUR including VAT
was EUR58,86
2Ratings
BrandMore from Schneider Electric
Need a last-minute gift?Discover our instantly available digital vouchers
Delivered between 10/1/2026 and 16/1/2026
More than 10 items ordered
free shipping

Electric current output14

Product details

FLC motor power: 0.63 to 1 A
Contact rated current: 1 A
Contact configuration: 3P
Range: TeSys
Rated contact voltage: 690 V AC
Mounting type: Direct contactor
Series: LRD0
Contact configuration: Normally open/normally closed contact
Number of auxiliary contacts: 2
Reset type: Automatic, manual
Width: 45 mm
Operating temperature range: -20 to +60 °C

Overload relays can be used with AC or DC power supply. Features include 1 normally open and 1 normally closed contact, fault trip indication, and a button for manual or automatic reset. Tripping class 10 A.

Key specifications

Scope of delivery
Motor protection relay 0.63-1.00A LRD05
Output current type
AC
Relay type
Overload relay
Electric current output
1 A
Output voltage
690 V
Number of poles
3x
Item number
9726792

General information

Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
LRD05
Release date
24/9/2018

Relay properties

Relay type
Overload relay
Output voltage
690 V
Electric current output
1 A
Output current type
AC
Switching function
Normally open
Number of openers
1x
Number of closers
1x
Number of poles
3x
Manufacturer Type
Lrd05

Smart home features

Smart Home
Not compatible

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Motor protection relay 0.63-1.00A LRD05

Product dimensions

Length
88 mm
Width
78 mm
Height
51 mm
Weight
124 g

Legal Notice

Product Safety

Package dimensions

Length
9 cm
Width
7.70 cm
Height
5 cm
Weight
138 g
