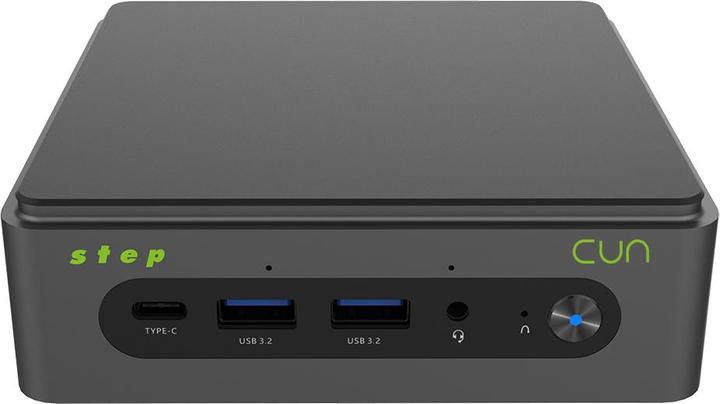

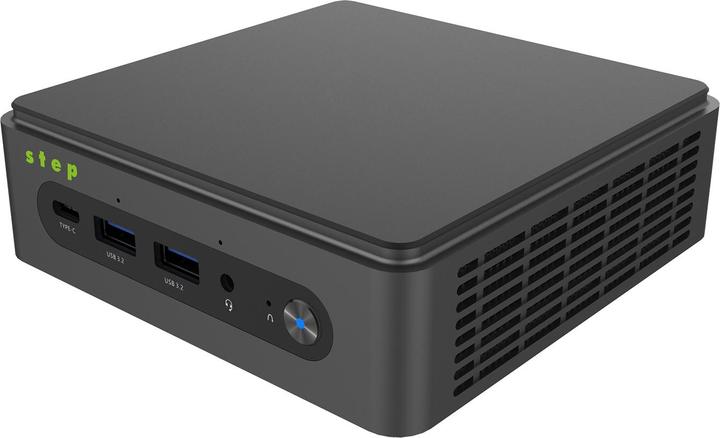

Step PC Micro DS5125-V2 incl. Windows 11 Pro (i5-1235U 8GB DDR4 512GB NVMe SSD WLAN/Bluetooth)

Intel Core i5-1235U, 8 GB, 512 GB, SSD, Not available
Price in EUR including VAT, free shipping

Product details

Step Micro DS5125-v2. Processor family: Intel® Core™ i5, Processor model: i5-1235U. RAM installata: 8 GB, Tipo di RAM: DDR4-SDRAM. Capacità totale di archiviazione: 512 GB, Supporto di memoria: SSD.
Modello scheda grafica integrata: Intel Iris Xe Graphics. Wi-Fi. Operating system included: Windows 11 Pro, Operating system architecture: 64-bit. Case type: mini PC. Type of product: Mini PC. Colore del prodotto: Nero.

Key specifications

Processor family
Core i5
Graphics card model
Not available
Operating System Version
Windows 11 Pro
Front connections
USB 2.0 Type-A (2x)
Rear connections
USB 3.1 (2x)
Video connections
DisplayPort (2x)
HDMI (2x)
Item number
37768284

General information

Manufacturer
Category
PC
Manufacturer no.
1078115
Release date
9/1/2023
May include power adapter
No

Colour

Colour group
Black
Exact colour description
Black

Operating system

Operating system
Windows
Operating System Version
Windows 11 Pro
Operating system architecture
64-bit

Processor

Number of processors
1 x
Processor family
Core i5
Processor type
Intel Core i5-1235U
Processor clock frequency
2 GHz
Max. turbo clock rate
4.40 GHz
Max. TDP
12 W
Overclock clock frequency
4.30 GHz
Number of processor cores
10 -Core
Number of performance cores
2 -Core
Max. Turbo Clock frequency Performance Cores
4.40 GHz
Max. Turbo Clock frequency Efficiency Cores
1.80 GHz
Number of threads
12
Cache
12 MB

Processor cooling properties

Processor cooling type
Passive (fanless)

Memory

Total memory
8 GB
Onboard memory
8 GB
Memory type
LPDDR3-RAM

Data storage overview

Disk type
SSD
Total capacity
512 GB
Form factor
M.2

SSD properties

SSD capacity
512 GB

Additional data storage

Further data carrier type
SSD
Storage capacity
512 GB

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
Iris Xe Graphics
Max. connected monitors
4 x

Dedicated graphics card properties

Graphics chip (GPU)
Iris Xe Graphics
Graphics card model
Not available
Hardware interface
Ethernet

Network

Ethernet controller
Realtek RTL8215B
Max. port speed
20000 Mbit/s

Wireless transmission

Wireless transmission
Bluetooth
Bluetooth version
5.2

Wi-Fi

Wi-Fi standard
Wi-Fi 6 / 802.11ax

Audio properties

Chip
Realtek ALC1150
Audio channel
8.1 Channel

Connections

Front connections
USB 2.0 Type-A (2x)
Rear connections
USB 3.1 (2x)
Video connections
DisplayPort (2x)
HDMI (2x)

Optical drive properties

Optical drive type
No drive

Supplied peripherals

Numeric keypad
without numeric keypad

Product dimensions

Length
12 cm
Width
12 cm
Height
3.70 cm

Package dimensions

Length
35 cm
Width
23 cm
Height
8 cm
Weight
1.30 kg
