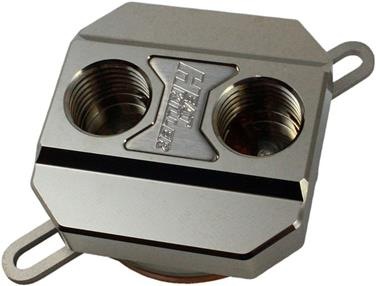

The HEATKILLER® NSB 3.0 series combines performance and maximum compatibility. The motherboard coolers are designed to ensure compatibility with a wide range of motherboards. By rotating and adjusting the mounting bracket, it can be installed in any orientation. The package includes two brackets, allowing the cooler to be mounted on all motherboards with a diagonal hole spacing of 43.0 to 79.2 mm. The position of the holes is irrelevant, as the cooler can still be aligned horizontally to the board.

The base plate is made from high-purity electrolytic copper and features a very efficient cooling structure, with extremely low flow resistance. Despite its small external dimensions (39 x 39 mm), the threaded holes (G 1/4 inch) are spaced 22 mm apart.

The top part is made of high-purity copper, while the bracket and applications are made of polished stainless steel. To prevent tarnishing of the copper, the top part is sealed with a special clear coat.

The HEATKILLER® NSB 3.0 can be mounted on both the Northbridge and Southbridge. Pressure tested: 5 bar, seal: EPDM 75 (max. 150 °C), connection: G ¼ inch (DIN ISO 228-1), thread spacing: 22.0 mm.
