Best selling Buttons + Switches from Di-Soric
On this page you’ll find a ranking of the best Buttons + Switches from Di-Soric. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Di-Soric Cylinder switch
The Di-Soric cylinder switch is a reliable and robust control element designed for various industrial applications. With an operating voltage of 10 to 30 V DC and a PNP type switching output that supports up to 200 mA, this switch provides an effective solution for automation technology. The zinc die-cast housing ensures high resistance and durability, while the IP67 and IP68 protection ratings shield the cylinder switch from dust and water, making it ideal for use in demanding environments. The temperature range of -25 to +70 °C allows for operation in various climatic conditions. The cylinder switch comes with a 2.5 m long cable, enabling flexible installation. Made in Germany, this product combines quality and functionality, making it an excellent choice for applications that require reliability and precision.
2. Di-Soric Light scanner
Light scanner Functional principle: Light scanner Transmitted light source: LED Light colour: Infrared / 880 nm Scanning range: 600 mm Operating voltage: 10 30 V DC Switching output: pnp, 100 mA, NO/NC Ambient temperature operation: -25 +55 °C Protection class: III, operation with safety extra-low voltage Connection: Plug, M12, 4-pin.
3. Di-Soric Capacitance proximity switch
The capacitive proximity switch from Di-Soric is a highly advanced device based on the principle of capacitive sensing. It is designed for use in various industrial applications and provides reliable object detection without direct contact. With a switching distance of 3 mm and a robust stainless steel construction, this switch is ideal for environments where hygiene and durability are important. The switch is not flush-mounted and has an IP 65 and IP 67 protection rating, making it resistant to dust and water. It can operate in a temperature range of -25 °C to +70 °C, making it versatile for different applications. The connection is made via a 2 m long, 3-pole cable, which facilitates installation and offers flexibility in placement.
- Operating voltage of 18 to 30 V DC
- Push-pull switching output with 100 mA, NO/NC
- No-load current of a maximum of 15 mA at 24 V DC
- Robust design with a diameter of 6.5 mm and a length of 51.5 mm
- Suitable for use in demanding environments with IP 65 and IP 67 protection ratings.
4. Di-Soric Laser diffuse sensor
The Di-Soric laser light sensor is a high-precision control device based on the principle of light sensor technology. Equipped with background suppression, this sensor allows for reliable and accurate detection of objects within a defined range. The light source is a red laser with a wavelength of 650 nm, providing a range of 50 to 200 mm. The sensor is designed to operate within a voltage range of 10 to 35 V DC and can be used as both a normally open (NO) and normally closed (NC) switch. Its robust construction and protection class III make it ideal for use in various environments, while the operating temperature range of -10 to +50 °C ensures versatile applicability. The laser light sensor comes with a 4-pin M12 connector, facilitating installation and integration into existing systems.
- Background suppression for precise object detection
- Laser class 1 for safe use
- Push-pull switching output with 200 mA
- Robust design with protection class III.

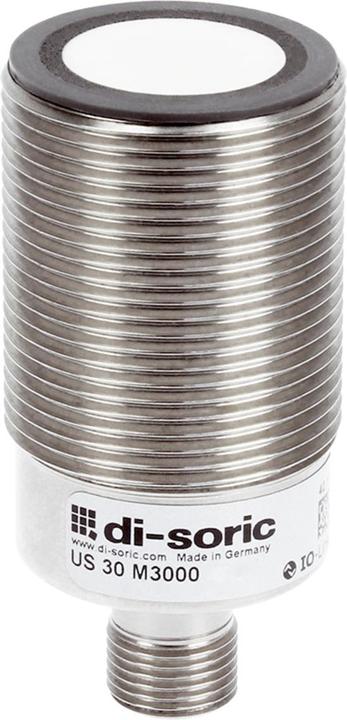

5. Di-Soric Ultrasonic sensor
The ultrasonic sensor from Di-Soric is a highly advanced device based on ultrasonic technology. It serves as a reliable switch and pushbutton that can be used in various applications to enable precise measurements and controls. With a nominal switching distance of up to 3000 mm and a mounting distance of 500 mm, this sensor offers high flexibility in installation. The sensor is suitable for operation in a wide temperature range of -25 to +70 °C and ensures high resistance to environmental influences with its IP67 protection class. The IO-Link interface allows for easy integration into modern automation systems and provides enhanced functions for sensor monitoring and configuration.
- Nominal switching distance of 3000 mm for versatile applications
- IO-Link interface (V1.1) for easy integration into automation systems
- Operating voltage of 18 to 30 V DC for flexible deployment options
- Protection class IP67 for high resistance to dust and water
- Operating temperature range of -25 to +70 °C for use in demanding environments.
6. Di-Soric MZET 25 PSK-K-TSSL Magnetic field cylinder sensor T-slot 201144
The MZET 25 PSK-K-TSSL magnetic field cylinder sensor from Di-Soric is a highly advanced switch designed for mounting in T-slots. With an operating voltage of 10 to 30 V DC and a PNP output type that supports up to 200 mA, this sensor provides a reliable solution for various applications. The zinc die-cast housing ensures high robustness and durability, while the protection ratings IP67 and IP68 shield the sensor from dust and water, making it ideal for use in demanding environments. The sensor can operate within a temperature range of -25 to +70 °C, highlighting its versatility. Connection is made via a 0.3 m long pigtail with a 3-pin M8 connector, facilitating integration into existing systems. This cylinder sensor is an excellent choice for industrial applications where precision and reliability are required.
