Best selling Buttons + Switches from Hager
On this page you’ll find a ranking of the best Buttons + Switches from Hager. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

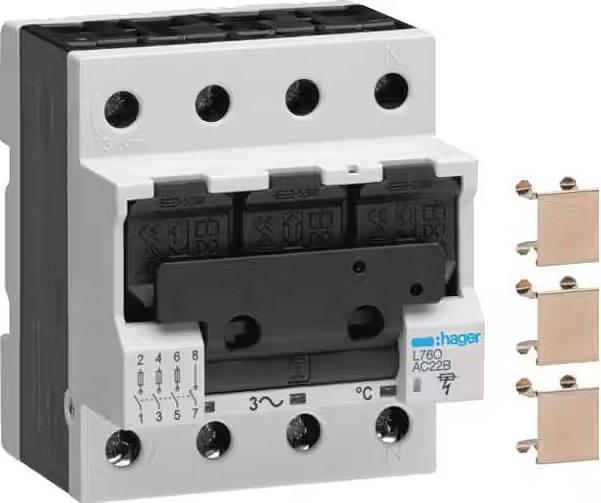

1. Hager Switch-disconnector
The Hager load disconnect switch L76O is a reliable and powerful device designed for use in system power supply. With a rated voltage of 400 volts and a rated current of 63 amperes, this load disconnect switch provides a safe and efficient way to disconnect electrical loads. It is suitable for mounting on a DIN rail, allowing for easy installation indoors. The switch is equipped with three poles, including a neutral conductor, making it ideal for various applications in electrical installations. The Hager load disconnect switch L76O is an excellent choice for professionals who value quality and reliability.
- Suitable for mounting on DIN rails
- Designed for indoor use
- Provides safe disconnection of electrical loads
- Compatible with D02 fuses.
2. Hager D02 Rider safety
Hager D02 Rider fuse L066M Manufacturer: Hager Designation: D02 Rider fuse 3x63A w. N,switchable Type: L066M Number of poles: 4 Size: D02 Rated voltage: 400 V Rated current: 63 AHager D02 Rider fuse L066M: more detailsLoad break switch D02 63A 4 pole N leading 60mm busbar. Switch disconnector D02 according to DIN VDE 0638 with signalling system for fuse failure for mounting on 60 mm busbar system and fuse links D02. Screw cap-less plug-in technology with factory-set permanent contact pressure, no contact loosening during operation, hand-independent ON/OFF, circuit removable fuse plug with finger protection and lockable/sealable padlock. Equipped with D02 sleeve fitting insert as required D0 fuse insert as required 1 to 63 A. Utilization category AC22B. , EAN: 3250614133787.

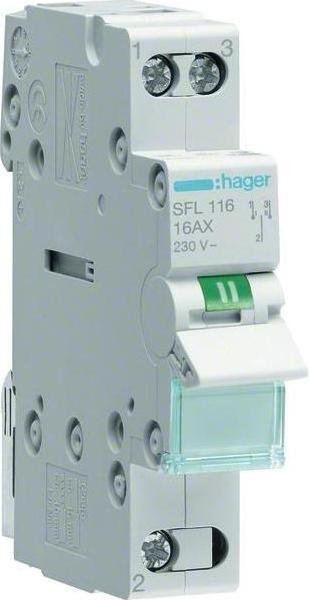

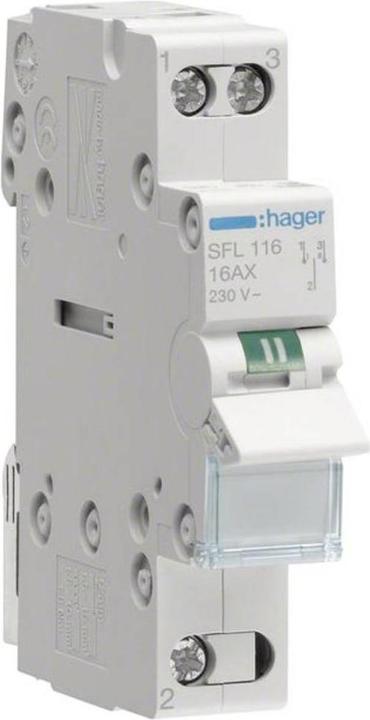

3. Hager toggle
Changeover switch 16A 1 switch 230VAC 1PLE. Changeover switch according to DIN EN 60669-1 VDE 0632-1, DIN EN 60669-2-4 VDE 0632-2-4, and DIN EN IEC 60947-3 VDE 0660-107 with VDE mark, labeling option directly on the device, and suitable for the subsequent installation of additional devices. SFL116.

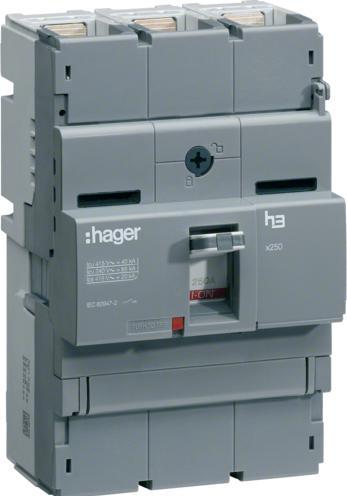

4. Hager HAGE switch disconnector
Load disconnect switch size x250, 3-pole, 250A. Load disconnect switch according to DIN EN 60947-3, size x250, with magnetic (adjustable) tripping for switching electrical systems and networks. Mounting on a mounting plate. The position of the handle indicates the three different operating states (on = top, off = bottom, tripped = middle position). The switches feature a mechanical test button. The functionality of the circuit breakers can be expanded with various accessories. Includes phase separation walls.
5. Hager HAGE rotary actuator
The HAGE rotary drive from Hager is a highly advanced electrical switching device designed for both professional and private applications. With a rated current capacity of 800A to 1600A, this rotary drive is ideal for high-performance power systems in industrial environments, commercial buildings, and large residential installations. The robust coupling mechanism ensures smooth operation during switching cycles and guarantees reliable circuit interruption. The device is optimized for standard installation in electrical distributions and offers user-friendly installation with clear terminal markings. The switching mechanism is equipped with visual position indicators and ergonomic operating levers that enable safe handling. Made from high-quality, flame-retardant thermoplastic materials, the rotary drive is suitable for ambient temperatures ranging from -25°C to +70°C and meets the requirements for protection class IP65.
- Rated current capacity of 800A to 1600A for high-performance applications
- Robust coupling mechanism for smooth operation
- Made from flame-retardant thermoplastic materials
- Ergonomic operating levers and visual position indicators for safe handling
- Suitable for ambient temperatures from -25°C to +70°C.
6. Hager HAC306 switch-disconnector+disconnector 3P 63A
Hager Load Break Switch HAC306
Manufacturer: Hager
Designation: Load Break Switch 3P 63A
Type: HAC306
Configured as main switch: Yes
Configured as maintenance/repair switch: Yes
Configured as safety switch: Yes
Configured as emergency stop device: No
Configured as reversing switch: No
Number of switches: 1
Max. rated operating voltage Ue at AC: 415 V
Rated operating voltage: 380-415 V
Rated continuous current Iu: 63 A
Rated continuous current at AC-23, 400 V: 63 A
Rated continuous current at AC-21, 400 V: 63 A
Rated short-time current withstand Icw: 1.5 kA
Rated operational power at AC-23, 400 V: 28 kW
Switching capacity at 400 V: 41 kW
Conditional rated short-circuit current Iq: 50 kA
Number of poles: 3
Motor drive optional: No
Integrated motor drive: No
Voltage trigger optional: No
Device design: Built-in device with fixed installation technology
Suitable for floor mounting: Yes
Suitable for front mounting 4-hole: No
Suitable for central front mounting: No
Suitable for panel installation: Yes
Suitable for intermediate installation: No
Color of the operating element: Gray
Design of the operating element: Short rotary handle
Lockable: Yes
Connection type main circuit: Screw connection
With pre-assembled wiring: No
Protection class (IP), front side: IP20
Protection class (NEMA): Other
Width: 52.5 mm
Height: 76 mm
Depth: 69 mm
Width in modular units: 3
Hager Load Break Switch HAC306: Additional details
3-pole 63A load break switch for DIN rail or mounting plate. Load break switch for installation on DIN rail or mounting plate, rotary drive directly on the device can be locked in the off position with a padlock. Ensures switching on and off under load and provides a safety isolation function in all low-voltage circuits.

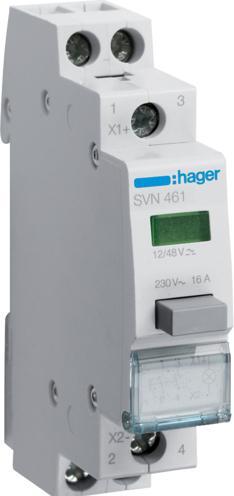

7. Hager HAG SVN461 Pushbutton 16A 2S 12/48VAC with LED indicator green
Hager Push Button with LED Indicator SVN461
Manufacturer: Hager
Description: Push button with green LED indicator, 2 contacts, 12V
Type: SVN461
Number of contacts as normally open: 2
Switching current: 16 A
Switching voltage: 230 V
Voltage type: AC
With indicator lamp: yes
Color of the dome: green
Light source: LED
Lamp base: other
Max. lamp power: 800 W
Lamp voltage: 48 V
Color of the button: gray
Width in modular units: 1
Installation depth: 66 mm
Protection class (IP): IP20
Hager Push Button with LED Indicator SVN461: additional details
Push button 16A 2 normally open contacts 12 + 48V AC with green indicator light. Push button with LED indicator according to DIN EN 62094-1 (VDE 0632-700) and DIN EN 60947-5-1 (VDE 0660-200) with VDE mark, labeling option directly on the device.
EAN: 3250615725530.

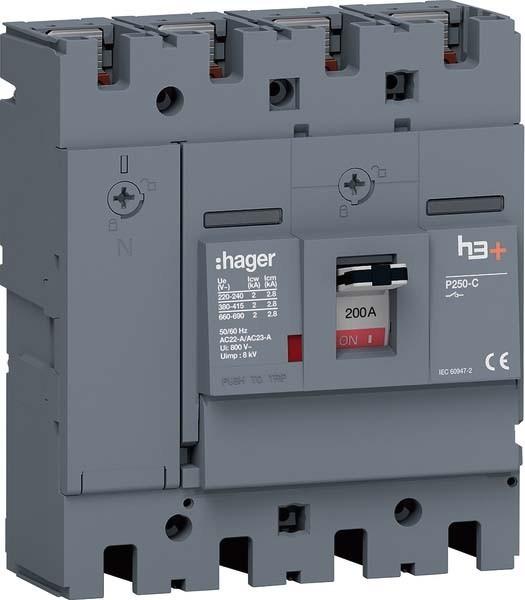

8. Hager HCT201AR
Hager switch-disconnector H3+ P250 HCT201AR
Manufacturer: Hager
Designation: Switch-disconnector H3+ P250 4 pole 200A FTC
Type: HCT201AR
Version as main switch: Yes
Version as maintenance/repair switch: Yes
Version as safety switch: No
Version as emergency off device: Yes
Version as reversing switch: No
Number of switches: 1
Max. rated operational voltage Ue at AC: 690 V
Rated operational voltage: 220...690 V
Rated uninterrupted current Iu: 200 A
Rated uninterrupted current at AC-23, 400 V: 200 A
Rated uninterrupted current at AC-21, 400 V: 200 A
Rated short-time withstand current Icw: 3.6 kA
Rated operational power at AC-23, 400 V: 240 kW
Rated short-circuit current Iq: 47 kA
Number of poles: 4
Motor drive optional: Yes
Motor drive integrated: No
Voltage release optional: Yes
Unit type: Built-in unit
Fixed installation technology
Suitable for floor mounting: Yes
Suitable for front mounting 4-hole: No
Suitable for front mounting central: No
Suitable for distribution mounting: Yes
Suitable for intermediate: No
Colour of actuating element: Grey
Design of actuating element: Lockable: Yes
Connection type main circuit: Cable clamp
Protection class (IP), front: IP40
Protection class (NEMA): Other
The switch-disconnector according to DIN EN 60947-3 separates the supply side from the output side in electrical installations. The two different operating states can be recognized by the position of the toggle (ON = up, OFF = down). A device for locking the switching state in ON or OFF position is integrated and can be used with a standard padlock without additional accessories. A hinged cover with captive quick-release screw allows access to the installation space for optional auxiliary contacts and other releases. Integrated accessories can be recognized and identified via viewing windows without opening the hinged cover.
9. Hager 53503404
Hager 53503404. Quantité: 10 pièce(s).

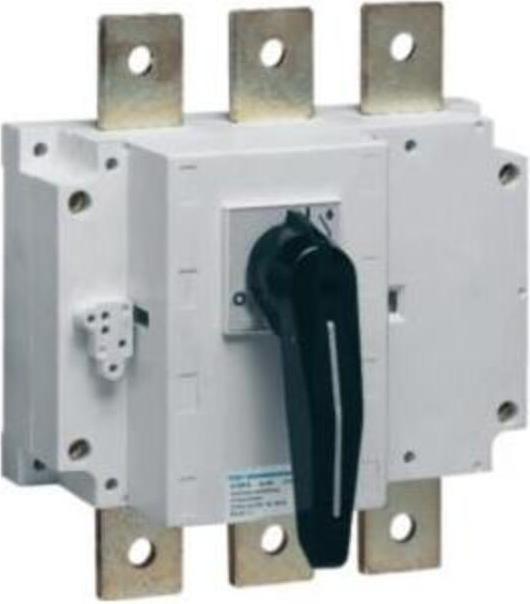

10. Hager HA351
Hager Load Break Switch HA351
Manufacturer: Hager
Designation: 3-pole Load Break Switch, 125A
Type: HA351
Designed as a main switch: yes
Designed as a maintenance/repair switch: yes
Designed as a safety switch: yes
Designed as an emergency stop device: no
Designed as a reversing switch: no
Number of switches: 1
Max. rated operational voltage Ue at AC: 415 V
Rated operational voltage: 380..415 V
Rated continuous current Iu: 125 A
Rated continuous current at AC-23, 400 V: 125 A
Rated continuous current at AC-21, 400 V: 125 A
Rated short-time current withstand Icw: 7 kA
Rated operational power at AC-23, 400 V: 56 kW
Switching capacity at 400 V: 82 kW
Conditional rated short-circuit current Iq: 50 kA
Number of poles: 3
Motor drive optional: no
Motor drive integrated: no
Voltage release optional: no
Device design: Built-in device fixed installation technology
Suitable for floor mounting: yes
Suitable for front mounting 4-hole: no
Suitable for central front mounting: no
Suitable for panel installation: yes
Suitable for intermediate mounting: no
Color of the operating element: black
Design of the operating element: long rotary handle
Lockable: yes
Connection type main circuit: cable terminal
With pre-assembled wiring: no
Degree of protection (IP), front side: IP00
Degree of protection (NEMA): other
Width: 140 mm
Height: 135 mm
Depth: 120 mm
Hager Load Break Switch HA351: additional details
3-pole Load Break Switch 125A with separation indication. Load break switch according to DIN EN 60947-3 for ON/OFF switching in systems. Designed in a modular form for snap-on mounting on DIN-C rail or for installation on a mounting plate.
EAN: 3250613113513.
