Best Schneider products in the Buttons + Switches category
On this page you'll find a ranking of the best Schneider products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Schneider Single-pole switch

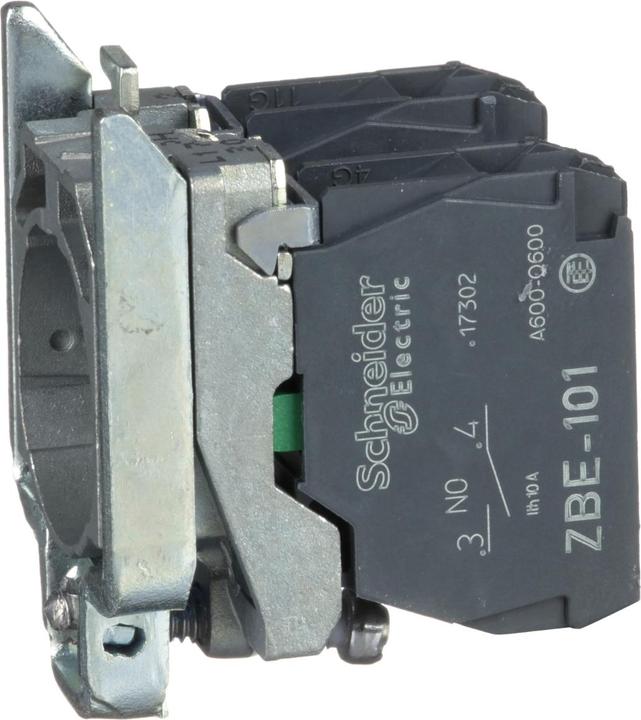

2. Schneider Auxiliary switch block with mounting flange, Harmony XB4, metal, 22mm, 30mm, 1S, screw terminal
The Harmony XB4/ZB4 series made of metal offers a wide range of 22 mm and 30 mm control and signaling devices such as push buttons, indicator lights, and selector switches, up to emergency stop switches. Due to the modular design of the devices, all components can be obtained as individual elements, in assemblies, or as complete devices. Thanks to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This auxiliary contact block is compatible with the 22 mm and 30 mm devices and features a normally closed contact. The connection of the auxiliary contact block is made via screw terminals. Mounting is done using a shock-resistant connection screw. Delivery is in bulk packaging. In addition to high vibration resistance and a very long service life, the devices of the XB4/ZB4 series also impress with an extremely high possible ambient temperature. Due to the variety of existing product standards and certifications, they are suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, which support your sustainability goals.
Buttons + Switches
EUR37,90
Schneider Auxiliary switch block with mounting flange, Harmony XB4, metal, 22mm, 30mm, 1S, screw terminal
3. Schneider 3P 100A INS100 switch-disconnector (28908)
Schneider Electric load-break switch 28908
Manufacturer: Schneider Electric
Designation: Load-break switch INS100 3p Interpact
Type: 28908
Version as main switch: Yes
Version as maintenance/repair switch: Yes
Version as safety switch: No
Version as emergency stop device: No
Version as reversing switch: No
Number of switches: 1
Max. rated operational voltage Ue at AC: 690 V
Rated operational voltage: 690 V
Rated continuous current Iu: 100 A
Rated continuous current at AC-23, 400 V: 100 A
Rated short-time withstand current Icw: 5.5 kA
Rated operational power at AC-23, 400 V: 45 kW
Rated short-circuit current Iq: 65 kA
Number of poles: 3
Number of auxiliary contacts as changeover contacts: 2
Motor drive optional: No
Motor drive integrated: No
Voltage release optional: No
Unit design:
- Suitable for floor mounting: Yes
- Suitable for front mounting 4-hole: Yes
- Suitable for front mounting central: Yes
- Suitable for distributor mounting: Yes
- Suitable for intermediate mounting: No
Colour of actuating element: Black
Design of operating element: Long rotary handle
Lockable: Yes
Connection type main circuit: Screw connection
Protection class (IP), front: IP40
Schneider Electric switch-disconnector 28908: further details
Compact INS switch-disconnector. Switch-disconnector INS100, 100A/690V AC / 250V DC, rotary actuator black. Rated current 100 A, number of poles 3. Complete units with black switch lever. Disconnecting characteristics according to VDE 0660 part 100. Rotary drive frontal or lateral up to INS250. EAN: 3303430289081.

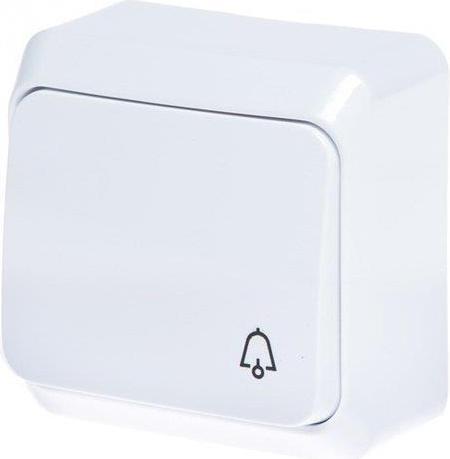

4. Schneider PUSH BUTTON CEDAR PLUS WDE000511

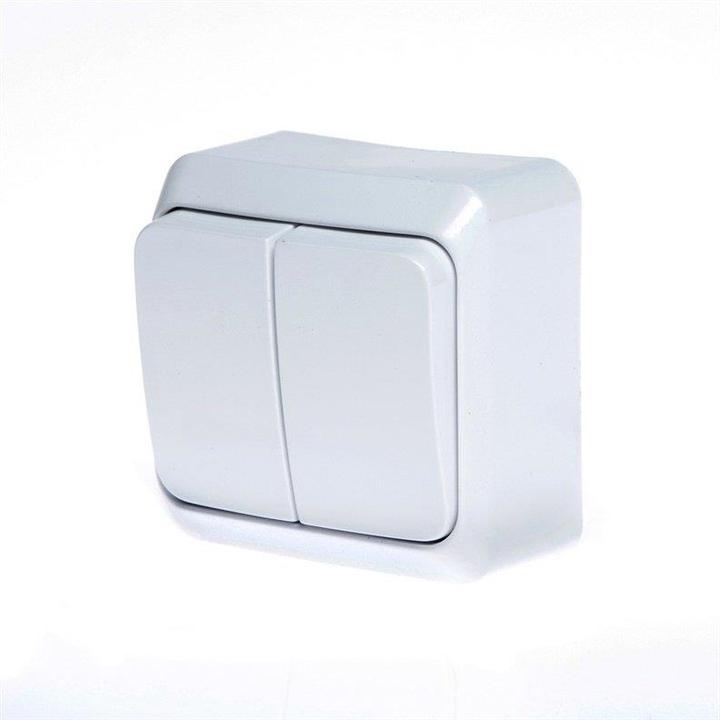

5. Schneider Switch White 1-Pole 2-Circuits
6. Schneider WNT-101P, 1 POLE SWITCH BUTTON

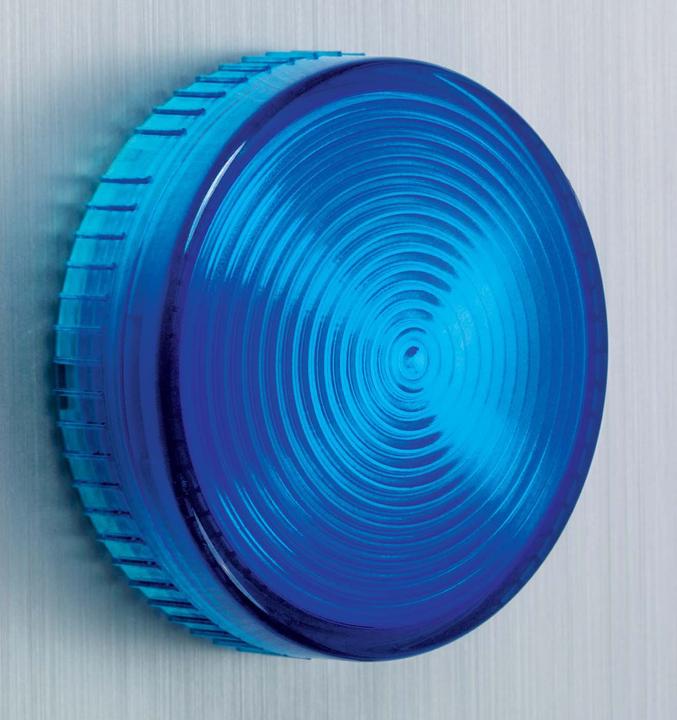

7. Schneider XB7EV06BP
Schneider Electric Indicator Light, Round XB7EV06BP
Manufacturer: Schneider Electric
Description: Indicator light, round 24 V, screw connection
Type: XB7EV06BP
Number of indicator lights: 1
Lens color: blue
Socket design: LED
With light source: yes
Rated operating voltage Ue: 24 V
Voltage type: AC/DC
Electrical connection design: screw connection
Lens shape: round
Lens design: high
Hole diameter: 22.5 mm
With front ring: no
Material of front ring: other
Front ring color: other
Protection class (IP): IP65
Protection class (NEMA): other
The Harmony XB7 series offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. This plastic indicator light in monoblock design is ideal for universal and cost-effective use in industry, mechanical engineering, and control cabinet construction. This blue indicator light features a high IP protection class and requires a nominal auxiliary voltage of 24 V AC/DC. Installed in a 22mm hole, the indicator light is connected using the screw terminals located on the back. Due to the numerous existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, which support your sustainability goals.
8. Schneider Switch Button Belwhite 1-Pole
9. Schneider Auxiliary switch block with mounting flange, Harmony XB4, metal, 22mm, 30mm, 2S, screw terminal
The Harmony XB4/ZB4 series made of metal offers a wide range of 22 mm and 30 mm control and signaling devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Thanks to the modular design of the devices, all components can be obtained as individual elements, in assemblies, or as complete devices. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This auxiliary contact block is compatible with the 22 mm and 30 mm devices and features 2 normally open contacts. The connection of the auxiliary contact block is made via screw terminals. The mounting is secured with a shock-resistant connection screw. Delivery is made in bulk packaging. In addition to high vibration resistance and a very long lifespan, the XB4/ZB4 series devices also stand out due to their extremely high possible ambient temperature. Due to the numerous existing product standards and certifications, they are suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, supporting your sustainability goals.
Buttons + Switches
−5%
EUR52,90 was EUR55,90
Schneider Auxiliary switch block with mounting flange, Harmony XB4, metal, 22mm, 30mm, 2S, screw terminal
10. Schneider Protective collar, Harmony XB4 and XB5, yellow, round, for emergency stop/emergency off switch
The Harmony XB4/XB5 series, made of metal or plastic, offers a wide range of 22 mm and 30 mm control and signaling devices such as push buttons, indicator lights, and selector switches, as well as emergency stop switches. Thanks to the modular design of the devices, all components can be obtained as individual elements, in assemblies, or as complete devices. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideally suited for most applications in industry and buildings. This yellow protective collar is designed for use with emergency stop/stop switches. In addition to high vibration resistance and a very long service life, the XB4/ZB4 series devices also feature an extremely high possible ambient temperature. With a variety of existing product standards and certifications, they are suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy, which support your sustainability goals.
Buttons + Switches
EUR64,91
Schneider Protective collar, Harmony XB4 and XB5, yellow, round, for emergency stop/emergency off switch
