Best Exsys products in the Docking stations + USB hubs category

On this page you'll find a ranking of the best Exsys products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. Exsys USB 3.2 HUB 7-Port external incl.power supply. incl.power supply 12V/3A and USB cable

The EX-1188HMS-3 provides 7 USB 3.2 Gen 1 (formerly known as USB 3.0) downstream ports with 15 kV ESD overvoltage protection for each output. It is possible to connect up to seven external USB peripherals to a USB 3.2 Gen 1 port from a notebook, desktop computer, or server in a 19" rack. It can be used in automation, industry, and office applications. Thanks to its special housing, the EX-1188HMS-3 can be mounted on the wall, under a table, or in a 19" cabinet (optionally with EX-6099).

USB 3.2 Gen 1 hub with seven downstream ports
15 kV ESD overvoltage protection for each output
Power supply +7V to +24V DC via terminal block or DC socket
Power supply optionally also from USB bus +5V (bus-powered)
Automatic detection of data transfer rate for connected peripherals
Metal housing for wall, table, or optionally on mounting rail (EX-6099)
900 mA power on all 4 ports
Robust metal housing
1x LED voltage indicator

Two jumpers for individual control of operating mode (data and power):
Bus Power Jumper:
ENA = Bus power operation possible
DIS = Operation only possible with power supply (self-powered)
Host Control Jumper:
ON = Power supply independent of host PC
HOST = Power supply only when host PC is turned on

Delivery includes:
EX-1188HMS-3, USB 3.2 Gen 1 cable 1.5 m, power supply 12V/3A, manual.

Exsys USB 3.2 HUB 7-Port external incl.power supply. incl.power supply 12V/3A and USB cable (USB-B, 7 Ports)
Docking stations + USB hubs
EUR129,51

Exsys USB 3.2 HUB 7-Port external incl.power supply. incl.power supply 12V/3A and USB cable

USB-B, 7 Ports

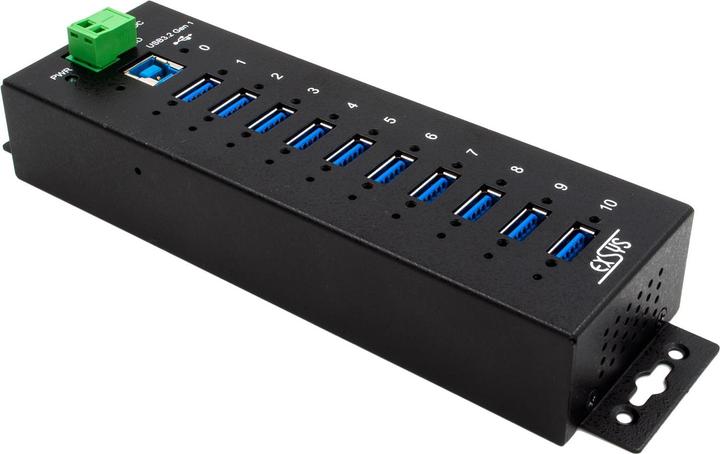

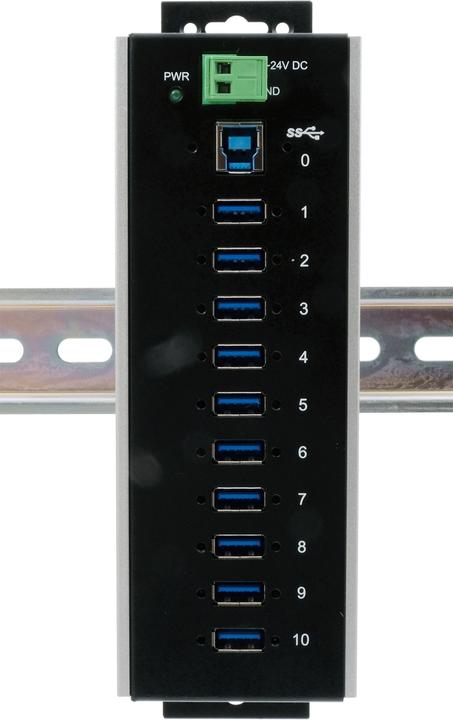

2. Exsys EX-1110HMVS-WT

The robust, industrial-grade EX-1110HMVS-WT provides ten screwable USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection, allowing up to ten external USB peripherals to be connected to a USB 3.2 Gen 1 port on a computer in a 19" rack. With SuperSpeed USB 3.2 Gen 1, it supports a maximum data transfer rate of up to 5 Gbit/s and is backward compatible with USB 1.1. The included USB 3.2 Gen 1 cable can be attached to the EX-1110HMVS-WT without tools using knurled screws. Power is supplied via a two-wire connection at the terminal block (+7V to +24V) or USB bus power. The EX-1110HMVS-WT has been specifically designed for use in an extended temperature range of -40°C to 85°C and meets the special requirements of industrial applications.

USB 3.2 Gen 1 Metal HUB with 10 Ports
15KV ESD surge protection for all 10 ports
Protection of end devices against voltage fluctuations
Power supply +7V to +24V DC via terminal block
Optional power supply from USB bus +5V (Bus-Power)
Easy installation with included DIN rail mounting bracket
Automatic detection of data transfer rates for connected peripherals
Simultaneously supports 1.5A power for each output
Supports battery charging BC v1.2: SDP/CDP/DCP mode
Automatic detection of input polarity at the power terminal block
Robust metal housing with an extended temperature range of -40°C to 85°C
1x LED voltage indicator

Internal jumper for individual control of power supply:
- ENA = Bus power operation possible
- DIS = Operation only with power supply possible (Self Power)

Package contents:
EX-1110HMVS-WT, USB 3.2 Gen 1 cable, DIN rail kit, manual.

3. Exsys USB 3.2 HUB 7-Port Gen1 White HUB

The EX-1189HMVS-3W provides 7 screwable USB 3.2 Gen 1 (formerly USB 3.0) downstream ports with 15KV ESD surge protection for each output. It simultaneously supplies up to 1.5A of power for charging iPhones, iPads, smartphones, and tablets on up to 4 ports. The included EX-K1571V cable can be attached to the EX-1189HMVS-3W using thumb screws without a screwdriver. It can be used in automation, industrial, and office applications. Thanks to its special housing, the EX-1189HMVS-3W can be mounted on a wall, under a table, or in a 19" rack (optionally with EX-6099).

USB 3.2 Gen 1 Metal HUB with 7 Ports
15KV ESD surge protection for all 7 ports
Power supply 12V/3A with DC jack or +7V to +24V with terminal block
Power supply also optionally from USB bus +5V (Bus-Power)
Automatic detection of data transfer rates for connected peripherals
Simultaneously supports 1.5A power on a maximum of 4 ports
Supports battery charging BC v1.2: SDP/CDP/DCP mode
Robust metal housing
7x LED USB operation indicators
1x LED voltage indicator

Internal jumper for individual power supply control:
- ENA = Bus power operation possible
- DIS = Operation only with power supply possible (Self Power)

Scope of delivery:
EX-1189HMVS-3W, USB 3.2 Gen 1 cable 1.5 m, power supply 12V/3A, manual.

4. Exsys 2 Port USB 3.2 Gen1 Extender with fibre optic cable up to 300 metres

The 2-Port USB 3.2 Gen1 Extender with fiber optic cable from Exsys is a highly advanced solution for extending USB signals over long distances. With a range of up to 300 meters, or even up to 10 km when using single-mode transceivers, this device enables a reliable connection for various applications that depend on high data transfer rates. The extender consists of a local host unit that connects directly to a PC and a remote 2-Port SuperSpeed hub that offers both USB-A and USB-C ports. This flexibility makes it ideal for use with cameras, storage devices, and other USB peripherals. The device comes with a DIN-rail kit and a wall mount, allowing for versatile installation in different environments. Additionally, the extender features a 15KV ESD surge protection to safeguard connected devices and ensure stable performance.

- Supports USB 3.2 Gen 1 with a maximum transfer speed of 5000 Mbit/s
- Provides both USB-A and USB-C ports for versatile usage
- Includes wall mount and DIN-rail kit for flexible installation options
- Surge protection with 15KV ESD protection for enhanced safety
- Allows the use of fiber optic cables for a range of up to 300 meters.

5. Exsys 1116hmvs

The compact and robust EX-1116HMVS provides 16 screwable USB 3.0 downstream ports, offering protection for connected devices against voltage fluctuations and 15kV ESD surge protection. This allows for the connection of up to sixteen external USB peripherals to a single USB 3.0 port from the computer in a 19" rack. The included EX-K1571V cable (1.5 meters) with A-plug to B-plug can be attached to the EX-1116HMVS using knurled screws without the need for a screwdriver. The EX-1116HMVS can be used in automation as well as office applications and meets the specific requirements of industrial applications. A DIN rail kit and two metal plates for mounting on the wall or in a 19-inch rack are included with the EX-1116HMVS. It can also serve as a charging station for tablets and smartphones.

USB 3.0 hub with 16 screwable ports. 15kV ESD surge protection for each port. Protection for connected devices against voltage fluctuations. Two USB 3.0 upstream ports (manually switchable between port A and B). Power supply 12V to 24V DC. Installation with integrated DIN rail mount. Supports all USB 1.1 to 3.0 compatible peripherals. Supports 1.5A USB bus power for each output.

6. Exsys USB 3.2 Gen1 Super Speed Isolator with 5KV Optical Isolation to protect t

The EX-1452IS is a USB 3.2 Gen 1 Super-Speed Isolation Adapter with a data transfer rate of up to 5 Gbps. It features a USB 3.2 Gen 1 Type A port with 15 kV ESD surge protection and 3 kV capacitive isolation for USB 3.2 Gen 1 (formerly USB 3.0), USB 2.0, and USB 1.1 devices. However, it only supports USB 3.2 Gen 1 hosts; USB 2.0 or USB 1.1 hosts are not supported. The EX-1452IS also offers the unique ability to operate in bus-powered mode without an external power supply, making it ideal for low-power USB devices. Additionally, a DC jack is available for external power supply if more power is needed at the downstream port. The EX-1452IS provides a simple solution for isolating USB connections.

USB 3.2 Gen 1 Isolation Adapter for isolating expensive USB devices
3 kV isolation (capacitive) between upstream and downstream ports
15 kV ESD surge protection
USB ports are screwable
Supports self-power and bus-power modes
DC jack connection for external power supply
No additional drivers required
Supports wall or DIN rail mounting
LED power indicator

Package contents:
EX-1452IS, USB 3.2 Gen 1 cable, wall/DIN rail kit, manual.

7. Exsys Managed Shareable USB 3.2 Gen 1 Hub 10-Port

The Managed Shareable USB 3.2 Gen 1 Hub from Exsys is a powerful docking station and USB hub solution specifically designed for industrial applications. With ten screwable USB-A ports, this hub enables efficient connection and management of multiple devices over a network. It supports the USB Battery Charging Specification v1.2 and offers various charging modes tailored to specific manufacturers, including Apple and Samsung. The hub is designed for use in automation, industrial, and office applications and can be flexibly mounted, whether on a wall, under a desk, or in a 19" rack. The included management software allows precise control of the USB bus voltage for each port, enabling individual customization and management of connected devices. Additionally, the hub features built-in flash memory that saves the desired startup state, further simplifying usage.

- Supports USB Battery Charging Specification v1.2 for fast charging
- Management software for controlling USB bus voltage per port
- Flexibly mountable on walls, desks, or in 19" racks
- Built-in flash memory for custom startup states
- Robust housing with IP30 protection rating for industrial environments.

8. Exsys EX-1247HMVS

Exsys USB Hub EX-1247HMVS.

9. Exsys USB 3.2 HUB 4-Port incl.Mains. 12V/3 15KV ESD Surge Protection & 3KV Opto

With the EX-1182VIS-2, you can expand a USB 3.2 Gen 1 output (previously 3.0 or 3.1 Gen 1) of a notebook or desktop computer with three additional USB 3.2 Gen 1 ports and one USB 2.0 port, featuring 15KV ESD overvoltage protection and 3KV isolation. Up to four external USB peripherals can be connected to a USB 3.2 Gen 1 port of a notebook, desktop computer, or server. The included EX-K1551V cable can be attached to the EX-1182VIS-2 without a screwdriver using thumb screws. The EX-1182VIS-2 can be mounted on a DIN rail in a 19” rack, on the wall, or under a table.

USB 3.2 Gen 1 HUB with three USB 3.2 Gen 1 and one USB 2.0 downstream port. 3KV isolation between upstream and all downstream ports. 15KV ESD overvoltage protection for each port. Power supply: 5V/4A DC socket with plug-in power supply. Power can also be supplied via USB-BUS +5V (Bus-Power). 900mA power available at all three USB 3.2 Gen 1 ports. 500mA at the USB 2.0 port. Supports Battery Charging v1.2 (CDP, DBP). Sturdy plastic housing. 1x LED voltage indicator. Chipset: Genesys GL3523.

Note: USB 2.0/1.1 is not supported by the USB 3.2 Gen 1 ports.

Included in the package: EX-1182VIS, 5V/4A power supply, 1.5 m USB 3.2 Gen 1 cable, DIN rail kit, wall mounting bracket, manual.

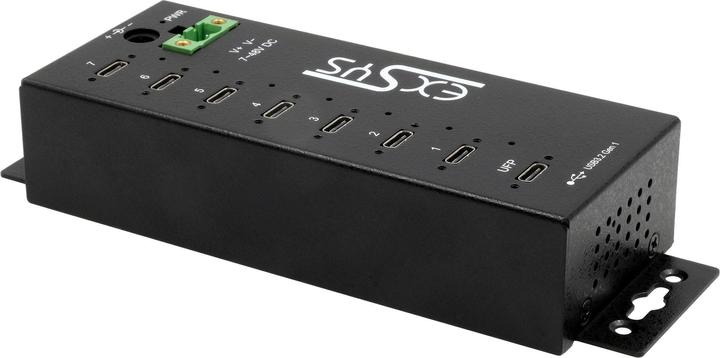

10. Exsys Managed USB 3.2 Gen 1 Hub 7-Port

The Exsys Managed USB 3.2 Gen 1 Hub 7-Port is a versatile and powerful solution for industrial applications that require a reliable connection and efficient data transfer. With seven USB-C downstream ports, this hub offers high flexibility and is backward compatible with older USB devices. It supports the USB Battery Charging Specification v1.2, which means it provides various charging modes for different devices, including specific modes for Apple and Samsung. The hub is designed for use in automation, industrial, and office applications and can be mounted in various locations thanks to its thoughtful design, whether on a wall, under a desk, or in a 19" rack. The included management software allows precise control of the USB bus voltage at each individual port and offers the option to reset the hub to factory settings. Equipped with flash memory, the hub stores the last settings, ensuring it is ready for use immediately upon the next power-up.

- Supports USB Battery Charging Specification v1.2 for efficient charging
- Management software for controlling USB bus voltage per port
- Flash memory for storing last settings
- Versatile mounting options for various applications
- Backward compatible with USB 1.1 devices.
