Best selling Electronics modules from Di-Soric
This page always stays fresh and updates automatically.

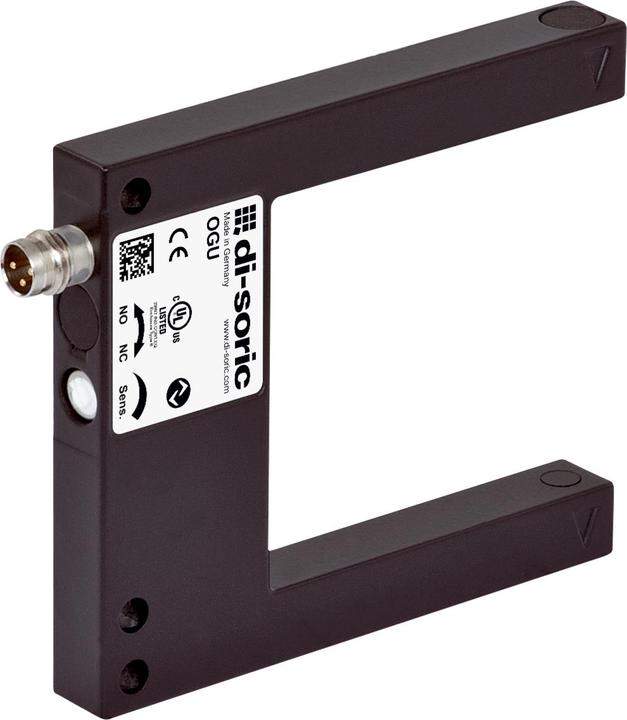

1. Di-Soric OGU 051 G3-T3 Fork light barrier 50mm red light 210244
The OGU 051 G3-T3 fork light barrier from Di-Soric is a high-precision electronic module based on the principle of optical detection. It uses a red LED as the light source and offers a fork width of 50 mm, making it ideal for various applications in automation technology. With an operating voltage of 10 to 30 V DC and a maximum idle current of 30 mA, this module is both energy-efficient and powerful. The fork light barrier is equipped with a push-pull switching output that allows for a switching capacity of up to 100 mA and can be configured as Normally Open (NO) or Normally Closed (NC). The IO-Link interface (V1.1, COM2 38.4 kBd, Smart Sensor Profile) enables easy integration into modern automation systems. The robust design made of powder-coated zinc die-cast ensures high resistance to environmental influences, while the operating temperature range of -25 to +60 °C allows for versatile use in different environments.
- Optical detection with a red LED as the light source
- Fork width of 50 mm for versatile applications
- IO-Link interface for easy integration into automation systems
- Push-pull switching output with up to 100 mA
- Robust housing made of powder-coated zinc die-cast.
2. Di-Soric Proximity switch
The inductive proximity switch from Di-Soric is a highly advanced electronic module designed for precise and reliable applications in automation technology. With a switching distance of 2 mm and an operating voltage of 10 to 30 V DC, this sensor provides an effective solution for object detection without direct contact. The digital evaluation and the pnp switching output with a maximum current of 200 mA ensure easy integration into existing systems. The sensor is available in a compact cylindrical design with a diameter of 6.5 mm and a length of 16 mm, making it ideal for applications with limited space. The stainless steel housing ensures high resistance to environmental influences, while the IP 67 protection class protects the sensor from dust and water. With an operating temperature range of -25 to +70 °C, this proximity switch is versatile and suitable for various industrial applications.
- Inductive operating principle for contactless object detection
- Increased switching distance for improved performance
- Robust stainless steel housing for high resistance
- IP 67 protection class for optimal protection against environmental influences
- Operating temperature range of -25 to +70 °C for versatile applications.
3. Di-Soric OGWSD-25 G3-T3 Frame light barrier Frame shape 65.5x55x15
Frame light barrier Evaluation: Switching, dynamic/static switchable Transmitted light source: LED Light colour: Infrared Detection area: 25 x 22 mm Operating voltage: 18 30 V DC Switching output: Push-pull, 100 mA, NO/NC Housing material: Aluminium, black (anodised) Size: 65.5 x 55 x 15 mm Connection: Plug, M8, 3-pin.
4. Di-Soric Inductive proximity sensor
Inductive proximity sensor Functional principle: Inductive Installation type: Flush Switching distance: 20 mm Operating voltage: 10 30 V DC Switching output: pnp, 200 mA, antivalent Evaluation: digital Design: Block Housing material: Plastic, PA Size: 40 x 40 mm Housing length: 67 mm Ambient temperature operating: -25 +85 °C Protection class: IP 69K Connection: Plug, M12, 4-pin.
5. Di-Soric Fork light barriers
The fork light barriers from Di-Soric are high-precision electronic modules based on the principle of optical light barriers. They are equipped with a red LED as the light source and offer a fork width of 20 mm. These devices are designed for use in a variety of applications where reliable object detection is required. The fork light barriers operate with a supply voltage of 10 to 30 V DC and feature a maximum idle current of 30 mA. They have a push-pull switching output that can be configured as both Normally Open (NO) and Normally Closed (NC). The integrated IO-Link interface allows for easy integration into modern automation systems and provides high flexibility in application. The zinc die-cast housing is powder-coated, ensuring high robustness and durability, while the operating temperature range of -25 to +60 °C enables versatile use in different environments.
- IO-Link interface (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
- High reproducibility and resolution of 0.3 mm (factory setting)
- Push-pull switching output with 100 mA
- Robust housing made of powder-coated zinc die-cast
- Operating temperature range of -25 to +60 °C.
6. Di-Soric Colour sensor
7. Di-Soric Inductive wire break sensor
The inductive wire break sensor from Di-Soric is a highly advanced electronic module designed for reliable monitoring of wire breaks in various applications. With a static evaluation mechanism, this sensor offers precise detection of wire breaks, making it ideal for use in industrial environments. The sensor has an inner diameter of 6.1 mm and is designed to maintain a minimum mounting distance of 5 mm from metal. It operates with a supply voltage of 10 to 35 V DC and provides a pnp type switching output with a maximum current of 200 mA. The robust plastic construction and IP 67 protection rating ensure high resistance to environmental influences, while the sensor can be operated in a temperature range of -25 to +70 °C. Connection is made via a 4-pin M12 connector, allowing for easy integration into existing systems.
- Maximum part speed of 35 m/s
- No-load current of up to 11 mA
- Pulse extension of 10 to 150 ms
- Robust housing material made of plastic
- IP 67 protection rating for high environmental resistance.
8. Di-Soric Laser through-beam sensor
The Di-Soric laser one-way light barrier is a high-precision electronic module designed for applications in automation technology. It operates on the principle of a one-way barrier and uses a red laser as a light source to detect objects within a range of 0 to 500 mm. With an operating voltage of 10 to 35 V DC, this module is versatile and suitable for various industrial environments. The laser class 1 ensures safe use in accordance with international standards IEC 60825-1:2014 and EN 60825-1:2014. The laser one-way light barrier is designed for operation in a temperature range of 0 to +50 °C and offers a protection class III, making it ideal for use in protected areas. Connection is made via a 3-pin M8 connector, facilitating integration into existing systems.
- Operating principle: one-way barrier
- Laser light source with red light (650 nm)
- Operating voltage of 10 to 35 V DC
- Operating temperature of 0 to +50 °C
- 3-pin M8 connector for easy integration.
9. Di-Soric OGU 050 G3-T3 Fork light barrier 40mm infrared light 210248
The OGU 050 G3-T3 fork light barrier from Di-Soric is a state-of-the-art electronic module based on the principle of optical detection. It uses an infrared LED as the light source and offers a fork width of 50 mm, making it ideal for various applications in automation technology. With an operating voltage of 10 to 30 V DC and a maximum no-load current of 30 mA, this module is both energy-efficient and powerful. The fork light barrier is equipped with a push-pull switching output that allows for a switching capacity of up to 100 mA and can be configured as Normally Open (NO) or Normally Closed (NC). The IO-Link interface (V1.1) enables easy integration into modern automation systems and provides high flexibility in data transmission.
- High reproducibility of 0.02 mm (factory setting)
- Standard resolution of 0.3 mm for precise measurements
- Robust housing made of powder-coated zinc die-cast
- Operating temperature range of -25 to +60 °C for versatile applications
- 3-pin M8 connector for easy connection options.
10. Di-Soric Cylinder sensor
Di-soric MZET 9-25 PSL magnetic field.
