Best selling Metrology from PCE Instruments
Here you’ll find the best products from PCE Instruments in the Metrology category. The ranking is based on the best-selling products from this brand within the category. In addition to sales volume, factors such as availability, pricing, and overall customer relevance also influence the order. For each product, we include a short description and the most important highlights from customer reviews, giving you a quick overview of the most popular PCE Instruments options. This page always stays fresh and updates automatically.
1. PCE Instruments Netz-Analysegerät
The network analysis device is a precise measuring instrument designed for the analysis of electrical parameters in various applications. It allows for the measurement of voltage and frequency, offering a maximum input voltage of up to 1000 volts. With a compact design that includes a height of 67 millimeters, a length of 260 millimeters, and a width of 190 millimeters, it is both portable and user-friendly. The device weighs 1.88 kilograms and is suitable for use in a temperature range of 0° to 40° C. It is calibrated to factory standards, ensuring reliable performance even in the absence of a certificate. Made in China, this analysis device is a valuable addition for professionals who require precise measurements in electrical engineering. The black color scheme gives the device a modern and professional appearance.
2. PCE Instruments Auslaufbecher zur Messung der Viskosität
The outflow cup for measuring viscosity is a precise instrument used in various industrial and scientific applications. Made in China, this cup features a robust construction with a height, length, and width of 85 millimeters each, and a weight of 353 grams. The cup is made from high-quality material and comes with a factory calibration certificate as well as an instruction manual to ensure easy handling and accurate measurements. The included glass plate enhances user-friendliness and provides a clear view of the measurement values. The outflow cup is suitable for use in a temperature range of 10° to 40° C, making it versatile. This measuring instrument is ideal for professionals who need to perform precise viscosity measurements and is suitable for both laboratory applications and industrial use.
3. PCE Instruments Strommessumformer
The PCE Instruments current measuring transducer PCE-P17I is a highly advanced isolation converter specifically designed for the galvanic separation of 0 to 20 mA signals. With a mounting width of only 6 mm, this device is ideal for DIN rail mounting, saving valuable space in control cabinets. The isolation converter ensures that signals are safely separated from one another, preventing measurement errors caused by signal overlaps. This is particularly important when multiple grounds are connected, as this can lead to inaccurate measurement values. The PCE-P17I enables precise signal processing, especially in combination with the PCE-P18, and ensures reliable data transmission to downstream devices such as the PCE-KD5. The operation of the isolation converter is possible under extreme conditions of -20 to 65 °C and a relative humidity of up to 95%, making it a robust solution for various applications in measurement technology.
- Galvanic separation of 0-20 mA signals
- Space-saving DIN rail mounting with 6 mm width
- Prevention of measurement errors due to signal overlaps
- Robust at -20 to 65 °C and 0-95% relative humidity.
4. PCE Instruments Heizhaube
PCE Instruments Heating Hood PCE-HM 10000
Manufacturer: PCE Instruments
Designation: PCE Instruments Heating Hood PCE-HM 10000
Type: Measuring Devices
Country of Origin: CN
Power Supply: 230 V AC / 50 Hz
Plug Type: Protective Contact Plug
Operating Conditions: 5 ... 40 °C, 0 ... 90 % r. H.
Storage Conditions: 5 ... 40 °C, 0 ... 90 % r. H.
Dimensions (H x D): 310 x 395 mm
Additional Dimensions: Internal Dimensions Ø315 x 175 mm
Article Type: For 10000 ml Round Flask, max. 450 °C
A heating hood is used wherever samples or liquids need to be heated in the laboratory. The liquid for heating is placed in a round flask inside the heating hood and warmed using the heating elements. A heating hood is an auxiliary device used in laboratories. It helps you heat or temper various samples, liquids, or chemicals in the lab. The round flask, which holds 5000 ml, is placed in a crocheted net and heated using the heating elements below. The device has a power of 1200 watts and reaches a temperature of 450 °C. The simple fact that the heating hood accommodates a round flask with a capacity of 10000 ml shows that a relatively large amount of liquid can be heated. Despite the large volume, it is possible to heat the entire 10 liters as quickly as possible, as it only requires a short heating time to achieve the desired result. Temperature regulation on the heating hood is done via a continuously adjustable rotary switch.
Highlights:
- Power: 1200 W
- Operating Temperature: 0 ... 450 °C
- Short Heating Time
- For 10000 ml Round Flask
- With Rotary Switch
- With Built-in Controller
Scope of Delivery:
1x Heating Hood PCE-HM 10000
1x User Manual
EAN: 4250348718471.
5. PCE Instruments Ford Becher zur Messung der Viskosität
Ford flow cup / International standard ASTM D1200, D333, and D365. Machine-manufactured, anodized aluminum with a replaceable stainless steel nozzle. Ford flow cups are used for the easy and quick measurement of liquids to determine their viscosity. However, it should be noted that this is only effective for less viscous liquids. Thick pastes and other high-viscosity substances are not suitable for measurement with a flow cup.
The design of a flow cup is standardized according to a DIN norm, ensuring consistency. It consists of a cylindrical hollow body that usually ends in a replaceable nozzle. The openings of the nozzles, like the cup itself, are subject to a specific DIN standard.
Measurement is carried out as follows: First, cover the nozzle at the bottom and fill the substance to be measured into the cup. It is important to ensure that the cup is filled to the top. An overflow channel prevents the measurement from being distorted by liquid running down the sides. Then, a glass plate is slid over the edge of the cup to remove any excess material. You can then open the nozzle again. The resulting negative pressure keeps the material in the cup. When you pull the glass plate horizontally away from the cup, you must start the stopwatch. As soon as the outflowing stream breaks for the first time, you need to stop the time and record it.
When using a flow cup, it is particularly important to ensure that it is thoroughly cleaned after each measurement, as residues in the nozzle and cup can distort subsequent results. Additionally, deep scratches or multiple scratches in the cup can lead to measurement uncertainties, as the removed material alters the volume of the cup and thus does not comply with the specified DIN standard.
6. PCE Instruments Trennwandler
The configurable measuring transducer for electrical signals is a signal doubler and signal converter for process signals. It can accept a 4-20 mA and 0-10 V DC signal at the input. The configurable measuring transducer provides excitation voltage if required. It has two outputs, with Output 1 fixed at 4-20 mA and Output 2 adjustable to either 4-20 mA or 0-10 V DC. Additionally, it features fourfold isolation between the power supply, input signal, Output 1, and Output 2. The circuit isolation prevents ground loops and the propagation of voltage spikes, protecting devices and ensuring signal integrity. The configuration system (digits and keypad) is accessible behind the front cover, allowing for easy and quick configuration. The signal doubler has a password function to restrict access to the configuration. The configurable measuring transducer for electrical signals is designed for industrial use, with the ability to integrate into a variety of applications, reduced costs, excellent quality, and optional customization of the device for individual use.
7. PCE Instruments Rund - Probenschneider
The round sample cutter impresses with its compact dimensions and robust steel housing. With the four internal blades of the round sample cutter, you can separate a 10 cm² sample (non-woven fabric, paper, leather, textile, cork) in just seconds. A quarter turn is enough to remove the sample and measure its surface weight.
8. PCE Instruments Digitalmanometer
Digital manometer PCE-DPG 6 pressure sensor for water and gases with 1/4 NPT threaded connection, adjustable backlighting, PEAK function, and battery status indicator. The pressure sensor of the PCE-DPG series is well-suited for monitoring and displaying air pressure and water pressure. Thanks to its high measurement resolution and accuracy, this pressure sensor is versatile. The current pressure is displayed as a value and simultaneously as a bar graph. The PEAK function allows the operator to see the highest and lowest measured pressure at the push of a button. With a large 2.5" display, almost all measurement values can be read directly. Possible adjustable units include Mpa, bar, Kpa, mH2o, kg/cm², psi, mmH2o, in.WC, and mbar. The response time of the pressure sensor is under 50 ms. The connection to the process is made via a 1/4" NPT connection. Typical application areas include suction control, leak testing, or pressure monitoring.

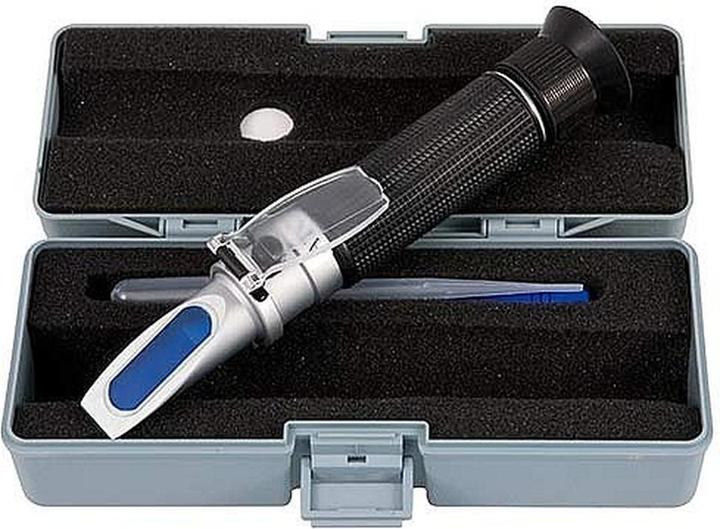

9. PCE Instruments Instruments PCE-010 Refractometer
Refractometer with automatic temperature compensation for low concentrations of emulsions. You can purchase the refractometer in our online shop.
10. PCE Instruments Datenlogger für Temperatur rel. Feuchte mit Bluetooth Interface und Touchscreen
The data logger for temperature and relative humidity with Bluetooth interface and touchscreen is a state-of-the-art measuring device designed for precise environmental monitoring. With its user-friendly touchscreen interface, it allows for easy operation and quick reading of measurement values. The logger is capable of measuring both temperature and humidity, making it ideal for applications in various fields such as storage, climate control, and research. Thanks to the integrated Bluetooth interface, the collected data can be conveniently transferred to mobile devices, enabling flexible analysis and documentation of measurement values. The compact and portable data logger comes with a sturdy carrying case that ensures safe transport and storage. Calibration is performed according to factory standards, guaranteeing reliable performance.
- Integrated Bluetooth interface for wireless data transmission
- User-friendly touchscreen for easy operation
- Compact design with a robust carrying case
- Factory-standard calibration for reliable measurements.
