Best selling Network switches from Wago
On this page you'll find a ranking of the best Wago products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

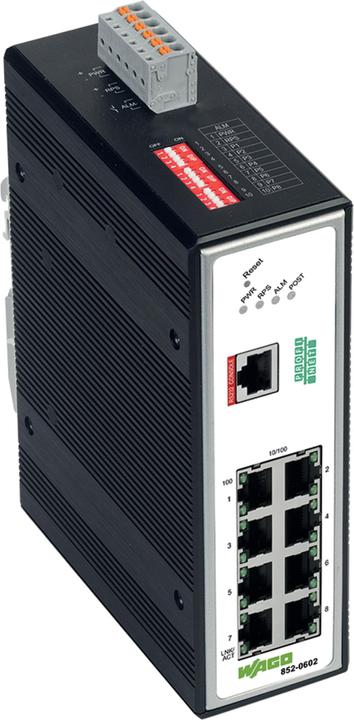

1. Wago 852-602 Industrial Managed Switch 8
Industrial Managed Switch; 8 Ports 100Base-TX; PROFINET; extended temperature range; metallic black. The 852-602 is an industrial, configurable managed Ethernet switch with 8 copper ports 10/100BASE-TX. The switch features a robust housing, redundant power supply, and functional monitoring with relays. The PROFINET certification (Conformance Class B) ensures easy integration into PROFINET automation systems via a device description file (GSD). Additionally, the device supports PROFINET Netload Class II.
The device supports flexible configuration of multi-port mirroring via the device description file or web-based management. With the help of function blocks, the cyclic diagnosis of the PROFINET switch can be efficiently implemented in the TIA Portal. An application note is available for this purpose.
Features:
- Web-based/SNMP management
- Redundant DC power supply
- Power supply range: DC 12 … 60 V
- DIP switch for enabling alarm functions
- Fully compliant with standards IEEE802.3, 802.3u, 802.3x, 802.1d, 802.1w, 802.1s, 802.1Q, 802.1p
- Media Redundancy Protocol (MRP) as Manager (MRM) or Client (MRC), redundant ring
- Non-blocking, Store-and-Forward switching, Rapid Spanning Tree Protocol (RSTP)
- Auto-negotiation and AUTO-MDI/MDI-C (Crossover)
- VLAN (802.1Q) VI
- IGMP Snooping
- Port configuration, status, statistics
- Port trunking and multi-port mirroring
- SNMP v1/v2c/v3 and RMON
- Time synchronization using SNTP
- Storm control, bandwidth limitation, and loop detection.

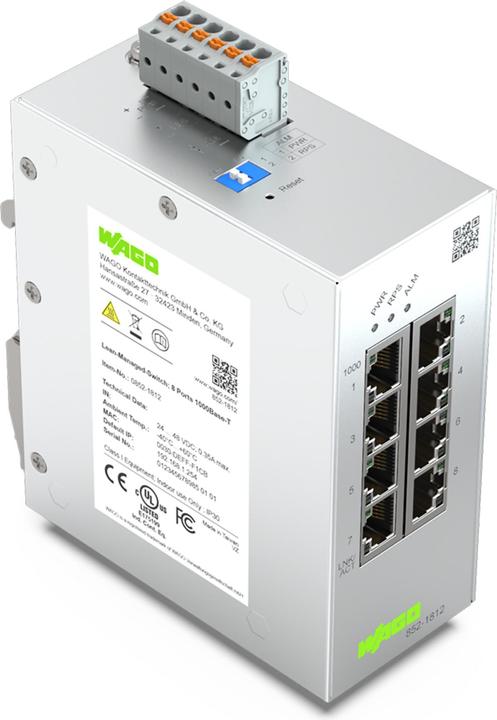

2. Wago Lean Managed Switch
WAGO GmbH & Co. KG Lean-Managed-Switch 852-1812
Manufacturer: WAGO GmbH & Co. KG
Designation: Lean-Managed-Switch 8-port 1000BASE-T
Type: 852-1812
Ethernet: Yes
Number of 10/100/1000 Mbps RJ45 ports: 8
Max. PoE power: 0 W
Mounting type: DIN rail
Layer 2: Yes
Layer 3: No
Manageable: Yes
Power over Ethernet (PoE): Other
Protection class (IP): IP30
Height: 116 mm
Width: 50 mm
Depth: 100 mm
EAN: 4066966073003.

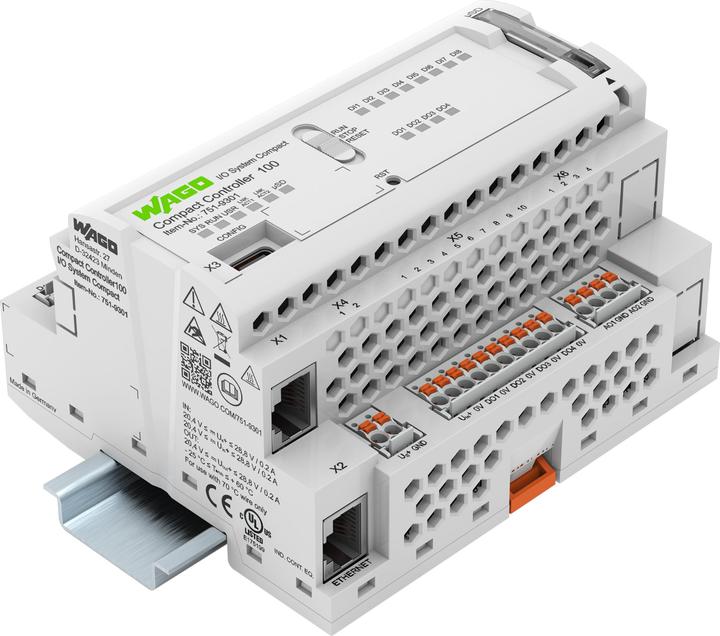

3. Wago Compact
Compact Controller 100
8DI 4DO 2AI 2AO 2NI1K/PT1K 1RS485
2 x Ethernet
The Compact Controller 100, equipped with a real-time Linux® operating system, offers users complete freedom: The compact controller can be freely programmed with CODESYS V3, but it can also be used for engineering independent of IEC 61131, for example with Node-RED, Python, or C++. Additionally, Docker® can be easily installed on the device as a virtualization environment. This transforms the Compact Controller 100 into a fully-fledged IIoT device with gateway functionality. WAGO optimally combines the requirements from two worlds in one device and consistently adheres to its competency claim "Automation meets IT." Another advantage of the Compact Controller 100 is that, thanks to its design as a rail-mounted device (REG), it can also be installed in compact distribution boards according to DIN 43880. The I/O unit is housed together with the controller in a compact enclosure, thus requiring no additional space for further control components. The wiring level is detachable, which offers advantages during installation and commissioning.
Your benefits:
Flexible, fast, and easy engineering.
Controller with real-time Linux® operating system.
Compact controller with I/Os in a REG form factor enclosure.
4. Wago Industrial Ethernet Switch ECO Switch, 8 Ports 1000Base T
Through the eight ports of the switch, multiple segments can be formed to reduce network congestion, and each user node can be assigned its own bandwidth. The 852-1112 is a cost-effective solution to meet the growing demand for IP-based industrial communication. The switch is easy to configure and install, making it particularly suitable for small and medium-sized networks.
Features:
- 8 Ethernet ports 10/100/1000 Mbps Auto-negotiation
- Diagnostic LEDs on the front
- Supports Auto-MDI/MDI-X functions
- Half or full duplex transmission mode per port
- Store-and-forward switching method
- Integrated address look-up table, supports up to 8000 absolute MAC addresses
- Surge protection
- IEEE 802.3x flow control in full duplex mode
- For DIN rail mounting 35.

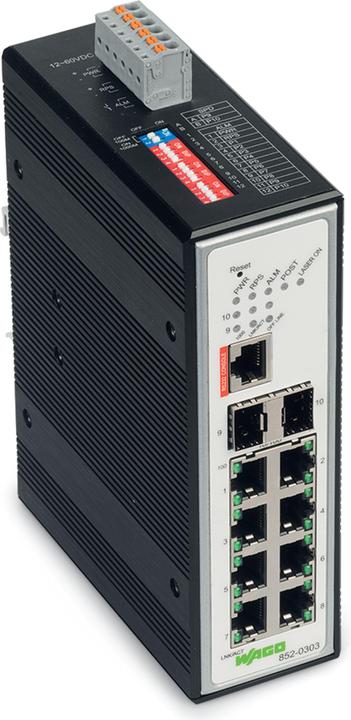

5. Wago 852-303 Industrial Managed Switch 8 PORST 100BASE-TX 2-Slot - Switch - 1 Gbps
The Wago 852-303 Industrial Managed Switch is a powerful and versatile Ethernet switch specifically designed for industrial applications. With 8 ports for 10/100BASE-TX and 2 SFP slots for 100BASE-FX/1000BASE-FX/SX, this switch offers a flexible network architecture that can be tailored to the specific requirements of businesses. The robust housing and redundant power supply ensure high reliability and availability, while the integrated function monitoring with relays allows for proactive system monitoring. The switch supports a variety of Ethernet management options, enabling easy configuration and management through web-based interfaces or SNMP. These features make the Wago 852-303 an ideal solution for demanding industrial environments where stability and performance are of utmost importance.
- Web-based and SNMP management for easy configuration and monitoring
- Redundant DC power supply for increased system availability
- Support for VLAN (802.1q) for improved network segmentation
- Non-blocking, store-and-forward switching for efficient data transmission
- Rapid Spanning Tree Protocol (RSTP) to prevent loops in the network.
Network switches
EUR1319,–
Wago 852-303 Industrial Managed Switch 8 PORST 100BASE-TX 2-Slot - Switch - 1 Gbps
8 Ports

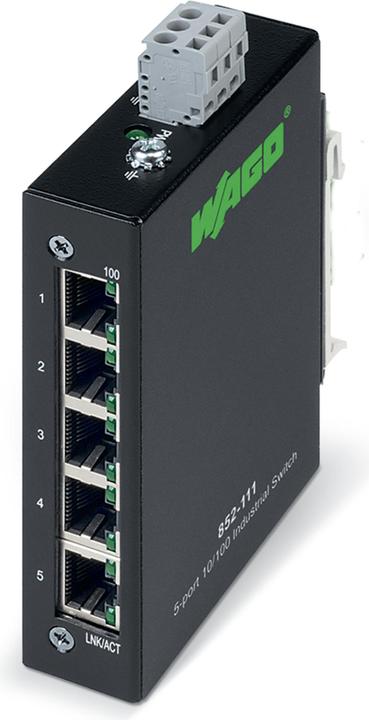

6. Wago Industrial Ethernet Switch ECO 5 Port
The 852-111 is a cost-effective solution to respond to the growing demand for IP-based industrial communications. The switch is easy to configure and install, and is particularly suitable for small and medium-sized networks.

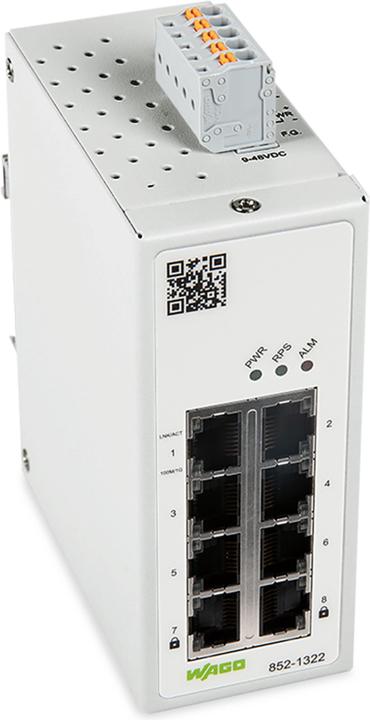

7. Wago 852-1322
The 852-1322 is an industrial, configurable Ethernet switch with 8 ports 10/100/1000BASE-T. Data encryption is performed according to IEEE802.1AE (MAC Security Standard) for communication over ports 7 and 8. This functionality, along with its compact dimensions, makes this product suitable for retrofitting network security in the ongoing operation of automation systems. The customer application remains unchanged. Optional authentication of additional network participants is port-specific and follows IEEE 802.1X and RADIUS server protocols. The switch features a robust housing and redundant power supply.
Features:
- Web-based (HTTP(S))
- Configuration and diagnostics via SNMPv3
- Redundant DC power supply
- Power supply range: DC 9 … 48 V
- Fully compliant with standards IEEE802.3, 802.3u, 802.3x, 802.3ab, 802.1p, 802.1X, 802.1Q, 802.1AE
- Non-blocking, store-and-forward switching
- Auto-negotiation on all 10/100/1000BASE-T ports
- Auto-MDI/MDIX (Crossover) on all 10/100/1000BASE-T ports
- SNMP v1/v2c/v3.

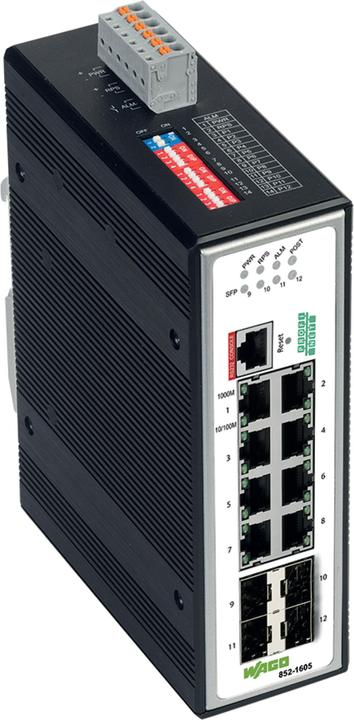

8. Wago 852-1605 INDUSTRIAL-MANAGED-SWITCH
Industrial Managed Switch; 8 Ports 1000Base-T; 4-Slot 1000BASE-SX/LX; PROFINET; extended temperature range; metallic black. The 852-1605 is an industrial, configurable managed Ethernet switch with 8 copper ports 10/100/1000BASE-T and 4 SFP slots 1000BASE-SX/LX (SFP modules are available optionally). The switch features a robust housing, redundant power supply, and functional monitoring with relays. The PROFINET certification (Conformance Class B) ensures easy integration into PROFINET automation systems via the device description file (GSD). Additionally, the device supports PROFINET Netload Class II. It allows for flexible configuration of multi-port mirroring through the device description file or web-based management. With the help of function blocks, the cyclic diagnosis of the PROFINET switch can be efficiently implemented in the TIA Portal. An application note is available for this purpose.
Features:
- Web-based/SNMP management
- Redundant DC power supply
- Power supply range: DC 12 … 60 V
- DIP switch for enabling alarm functions
- Fully compatible with standards IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1d, 802.1w, 802.1s, 802.1Q, 802.1p
- Media Redundancy Protocol (MRP) as Manager (MRM) or Client (MRC), redundant ring
- Non-blocking, Store-and-Forward Switching, Rapid Spanning Tree Protocol (RSTP)
- Auto-negotiation and AUTO-MDI/MDI-C (Crossover)
- VLAN (802.1Q) VI
- DGM-Snooping
- Port configuration, status, statistics
- Port trunking and multi-port mirroring
- SNMP v1/v2c/v3 and RMON
- Time synchronization using SNTP
- Storm control, bandwidth limiting, and loop detection.

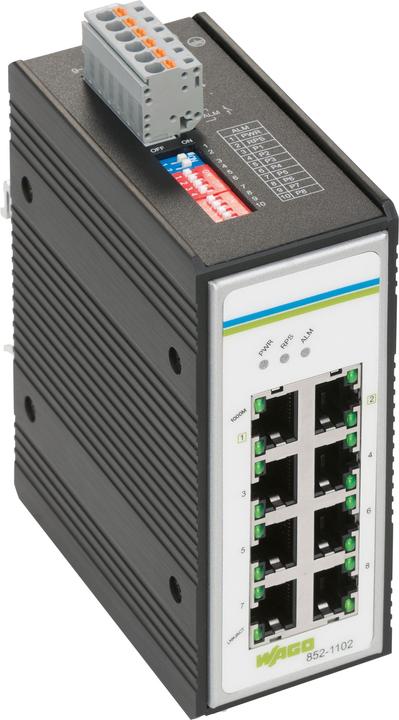

9. Wago Industrial switch 8-port 1000BASE-T
Industrial Switch 8 Ports 1000Base-T black
The Switch 852-1102 is an industrial unmanaged Ethernet switch with 8 Gigabit Ethernet ports designed for the easy setup of small to medium networks. Its slim design with a DIN rail adapter allows for straightforward installation in control cabinets while providing high resistance to vibrations and shocks. The automatic detection of transmission rates (Auto-negotiation) and the self-detection of send and receive lines (Auto MDI-X) enable simple plug-and-play operation, helping to save costs and time during commissioning.
Status LEDs, a redundant power supply, and a configurable alarm contact via DIP switch enhance the redundancy and diagnostic capabilities of the switch, ensuring higher availability during operation.
Features:
- Redundant DC power supply
- Wide supply voltage range: 9-57 V
- DIP switch for enabling alarm functions
- Fully compliant with IEEE802.3, 802.3u, 802.3ab standards
- Non-blocking, store-and-forward switching
- Auto-negotiation on all 10/100/1000BASE-T ports
- Auto-MDI/MDIX (Crossover) on all 10/100/1000BASE-T ports
- Integrated address lookup table, supports up to 8000 absolute MAC addresses
- Surge protection
- Prioritization of Ethernet data packets (PROFINET protocol, EtherType=0x8892) according to IEEE802.1p.

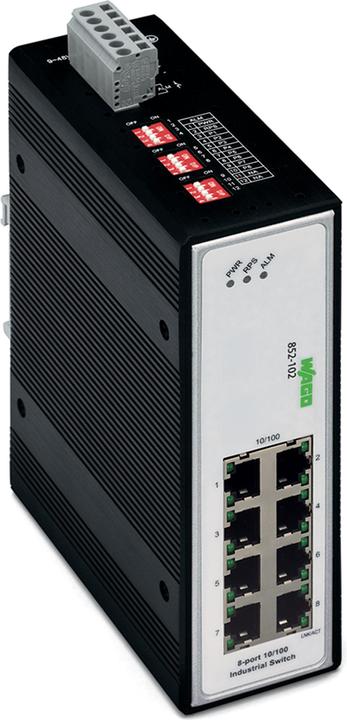

10. Wago 852-102 Industrial switch 8 ports
Industrial Switch 8 Ports 100Base-TX black
The Switch 852-102 is an industrial unmanaged Ethernet switch with 8 Fast-Ethernet ports designed for easy setup of small to medium networks. Its slim design with a DIN rail adapter allows for straightforward installation in control cabinets while providing high resistance to vibrations and shocks. The automatic detection of transmission rates (Auto-negotiation) and the self-detection of send and receive lines (Auto MDI-X) enable simple plug-and-play operation, helping to save costs and time during commissioning.
Status LEDs, a redundant power supply, and a dip switch-configurable alarm contact enhance the redundancy and diagnostic capabilities of the switch, ensuring higher availability during operation.
Features:
Redundant DC power supply.
Wide supply voltage range: 9-48 V.
DIP switch for enabling alarm functions.
Fully compliant with IEEE802.3, 802.3u standards.
Non-blocking, store-and-forward switching.
Auto-negotiation on all 10/100BASE-TX ports.
Auto-MDI/MDIX (crossover) on all 10/100BASE-TX ports.
