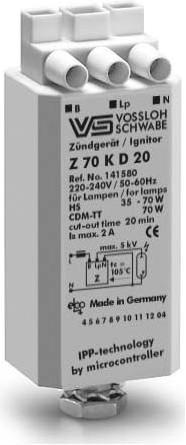

Houben superimposed igniter 141580

Manufacturer: Houben
Designation: Superimposed igniter up to 70W
Type: 141580
Electronic: Yes
Suitable for high pressure sodium lamp: Yes
Suitable for compact fluorescent lamp: No
Suitable for metal halide lamp: Yes
Suitable for low-pressure sodium lamp: No
Suitable for fluorescent lamp: No
Suitable for lamp wattage: 35-70 W

More details:
Superimposed ignitor with IPP technologies for HS lamps and C-HI-TT/ET lamps with base E27.
Nominal frequency: 50-60 Hz
Ignition voltage: 1.8-2.3 kV
Phase position of ignition pulse: 60-90 °el and 240-270 °el
Max. lamp current: 2 A
Load capacitance: 20-200 pF
Dissipation: < 0.6 W
Internal heating: < 5 K
Max. perm. housing temperature: 105 °C
Screw terminals: 0.75-4 mm²
Fixing: Threaded bolt with pre-mounted toothed lock washer and nuts
Switch-off time: 1216 sec. at 50 and 60 Hz
For luminaires of protection class I and II
Weight: 145
Type: Z 70K D20, EAN: 4014364313610.
