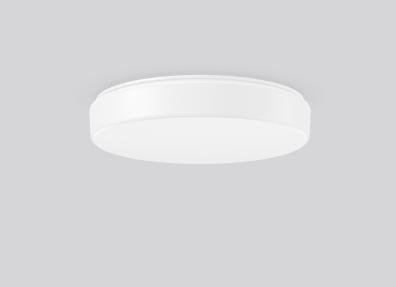

RZB LED wall/ceiling luminaire 672397.002

Manufacturer: RZB
Designation: LED wall/ceiling luminaire 3000K, ws
Type: 672397.002
Mounting type: Wall surface/ceiling surface mounting
Function: Escape route lighting
Suitable for type of marking: Other
With pictogram: No
Monitoring device: Without
Type of switching: Continuous/standby
With remote switch connection: No
With remote control: No
Power supply: Central (central battery)
Battery type: Other
Illuminant: LED not replaceable
With illuminant: Yes
Suitable for number of illuminants: 1
Lampholder: Without
Number of luminaire heads: 1
Material of housing: Steel
Housing colour: White
Material of cover: Plastic opal
Voltage type: AC/DC
Rated voltage: 220-240 V
Rated LED current at constant current: 121-132 mA
Control gear: Not required
Replaceable control gear: No
Light distributor: Without
Constant luminous flux control: No
Protection class (IP): IP40
Protection class (NEMA): Other
Impact resistance: IK03
Protection class: I
Luminaire with limited surface temperature "D mark": No
Rated ambient temperature according to IEC 62722-2-1: 25 °C
Max. system wattage: 29 W
Rated luminous flux according to IEC 62722-2-1: 2700 lm
Luminous flux in standby mode: 720 lm
Colour temperature: 3000 K
Height/depth: 93 mm
Outer diameter: 460 mm
Type of wiring: Suitable for through-wiring
Number of poles: 3
Conductor cross-section: 2.5 mm²
Type of connection: Plug-in connection

Further details: Decorative round surface-mounted luminaire for escape route lighting. Powder-coated metal fitting. Diffuser made of non-yellowing plastic (PMMA) opal. Fixing of diffuser with patented locking technology (press lock). Suitable for ceiling surface-mounting and wall surface-mounting. Control gear suitable for DC voltage, suitable for central emergency power supply.
