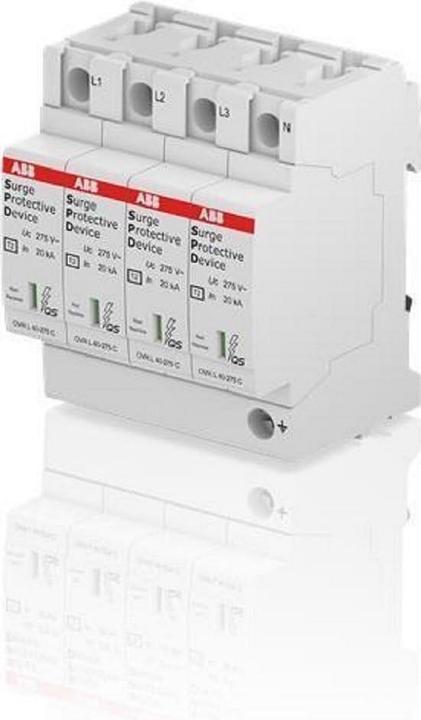

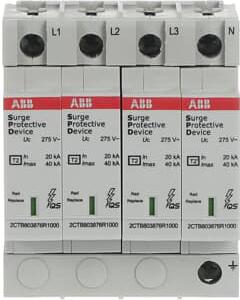

ABB OVR T2 4L 40-275 P OVRT24L40-275PQS QS SPD Type 2 for 230/400V TN-S
Price in EUR including VAT
Delivered between Thu, 16/4 and Sat, 18/4
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
free shipping
Product details
Surge protective devices SPD Type 2 with thermal monitoring QuickSafe® are designed to protect against indirect lightning strikes and switching surges. They are installed as close as possible to the supply point of the electrical system. All OVR T2 consist of a base unit and a replaceable protection module. They are equipped with a mechanical function indicator, and the TS variants feature a potential-free changeover contact. They are compatible with the System pro M compact series and can be connected to it via phase rails. Their main application is in sub-distributions and final circuits.
Type: OVR T2 4L 40-275 P QS
Type T2 surge arrester.
Surge protection type | Surge arrester |
Number of conductors | 4x |
Mounting type | Top-hat rail |
Test class | Type 2 |
Item number | 22613767 |
Manufacturer | ABB |
Category | Surge protection |
Manufacturer no. | 2CTB803873R5600 |
Release date | 7/10/2022 |
External links |
Colour | Orange |
Exact colour description | Orange |
Material group | Plastic |
Surge protection type | Surge arrester |
Number of conductors | 4x |
Lightning impulse current | 160 kA |
Rated leakage surge current | 40 kA |
Nominal voltage | 230 V |
Mounting type | Top-hat rail |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂ emissions | 26,2 kg |
Climate contribution | EUR 0,67 |
Weight | 500 g |
Product Safety |
Length | 12 cm |
Width | 9.40 cm |
Height | 8.50 cm |
Weight | 421 g |
