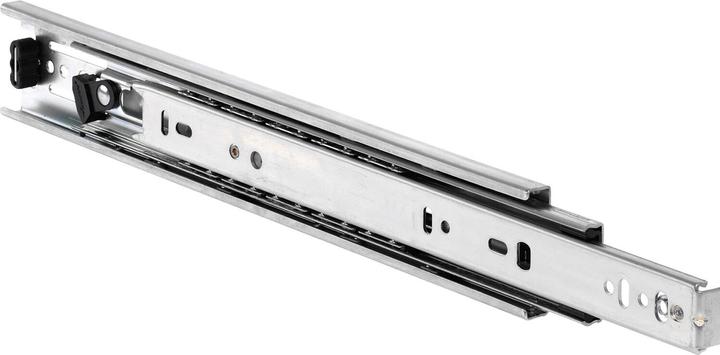

Accuride Full-extension ball bearing slides 3832DO with detent
Only 4 pieces in stock at supplier
Product details

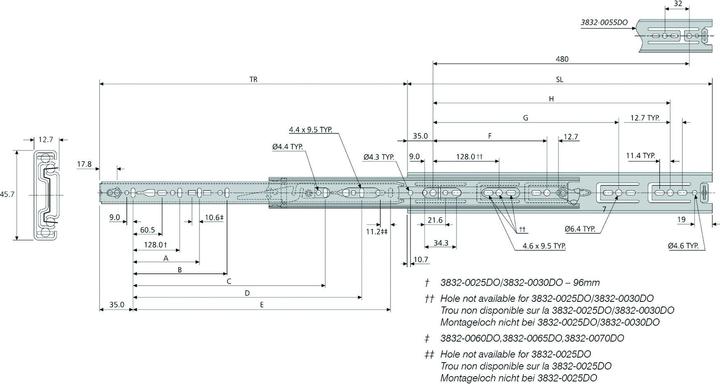

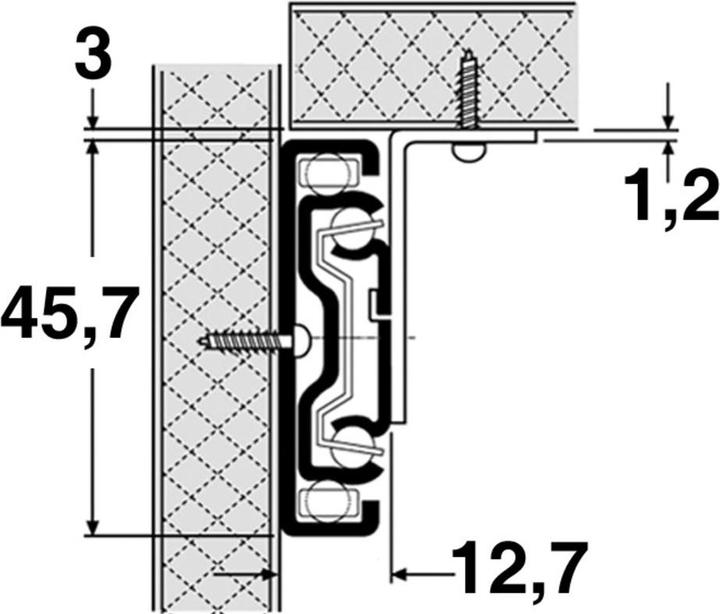

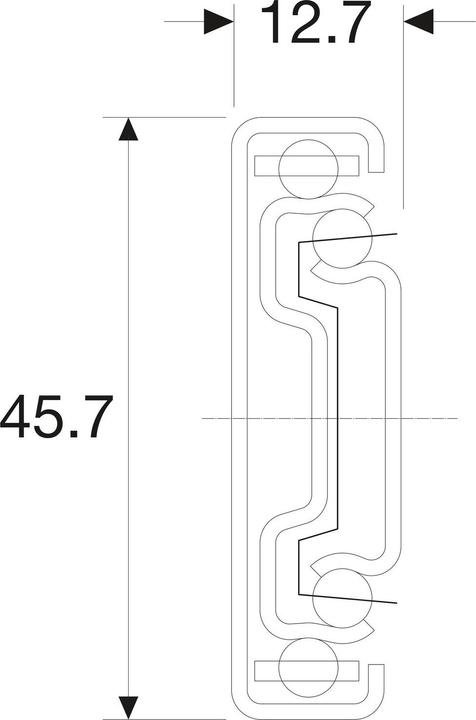

Optional angle for floor mounting. Adjustment knobs for drawer (3.2 mm) eccentric - height adjustment of 1.6 mm up/down. Rail thickness 12.7 mm, rail height 45.7 mm.
Note: Recommended fasteners: Wood screw 4 mm/Euro screw 6 mm.
The rail length should not exceed the drawer width.
Note on load capacity: All fastening positions must be used to achieve the maximum load capacity. The load capacity refers to a dynamic cycle of 80,000 repetitions.

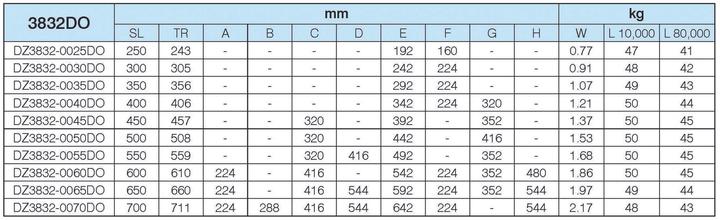

Load capacity (kg): 43, Type: Accuride 3832-DO, Design: Full extension, Rail length (mm): 350, Factory number: DZ3832-0035DO, Material: Galvanized steel, Extension path (mm): 356, Brand: Accuride, Mounting type: Side mounting, Features: Front quick release, Locking in extended position. Content summary (GT): 1.
Extension type | Ball pull-out |
Max. load | 45 kg |
Items per sales unit | 10 Piece |
Length | 19 mm |
Exact colour description | Grey |
Material | Steel |
Item number | 10870921 |
Manufacturer | Accuride |
Category | Drawer runners |
Manufacturer no. | DZ3832-0035DO |
Release date | 28/3/2019 |
External links |
Colour | Grey |
Exact colour description | Grey |
Material group | Metal |
Material | Steel |
Surface finish | Chromated |
Extension type | Ball pull-out |
Closing function | Undamped |
Max. load | 45 kg |
Extract path | 356 mm |
mounting style | Flying |
Country of origin | Mexico |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 10 Piece |
Length | 19 mm |
Width | 12.70 mm |
Height | 30 mm |
