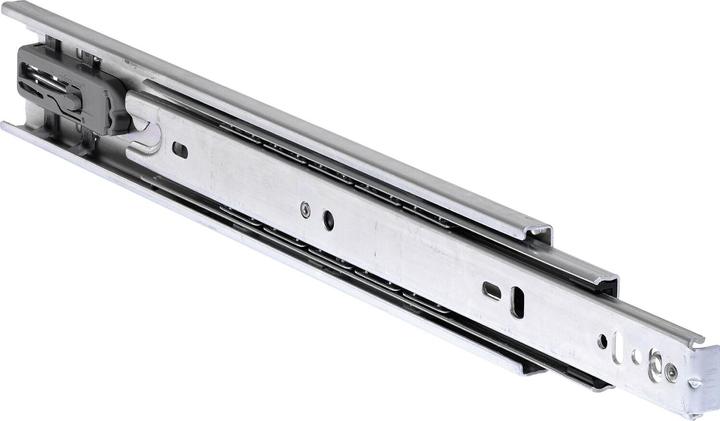

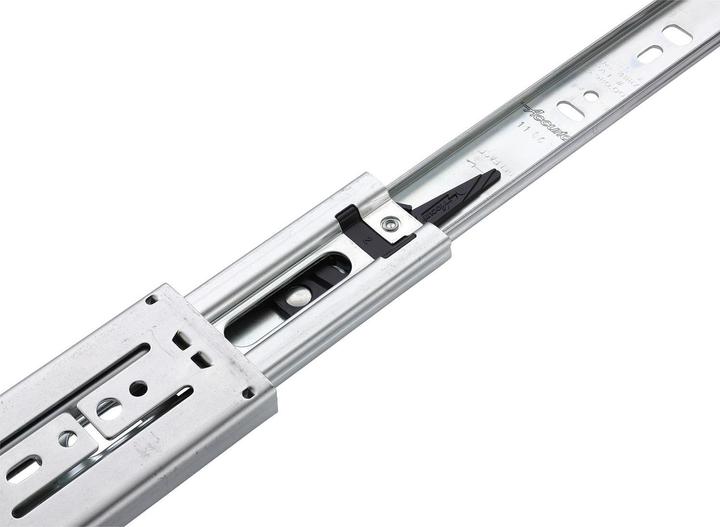

Accuride Full-extension ball bearing slides 3832SC with self-closing feature 14-27 N
More than 10 pieces in stock at supplier
Product details

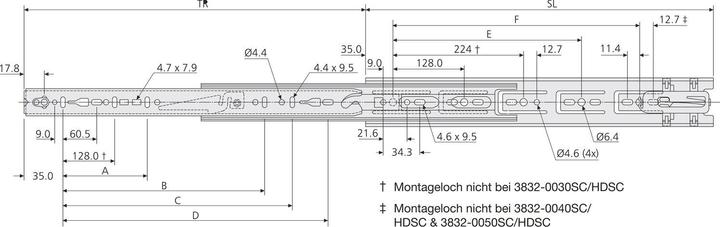

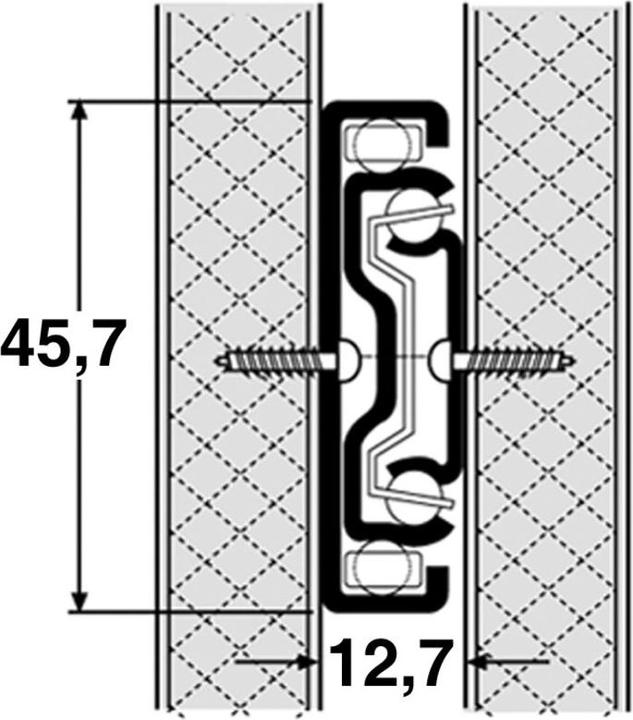

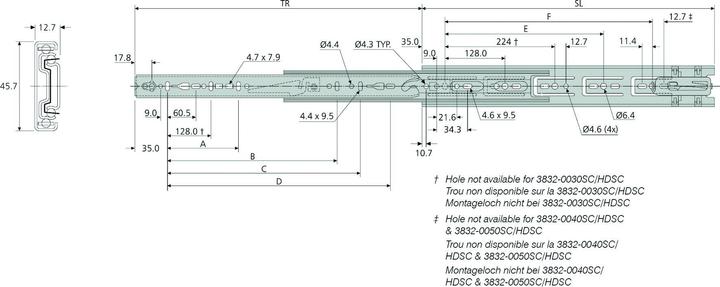

Closing/opening force 14 - 27. Adjustment cam for drawer (3.2 mm). Eccentric height adjustment of 1.6 mm up/down. Optional mounting angle for floor installation. Rail thickness 12.7 mm, rail height 45.7 mm.
Note: Recommended fasteners: Screw M4/Wood screw 4 mm/Euro screw 6 mm, max. head height 2.5 mm/ø9.6 mm.
The rail length should not exceed the drawer width.
Note on load capacity: All mounting positions must be used to achieve the maximum load capacity. The load capacity refers to a dynamic cycle of 80,000 repetitions.

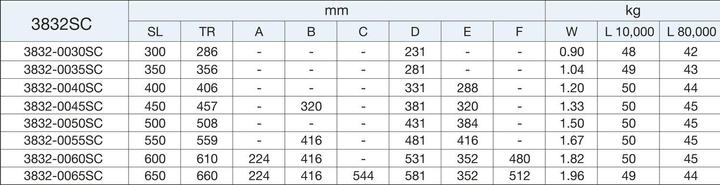

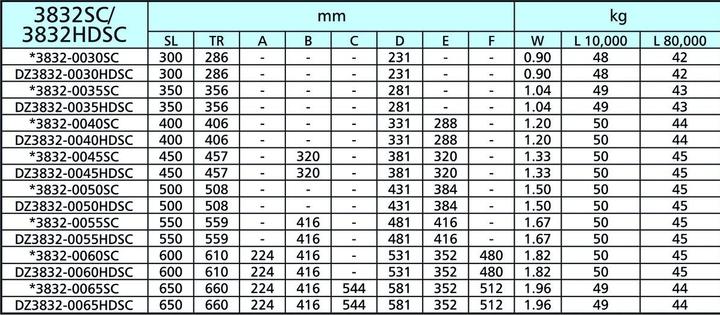

Load capacity (kg): 42. Type: Accuride DZ3832-SC. Design: Full extension. Material: Galvanized steel. Rail length (mm): 300. Factory number: DZ3832-0030S. Features: Self-closing, front quick release, locking in closed position. Extension path: 286. Brand: Accuride. Mounting type: Side mounting. Contents (GT): 1.
Extension type | Ball pull-out |
Max. load | 45 kg |
Items per sales unit | 2 Piece |
Length | 19 mm |
Exact colour description | Grey |
Material | Steel |
Item number | 10870920 |
Manufacturer | Accuride |
Category | Drawer runners |
Manufacturer no. | DZ3832-0030SC |
Release date | 28/3/2019 |
External links |
Colour | Grey |
Exact colour description | Grey |
Material group | Metal |
Material | Steel |
Surface finish | Galvanized |
Extension type | Ball pull-out |
Closing function | Undamped |
Max. load | 45 kg |
Extract path | 286 mm |
mounting style | Flying |
Country of origin | Mexico |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 2 Piece |
Length | 19 mm |
Width | 12.70 mm |
Length | 30 cm |
Width | 4.70 cm |
Height | 2.50 cm |
Weight | 904 g |
