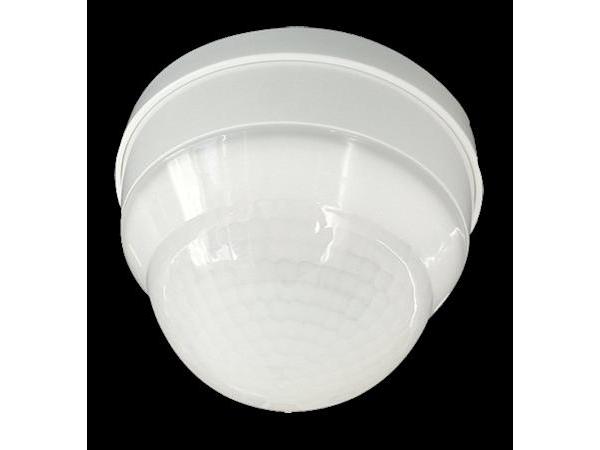

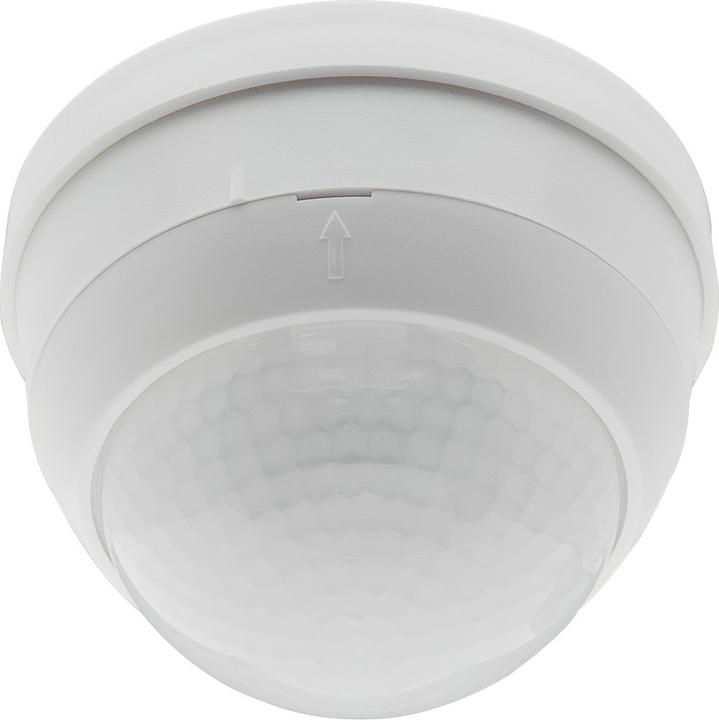

BEG Brück Electronic Presence Detector PD4-S-AP

Manufacturer: BEG Brück Electronic
Designation: Presence Detector Slave
Type: PD4-S-AP
Design: Motion Detector
Sensor Type: Passive Infrared
With DALI Interface: No
HVAC Control: No
Animal Passage: No
Under-Crawl Protection/Backfield Monitoring: No
Backfield Monitoring: No
Networkable: No
Optimal Mounting Height: 2.5 m
Stairwell Monitoring: Yes
Bypass Switch: No
Max. Range to One Side: 12 m
Max. Presence Area: 32 m²
Max. Frontal Range: 8 m
Detection Field Diameter on Floor: 24 m
Suitable for Wireless Transmission: No
Remote Controllable: No
With Remote Control: No
Adjustable Response Brightness: No
With Signal Unit: No
Teach Function for Response Brightness: No
Dimming Function with Dimming Insert: No
Mounting Type: Surface Mounted
Suitable for Ceiling Mounting: Yes
Suitable for Wall Mounting: No
Material: Plastic
Material Quality: Other
Halogen-Free: Yes
Surface Protection: Untreated
Surface Finish: Matte
Antibacterial Treatment: No
Color: White
RAL Number (Similar): 9010
Transparent: No
Protection Class (IP): IP54
Impact Resistance: IK04
Voltage Type: AC
Frequency: 50..60 Hz
Nominal Voltage: 110..240 V
Switch-Off Delay: 0 s
Switch-On Delay: 0 s
Suitable for C-Load: No
Temperature: -25..50 °C
Number of Switching Zones: 450
Control Current: 1 mA
Alarm Function: No
With Acoustic Sensor: No

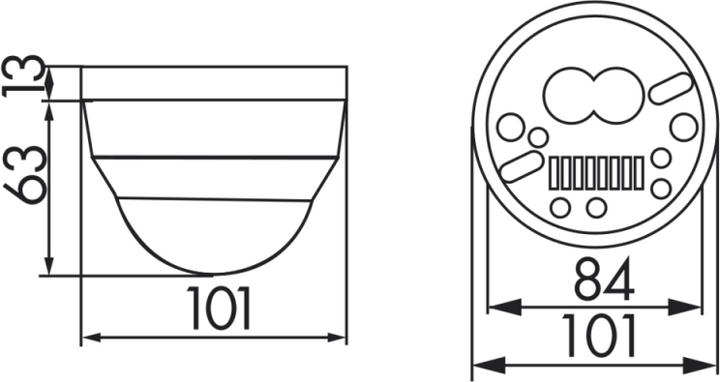

Height: 76 mm
Diameter: 101 mm
With Connection Cable: No
Length of Connection Cable: 0 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

BEG Brück Electronic Presence Detector PD4-S-AP: Additional Details
Slave device with a large detection range, designed to extend the detection range of a master device, sends a switching pulse to the master device upon detecting movement regardless of ambient brightness, compatible with 230 V master devices; for exceptions, please refer to the respective master device.
EAN: 4007529921423.
