Description

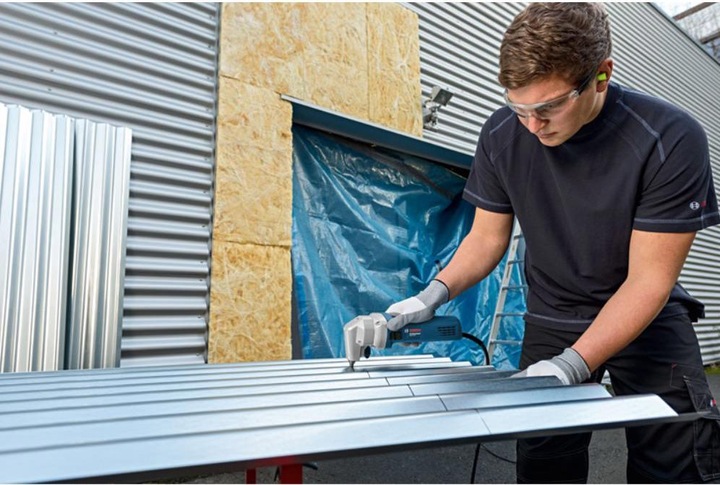

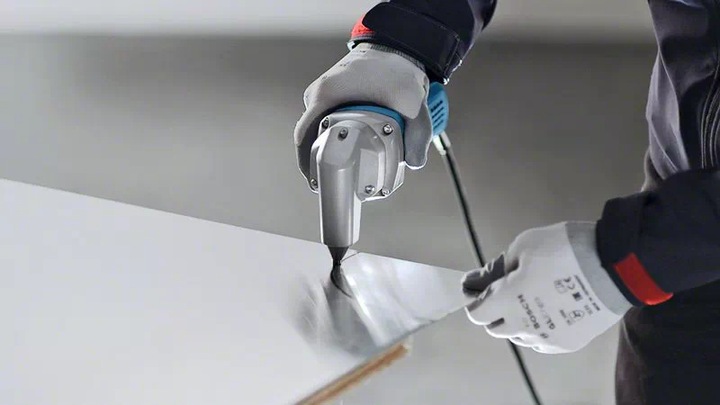

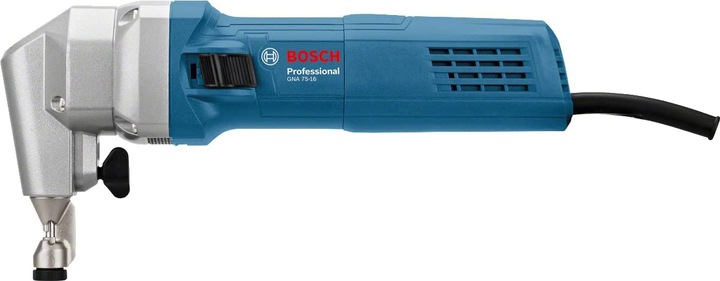

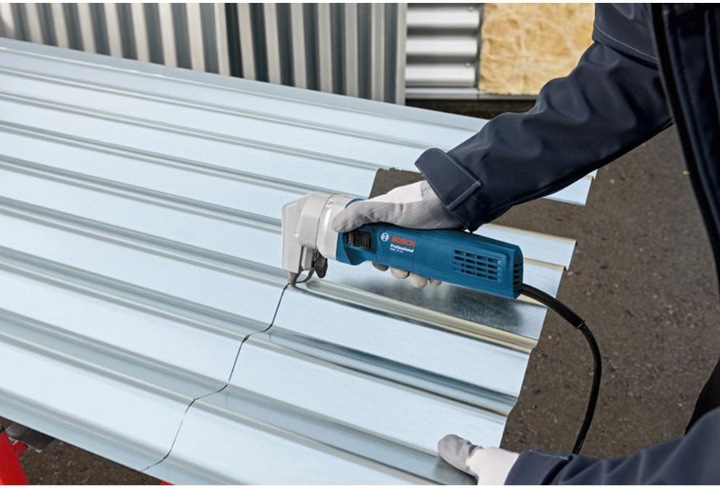

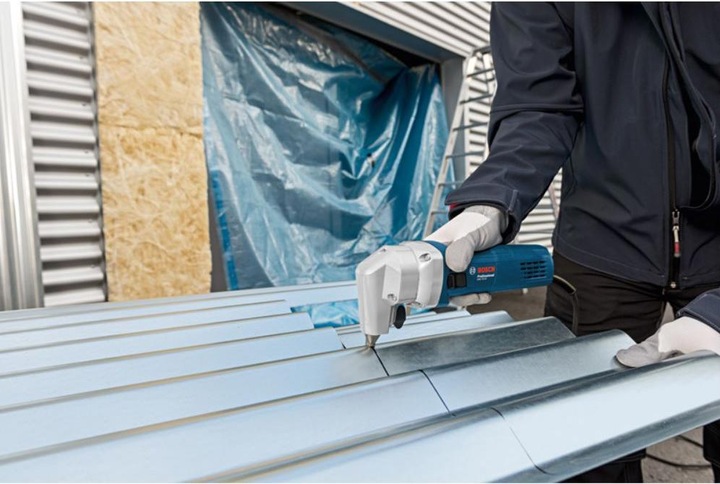

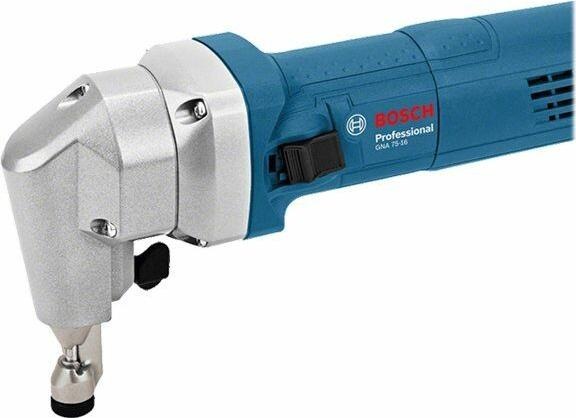

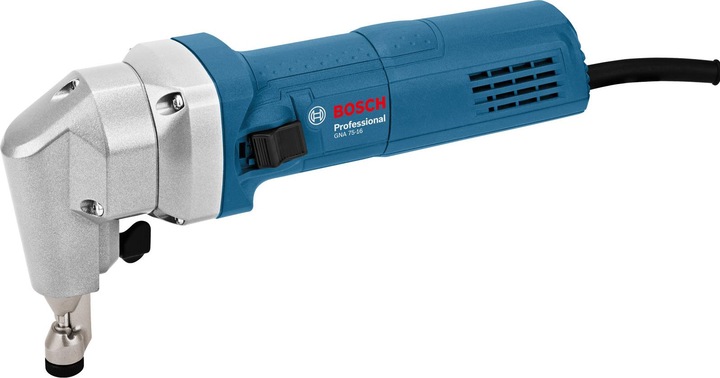

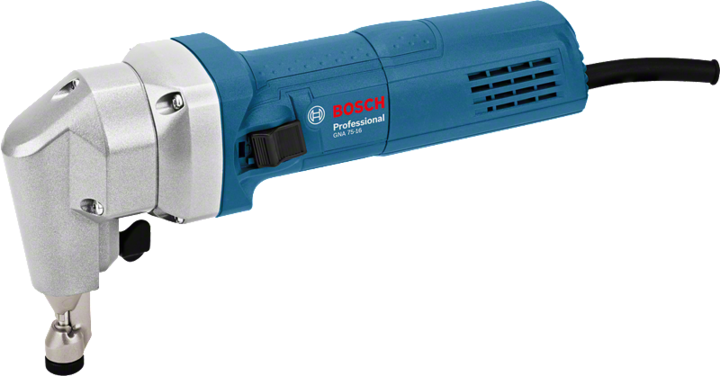

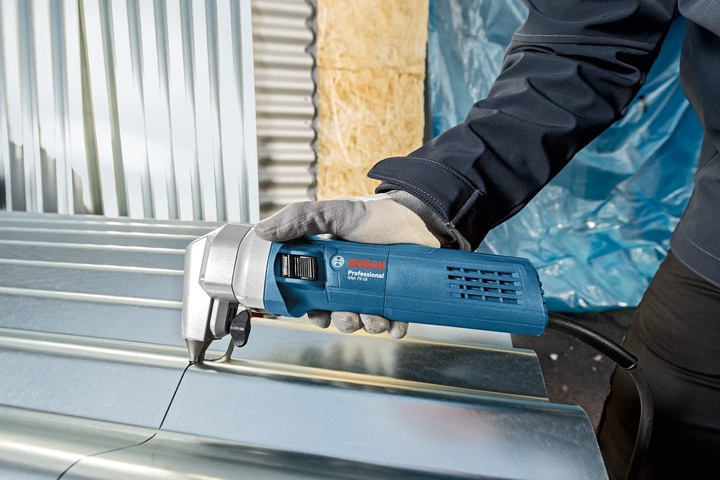

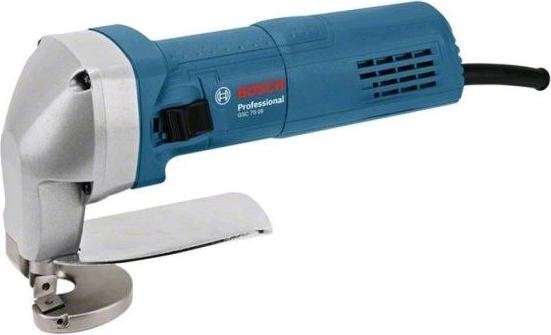

GSC 75-16 Shears. The powerful Bosch shears from the 750 W category: ideal for a variety of applications. The strong 750 W motor enables cutting of different materials. Perfect handling due to the narrow grip circumference. The design of the shear head ensures excellent guidance on curves and optimal visibility of the cutting line. Easily replaceable 4-sided reversible blades. Included in the delivery: hex key SW 3, 1 x upper and lower blade for sheet metal shears.

Specifications

Optimal visibility of the cutting line

Powerful 750-watt motor

Easily replaceable 4-sided reversible blades

Technical details:

Processable material steel up to 400 N/mm² at 1.6 mm

Minimum radius 35 mm

Stroke rate, under load 4000 min-1

No-load stroke rate 5200 min-1

Weight 1.7 kg

Tool dimensions (length) 254 mm

Tool dimensions (height) 142 mm

Cutting capacity steel (400 N/mm²), max. 1.6 mm

Cutting capacity steel (600 N/mm²), max. 1.2 mm

Cutting capacity steel (800 N/mm²), max. 0.7 mm

Cutting capacity aluminum (200 N/mm²), max. 2.2 mm

Nominal input power 750 W

Output power 400 W

Vibration emission value ah [cutting sheet metal] 6.0 m/s²

Uncertainty K [cutting sheet metal] 1.5 m/s²

Voltage 230 V

Packaging dimensions (width) 159 mm

Packaging dimensions (length) 389 mm

Packaging dimensions (height) 88 mm

Packaging dimensions (width x length x height) 159 x 389 x 88 mm

Delivery includes:

Hex key SW 3

1 x upper and lower blade for sheet metal shears.
