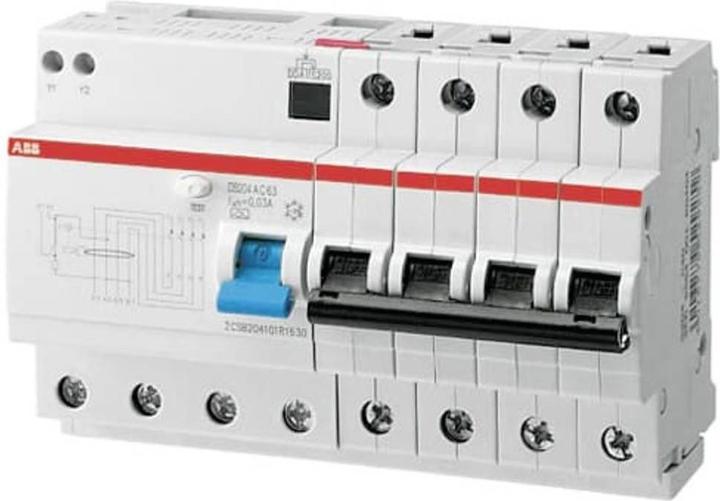

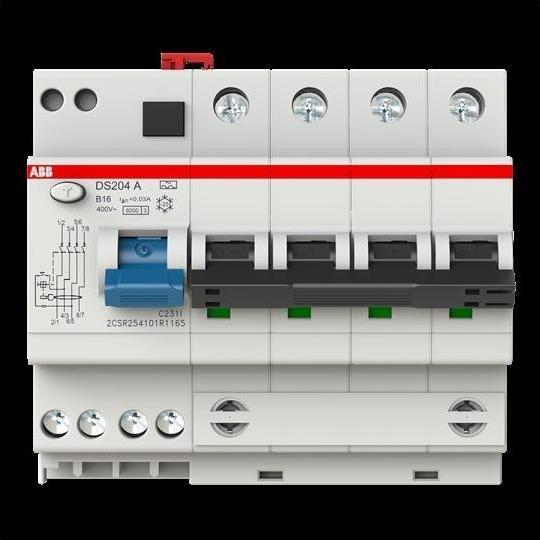

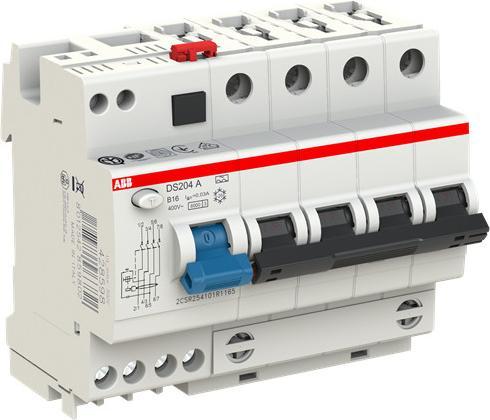

ABB Stotz S&J RCD/MCB Switch DS204A-B16/0.03

Manufacturer: ABB Stotz S&J
Designation: RCD/MCB Switch
Type: DS204A-B16/0.03
Rated Current: 16 A
Rated Residual Current: 30 mA
Number of Protected Poles: 4
Switching Neutral Conductor: No
Tripping Characteristic: B
Breaking Capacity: 6 kA
Number of RCD/MCB Combinations: 1
Wiring on Terminal Block: No
Height: 93 mm
Width: 105 mm
Depth: 69 mm

Further Details: RCD/MCB combinations (RCBOs) provide personal and property protection as well as protection against electrically ignited fires in accordance with DIN VDE 0100-410 and DIN VDE 0100-530. They ensure protection for 1P+N, 2P, 3P+N, or 4P circuits against overload and short-circuit currents, protection against sinusoidal alternating currents and pulsating currents with a smooth DC residual current component of up to 6 mA to earth. They also provide fault protection (protection against indirect contact), additional protection (with I?n = 30 mA), and fire protection (with I?n = 300 mA). They comply with the product standard IEC/EN 61009-1 (VDE 0664-20).

Areas of application include household, commercial, and industrial applications. The extensive range of accessories provides everything you need for your installation tasks. Numerous approvals make the DS200 suitable for worldwide use. Rated breaking capacity Icn = 6,000 A according to IEC/EN 61009-1 (VDE 0664-20) for RCDs (Residual Current Devices) in residential construction and similar applications, Icu = 10 kA according to IEC/EN 60947-2 (VDE 0660-101) for MCBs (MCB) in industrial applications. RCBO DS200 Type A is 2-/4-pole protected (MCB), 2-/4-pole switching. EAN: 8012542859802.
