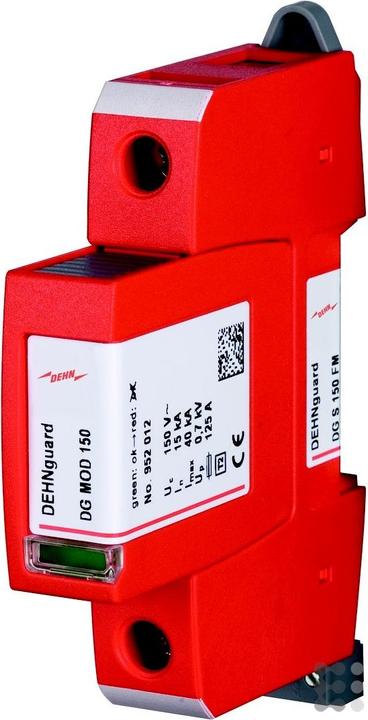

DEHN surge arrester DEHNguard DG S 150 FM

Manufacturer: DEHN
Designation: Surge arrester DEHNguard
Type: DG S 150 FM
Mains type TN: Yes
Mains type TN-C: Yes
Mains type TN-C-S: Yes
Mains type TN-S: Yes
Mains type TT: Yes
Number of conductors (without earth): 1
Rated leakage impulse current (8/20): 15 kA
Max. leakage current (8/20): 40 kA
Rated voltage AC: 120 V
Max. continuous voltage AC: 150 V
Max. continuous voltage DC: 200 V
Protection level: 0.7 kV
Max. overcurrent protection device (fuse) for stub wiring: 125 A
Max. overcurrent protection device (fuse) for V-wiring: 100 A
Short-circuit strength (Isccr): 50 kA
Mounting type: Top-hat rail TH35

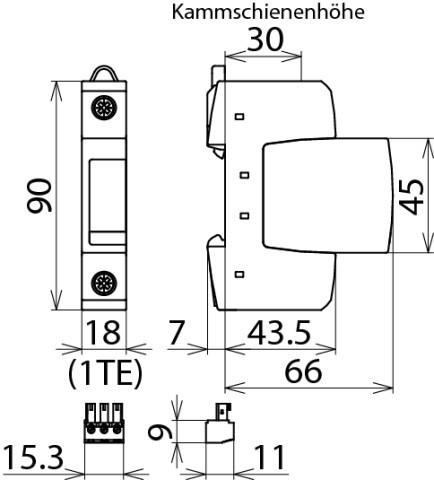

Size: 1 TE
Max. conductor cross-section rigid (single): 35 mm²
Max. conductor cross-section rigid (solid/multistranded): 35 mm²
Max. conductor cross-section flexible (fine-stranded): 35 mm
Max. conductor cross-section flexible (flexible): 25 mm²

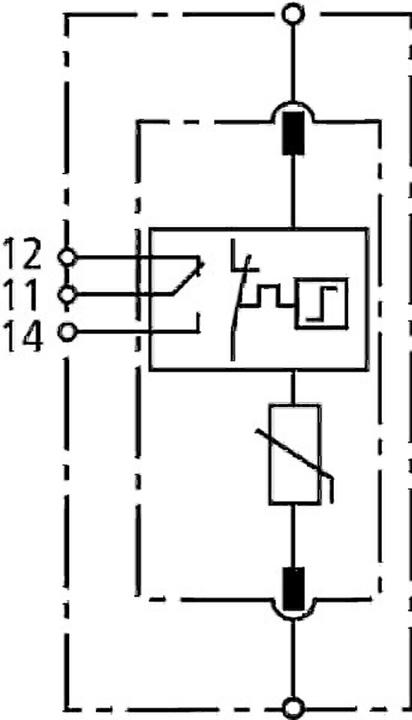

With remote signalling contact: Yes
Signalling on device: Optical
Test class type 2: Yes
Protection class (IP): IP20

Further details: Single-pole surge arrester DEHNguard S, type 2 according to EN 61643-11, consisting of base part and plug-in protection module. High device safety due to arrester monitoring with thermo-dynamic control. For the protection of low-voltage consumer installations against overvoltages. For use in the lightning protection zone concept at interfaces 0B, 1 and higher.
EAN: 4013364109865.
