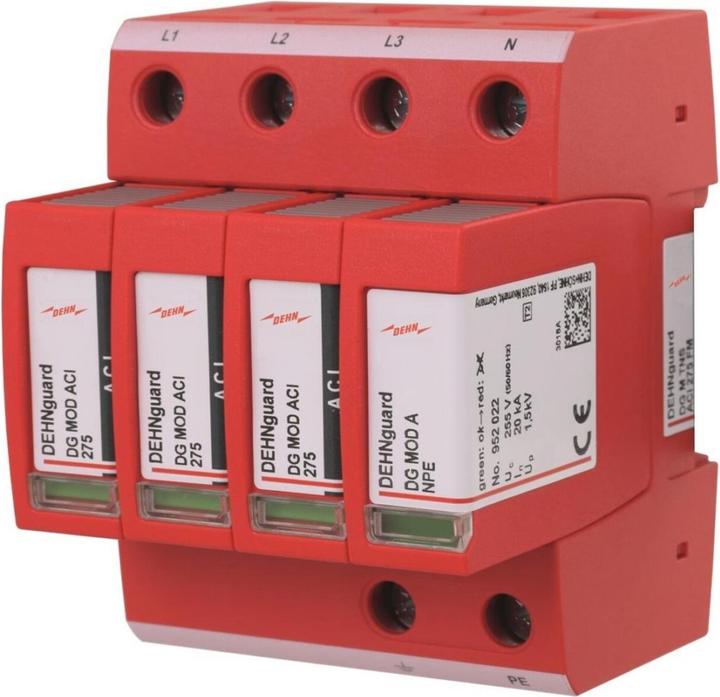

Dehn guard M TNS ACI 275 FM
Price in EUR including VAT
Delivered between Fri, 1/8 and Tue, 12/8
free shipping
Product details

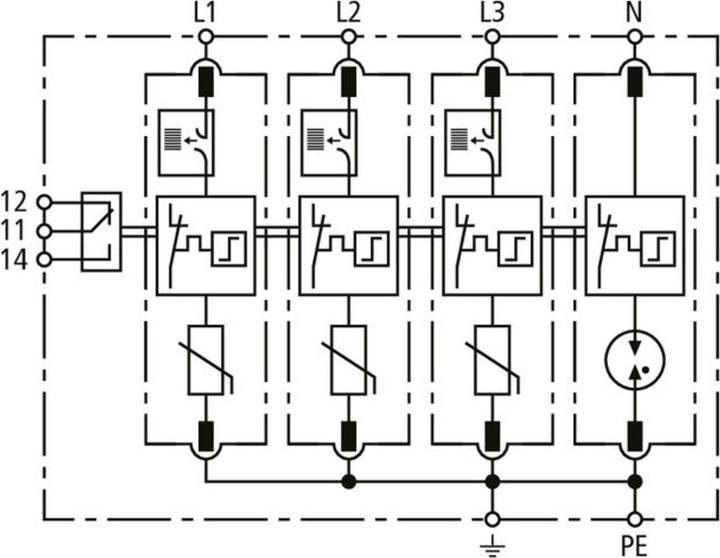

Multi-pole surge arrester DEHNguard ACI, type according to EN 61643-11 with integrated ACI switch-spark gap combination, consisting of a base unit and plug-in protection modules. High device safety due to arrester monitoring with Thermo-Dynamic-Control. Designed to protect low-voltage consumer installations from surges. Suitable for use in lightning protection zone concepts at interfaces 0B 1 and higher. DG M TNS ACI 275 FM.
Surge protection type | Surge arrester |
Number of conductors | 4 x |
mounting style | Top-hat rail |
Test class | Type 2 |
Item number | 22731484 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 110860 |
Release date | 19/10/2022 |
External links |
Surge protection type | Surge arrester |
Number of conductors | 4 x |
Lightning impulse current | 25 kA |
Rated leakage surge current | 25 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
mounting style | Top-hat rail |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

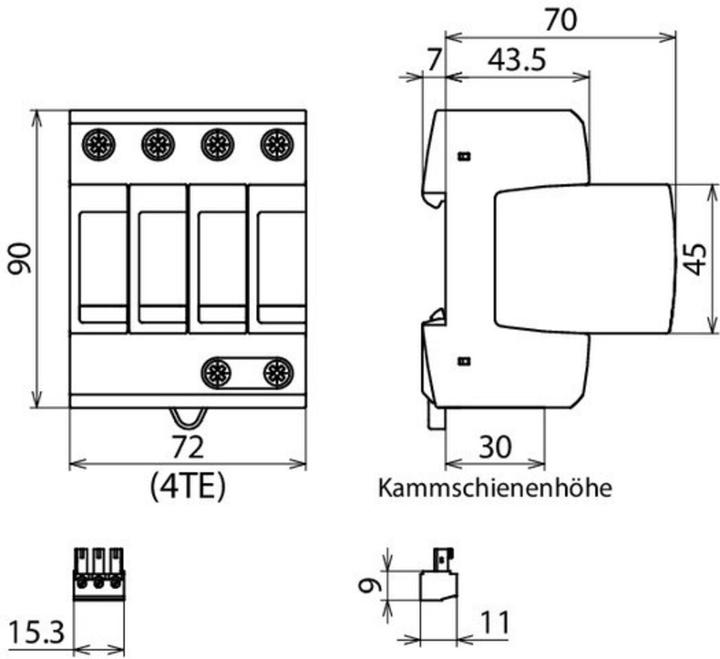

Length | 0.10 m |
Width | 0.08 m |
Height | 0.08 m |
Weight | 450 g |
Specifications may include unverified machine translations.
