Eaton POWER LIMIT SWITCH, XF9D251

Price in EUR including VAT
Delivered between Fri, 18/7 and Thu, 24/7
7 pieces in stock at supplier
free shipping

Product details

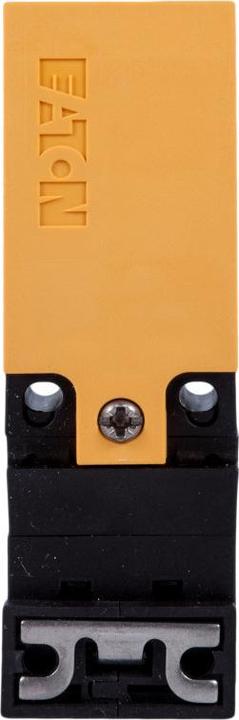

Eaton Position Switch LS-02-ZB

Manufacturer: Eaton
Designation: Position Switch 2Ö
Type: LS-02-ZB
Width of the sensor: 30 mm
Diameter of the sensor: 0 mm
Height of the sensor: 96 mm
Length of the sensor: 33.35 mm
Rated operational current Ie at AC-15, 24 V: 10 A
Rated operational current Ie at AC-15, 125 V: 6 A
Rated operational current Ie at AC-15, 230 V: 6 A
Rated operational current Ie at DC-13, 24 V: 3 A
Rated operational current Ie at DC-13, 125 V: 0.8 A
Rated operational current Ie at DC-13, 230 V: 0.3 A
Switching function: Slow switching element
Latching switching function: no
Electronic output: no
Forced opening: yes
Number of contacts as normally open: 2
Interface design: none
Interface design for safety-related communication: none
Enclosure design: Cuboid
Material of the enclosure: Plastic
Coating of the enclosure: other
Design of the actuating element: other
Orientation of the actuating element: other
Design of the electrical connection: Cable entry (metric)
With status indicator: no
Suitable for safety functions: yes
Explosion protection category for gas: none
Explosion protection category for dust: none
Ambient temperature during operation: -25 to 70 °C
Protection class (IP): IP66
Protection class (NEMA): other

Eaton Position Switch LS-02-ZB: additional details
Safety position switch, basic function: Position switch, safety position switch, type identifier: LS(4) ZB, range: Safety position switches, protection class: IP66, features: Complete device, ambient temperature: -25 to +70 °C, description: With installed actuator, the normally closed contact is open and the normally open contact is closed. Contacts Ö = Normally open: 2 Ö, note: Safety function, through forced opening according to IEC/EN 60947-5-1, enclosure: Plastic, connection type: Cage Clamp.

Key specifications

Nominal current
6 A
Nominal voltage
400 V
Number of outlets
2 x
Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Protection type (IP code)
IP66
Item number
20684912

General information

Manufacturer
Eaton
Category
Mobile power distributors
Manufacturer no.
106817
Release date
27/4/2022

Colour

Colour
Yellow
Exact colour description
Yellow

Material

Material group
Plastic
Material
Plastic

Mobile power distributor features

Nominal current
6 A
Nominal voltage
400 V
Number of outlets
2 x
Contact Configuration
2 break contact
Actuator Type
Other
Protection type (IP code)
IP66

Safety

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
Scope of delivery
Position switch 2Ö

Product dimensions

Width
30 mm
Length
33.35 mm
Height
96 mm
Diameter
33.35 mm
