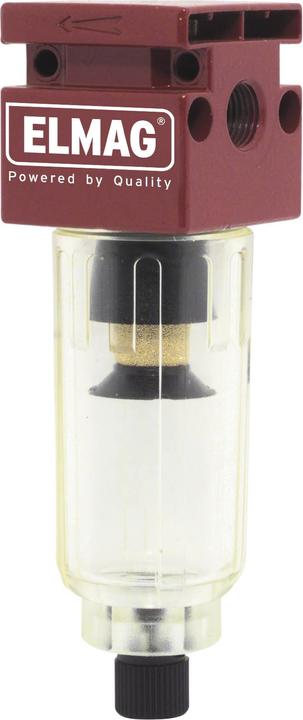

Elmag Filter Water Separator, Item No.: 42500

Maintenance devices, pressure regulators, filters, and lubricators. A quick look at the maintenance unit, occasional draining of the water separator, and adjusting the drip rate on the lubricator before using rotating or impact tools: minimal effort for good compressed air quality.

Filters, pressure regulators, and lubricators are available as individual devices or space-saving combined in a block design. The filter and filter pressure regulator feature a plastic container (polycarbonate) with a manual drain valve (three functions: open, semi-automatic, closed), a filter element made of sintered bronze (filter pore size 32 μm), and a pressure gauge ranging from 0-12 bar. Constant output pressure regardless of input pressure! All models are also available with reinforced glass protection! Installation is only possible in a vertical position (except for the pressure regulator). Operating temperature: min. +0 °C to max. +50 °C (at 10 bar).

• 1/4'

• Filter/Water Separator

Technical Data: Container volume: 13 cm³, flow rate at 6 bar: 1,150 l/min, inlet pressure: 18 bar, suitable for parcel delivery: Yes, country of origin: IT, customs tariff number: 84811005.
