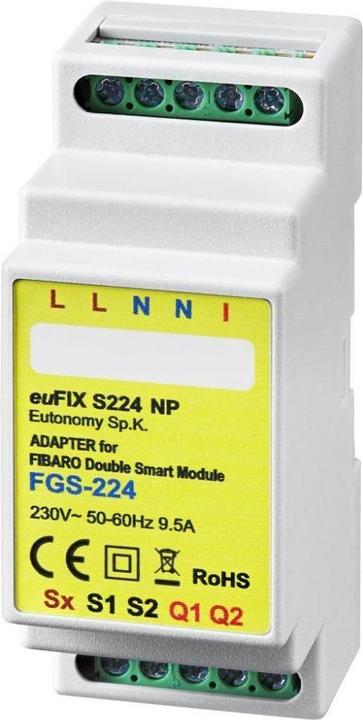

The euFIX S224NP adapter is used for the installation of the Fibaro Switch FGS-224 module on a DIN TH35 type rail in the distribution board.

It consists of a housing and an electronic board, onto which the FGS-224 is mounted. The dimensions are suitable for installation on a standard DIN TH35/TS35 rail.

The electronic board includes a terminal set with screws, allowing all cables (power supply, input and output signals, control buttons) to be securely attached.

The Fibaro module is not included and must be purchased separately.

Functions

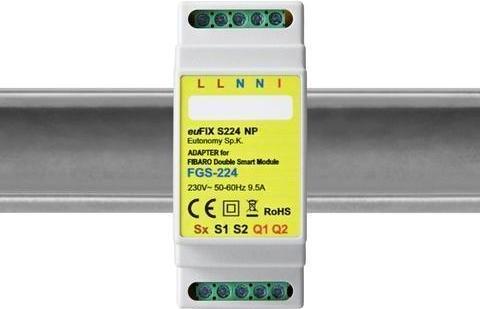

• Adapter used for the installation of the Fibaro Switch FGS-224 module on a DIN TH35/TS35 type rail in the distribution board
• Free space on the sticker to label the controlled line

Technical Specifications

• Supply voltage: 230 V AC +/- 10 %, 50-60 Hz
• Load power: max 8 A
• Dimensions: 34.8 x 87.3 x 64.7 mm
• Width in TE units: 2 TE modules
• Wire conductor diameter: max. 2.5 mm²
• Maximum length of wires connected to inputs Sx, S1, S2: 20 m
• Operating temperature: 0 °C to +50 °C
• Relative humidity: ≤ 90 %, no condensation
• Directives:
• LVD 2014/35/EU
• RoHS 2011/65/EU.
