You can also stay informed about all activities at home while on the go. This kit provides a one-stop solution so you no longer have to worry—whether it’s about break-ins or family emergencies. Seniors and children who are home alone can also send out a distress signal using the Smart Button.

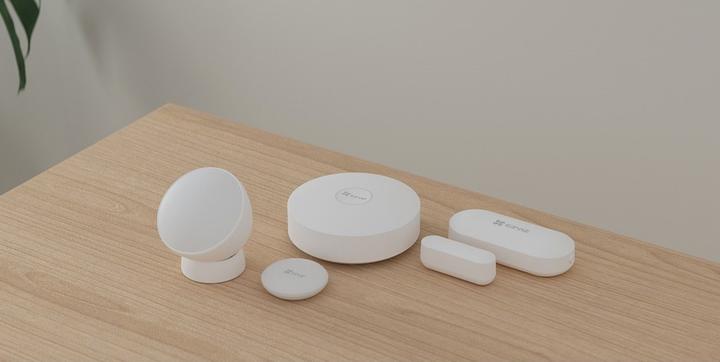

A hub that connects and interacts. The A3 Gateway serves as the central connectivity hub. You can manage, activate, and receive alarms from all connected sensors via the EZVIZ app.

Be alerted when someone enters your room. Install the PIR motion sensor in your room and adjust the detection range with the included pet shield.

Technical Specifications
Home Gateway:

• Dimensions: 70 x 25.4 mm / Weight: 71 g
• Power Supply: Micro USB, DC 5V / 1A with max. 3 Watts
• Communication: RJ45 port, WiFi 2.4 GHz & ZigBee 3.0

PIR Sensor:

• Dimensions: 43.5 x 32 mm / Base: 29 x 9.5 mm / Weight: 92 g with packaging
• Power Supply: CR2450 coin cell battery (up to 2 years battery life)
• Sensor: Passive infrared sensor with up to 7 m range & 90° horizontal and 90° vertical coverage
• Communication: ZigBee 3.0 (up to 200 m range)

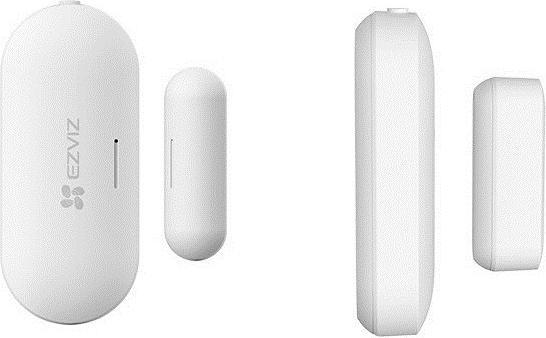

Open/Close Sensor:

• Dimensions: 53.5 x 22.5 x 13.5 mm / Magnet: 32 x 10.5 x 13.5 mm / Weight: 80 g with packaging
• Power Supply: 2 x CR1632 coin cell batteries (up to 2 years battery life)
• Communication: ZigBee 3.0 (up to 200 m range)

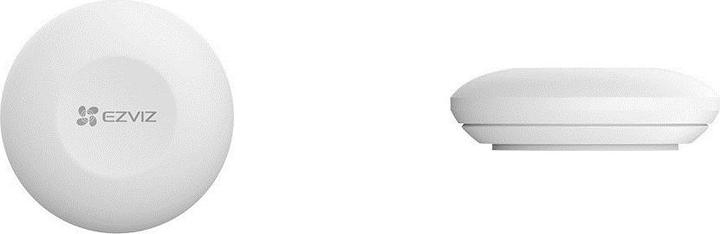

Smart Button:

• Dimensions: 40.6 x 12.3 mm / Weight: 68 g with packaging
• Power Supply: CR2032 coin cell battery (up to 2 years battery life)
• Modes: Activate or deactivate alarm or emergency call button mode
• Communication: ZigBee 3.0 (up to 200 m range)

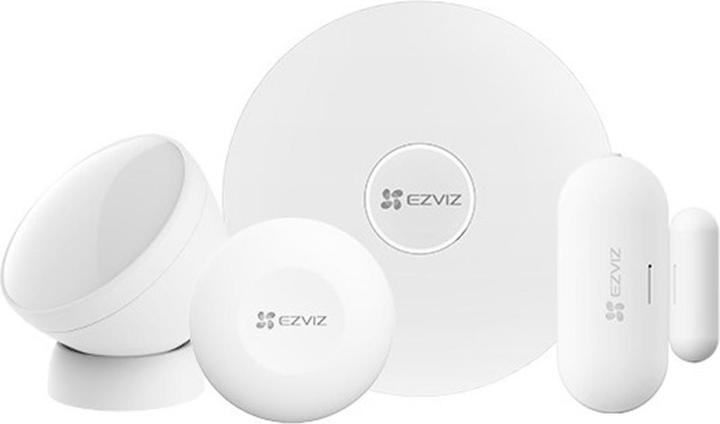

Included in the package:

• A3 Home Gateway including Power Adapter & USB Cable
• T1C PIR Sensor including pet shield
• T2C Open/Close Sensor
• T3C Smart Button including double-sided adhesive strips
• Quick Start Guide.
