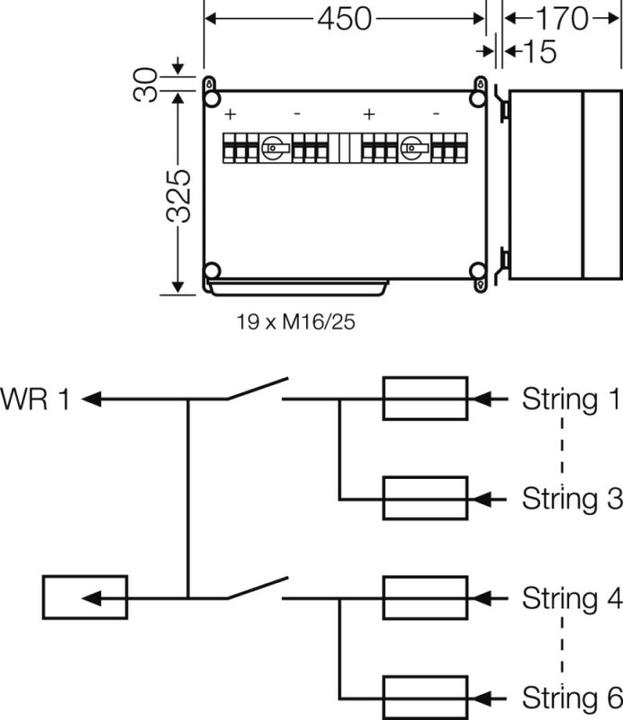

Hensel HEN Mi PV 3321 PV generator junction box with ÃSE and fuse 6xPV 1xWRE
Product details
The Hensel Mi PV 3321 PV generator connection box is a reliable solution for photovoltaic systems, enabling a safe and efficient connection between the PV strings and the inverter. This connection box is designed for use in PV systems up to 1000 V d.c. and meets the requirements of IEC 61439. It comes fully assembled and pre-wired, significantly simplifying installation. The housing is made of high-quality, protection-insulated thermoplastic and offers a high level of protection against dust and water with an IP 65 rating. The box is suitable for protected outdoor installation and is also UV-resistant, ensuring its durability under various weather conditions. Wall mounting is facilitated by robust external stainless steel brackets that allow for secure installation.
- Equipped with a Type 2 DC surge protector and two DC generator disconnect switches
- Provides connection options for 6 PV strings to 1 inverter input
- Includes 6 fuse holders for cylindrical fuse inserts
- Suitable for outdoor installation due to UV-resistant material
- Tool-operated lid locks for easy access.
Junction box type | Junction box |
Protection type (IP code) | IP65 |
Height | 170 mm |
Width | 450 mm |
Length | 325 mm |
Item number | 23985233 |
Manufacturer | Hensel |
Category | Junction box |
Manufacturer no. | 4012591116943 |
Release date | 16/11/2022 |
Colour | Grey |
Exact colour description | Grey |
Material group | Plastic |
Material | Plastic |
Junction box type | Junction box |
mounting style | Adhesive, Duvet |
Area of use | Outside |
Protection type (IP code) | IP65 |
Country of origin | Germany |
CO₂ emissions | 0,87 kg |
Climate contribution | EUR 0,12 |
Items per sales unit | 1 pcs. |
Height | 170 mm |
Width | 450 mm |
Length | 325 mm |
Product Safety |
