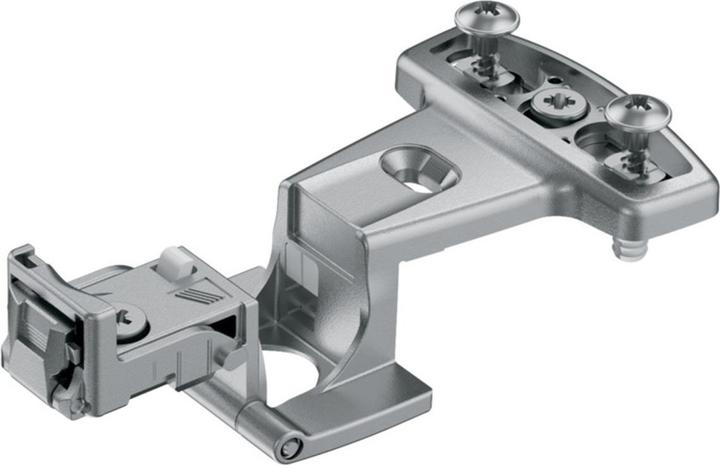

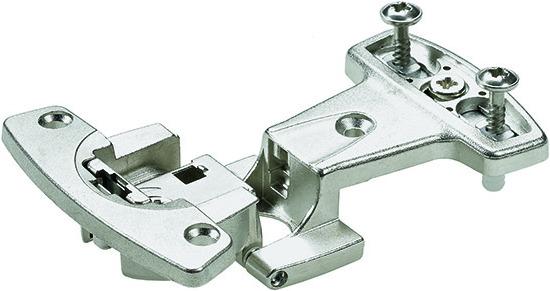

Single-joint cup hinge with clip-on technology featuring a visible roller. It has a hole line of 32 mm and a long hole for the third screw for height adjustment. The pot diameter is 35 mm with a hole row of 32 mm and a slot for the third screw for height adjustment. It includes a locking device with a pot diameter of 35 mm, door support of 12 mm, roller diameter of 5.4 mm, and roller length of 39 mm.

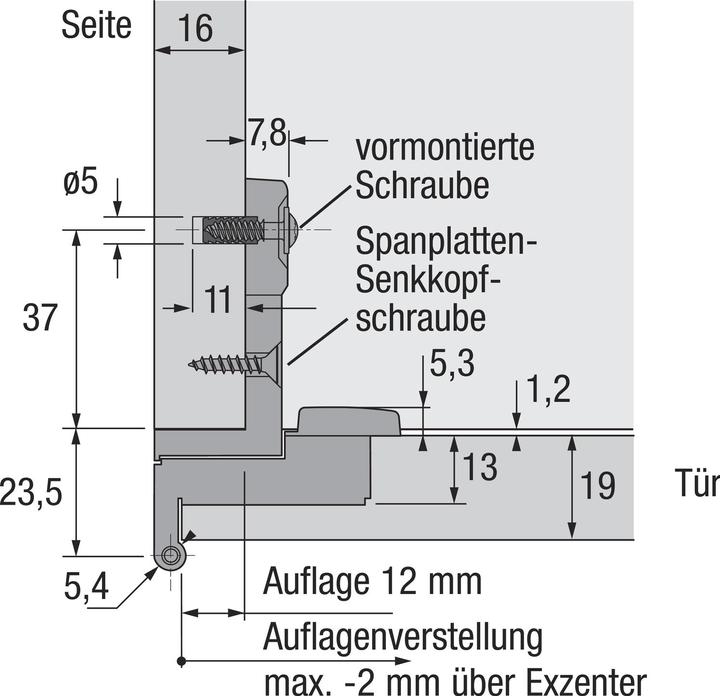

The assembly of the pot and side panel is separate, and the side panel includes an expanding dowel tab and pre-assembled pan-head screws. Quick door assembly is achieved by clipping on without tools. It offers high security against unintentional release, as the locking mechanism can only be released with a flat-blade screwdriver. There is no door retraction from an opening angle of 180°, providing free interior space for pull-outs.

Eccentric support adjustment is 2 mm, and eccentric height adjustment is ± 2 mm. Note: Suitable hinge pots include TB32, TH32, TX32, TB33, TH33, and TX33. The cover cap and hinge pot must be ordered separately.

Type: Selekta Pro 2000
Material: Precision die-cast zinc
Type of hinge: Flush roller

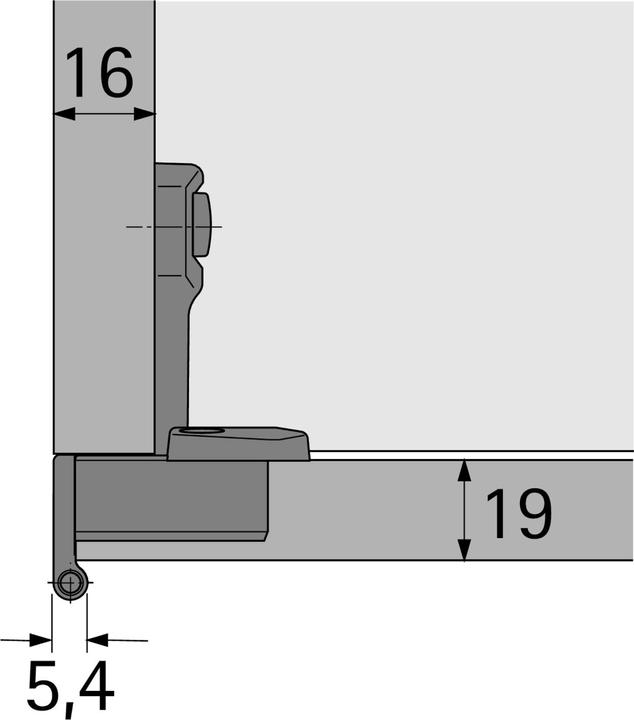

Side panel thickness (mm): 16
Door thickness (mm): 19
Factory number: 45047
Surface: Nickel-plated
Use: Cabinet construction
Opening angle (°): 270
Door support (mm): 12
Product type: Hinge
Brand: Hettich
Contents (pcs): 1.
