Kaiser Wall light junction box
5 pieces in stock
Product details
Kaiser wall light connection box 1048-00
Manufacturer: Kaiser
Designation: Wall light connection box
Type: 1048-00
Mounting type: Flush-mounted
Shape: Other
Design: Connection box
Version: Single
With rotatable ring: No
Coupleable: No
Filling: None

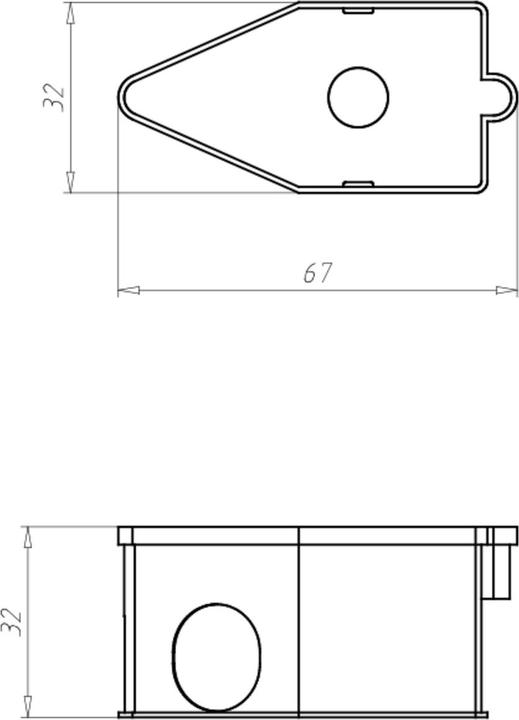

Length: 60 mm
Width: 32 mm
Depth: 30 mm
Internal depth: 31.2 mm
Device mounting: Screws
With screws: No
Housing entry through breakout opening: Yes
Housing entry through sealing membrane: No
Housing entry through pipe socket: No
Housing entry through step membrane: No
For pipe diameter: 20 mm
Suitable for cable diameter: 11.4 mm
Pipe locking: Yes
Optional pipe locking: No
Rear entry: Yes
Number of entries: 4
Material: Plastic
Halogen-free: Yes
Color: White
Protection class (IP): IP2X
Cover design: Blank cover
Transparent cover: No
Cover attachment: Snap-on
Seal-able: No
Function preservation: None
With shielding: No
Air-tight: No
Max. conductor cross-section: 2.5 mm²
Terminal position fixed: No
Light hook attachment: No
Socket: None
Special application: None
With partition wall: No
Kaiser wall light connection box 1048-00: Additional details
Wall light connection box (1048-00).
Installation type: Basic installation
Length: 60 mm
Width: 32 mm
Depth: 30 mm
Application area: For cable outlets
Application area: For wall lights.
Junction box type | Distribution box |
Protection type (IP code) | IPX2 |
Height | 60 mm |
Width | 32 mm |
Length | 60 mm |
Item number | 17941388 |
Manufacturer | Kaiser |
Category | Junction box |
Manufacturer no. | 1048-00 |
Release date | 16/12/2021 |
External links |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Plastic |
Junction box type | Distribution box |
mounting style | Flush-mounted |
Area of use | Outside |
Protection type (IP code) | IPX2 |
Country of origin | Germany |
CO₂ emissions | 0,03 kg |
Climate contribution | EUR 0,12 |
Items per sales unit | 1 pcs. |
Height | 60 mm |
Width | 32 mm |
Length | 60 mm |
Product Safety |
Length | 7 cm |
Width | 3 cm |
Height | 5 cm |
Weight | 10 g |
