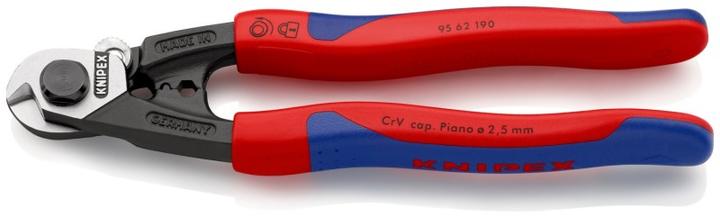

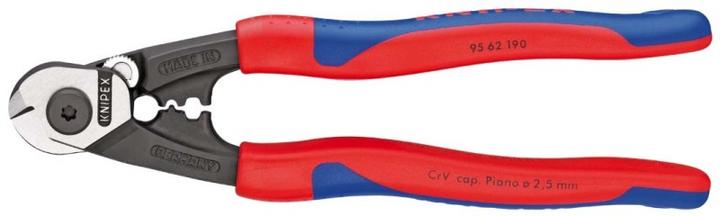

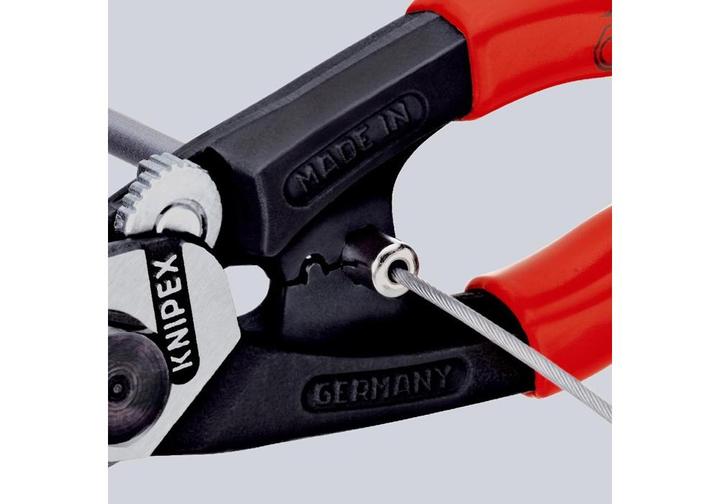

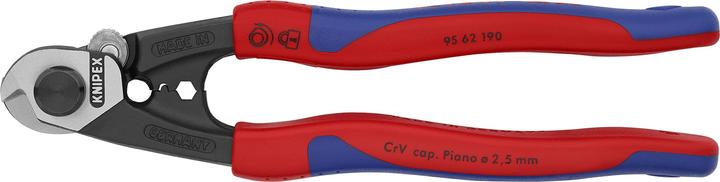

95 62 190 SB wire rope cutter with two press profiles for end sleeves on Bowden sheaths and end caps for wire rope hoists. Comfortable working due to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, adjustable. High transmission ratio for effort-saving work. Cutting edge hardness approximately 64 HRC. SB-card/blister.

Cutting values:

• Piano wire (diameter): Ø 2.5 mm
• Cu-cable - stranded (diameter): Ø 7.0 mm
• Wire rope (diameter): Ø 5.0 mm
• Medium hard wire (diameter): Ø 4.0 mm
• AWG: 8

Further technical features:

• Head: burnished
• Joint design: screwed joint.
