Product Description:

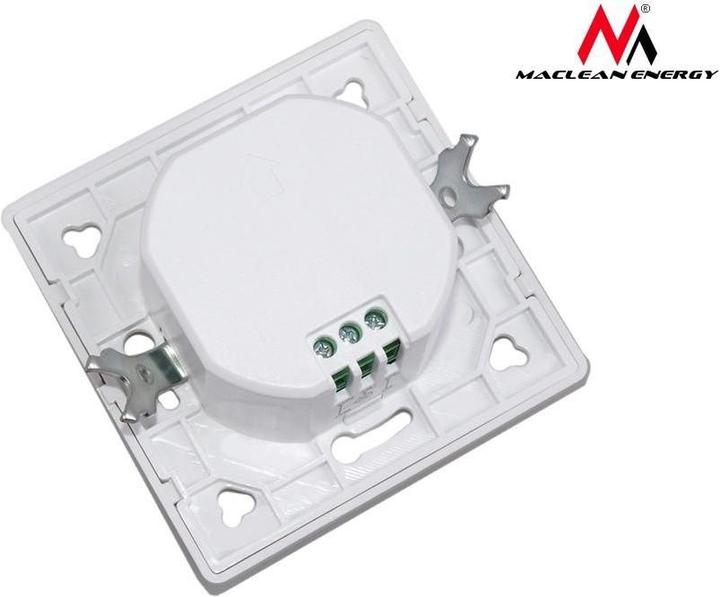

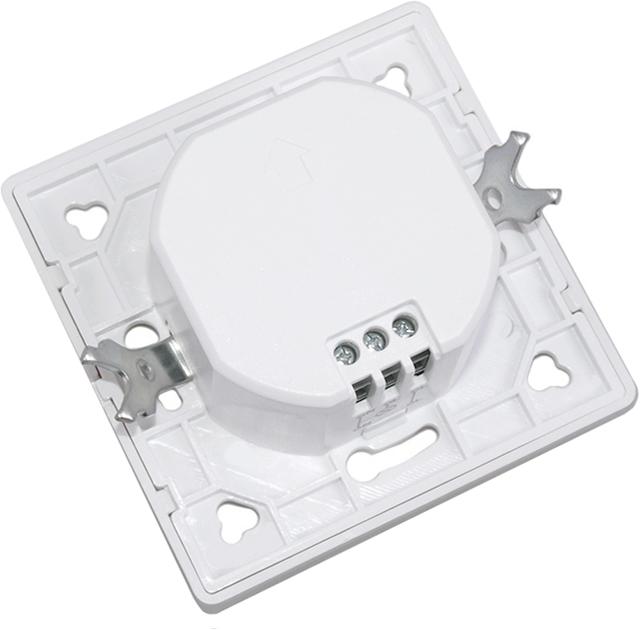

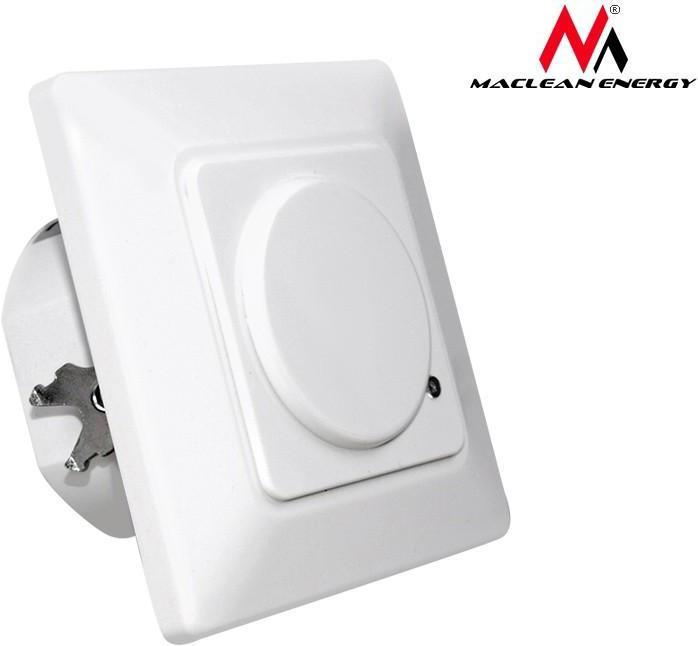

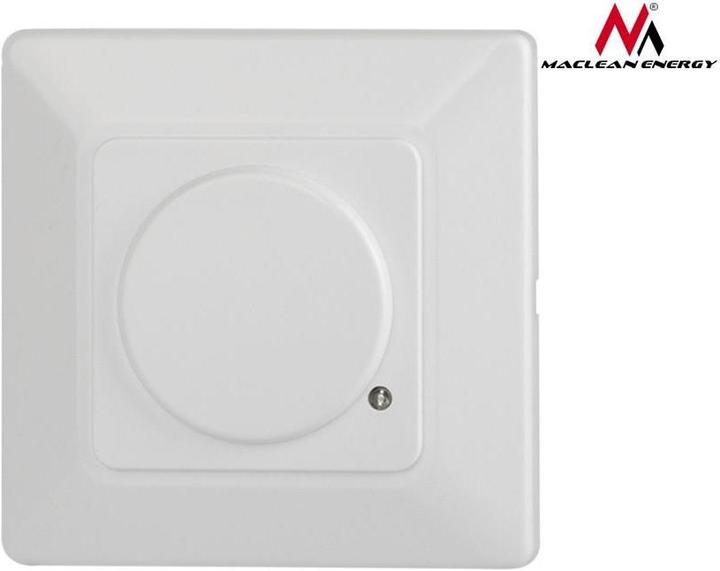

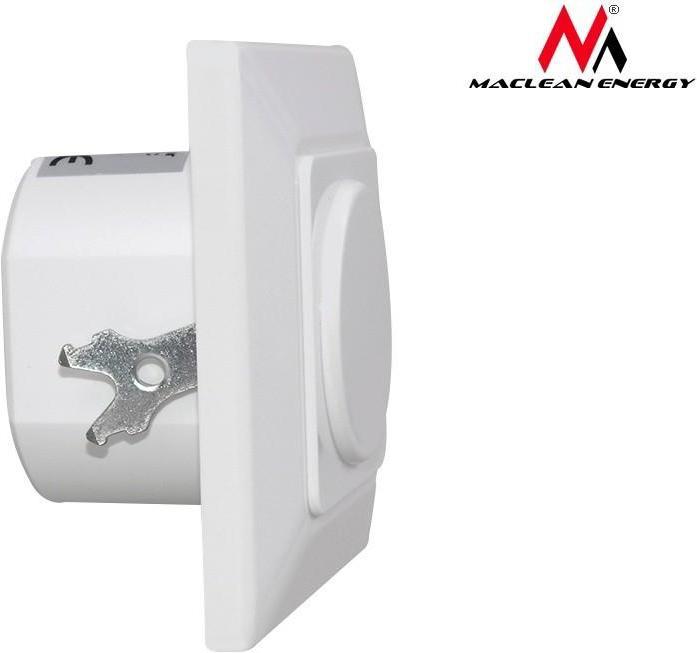

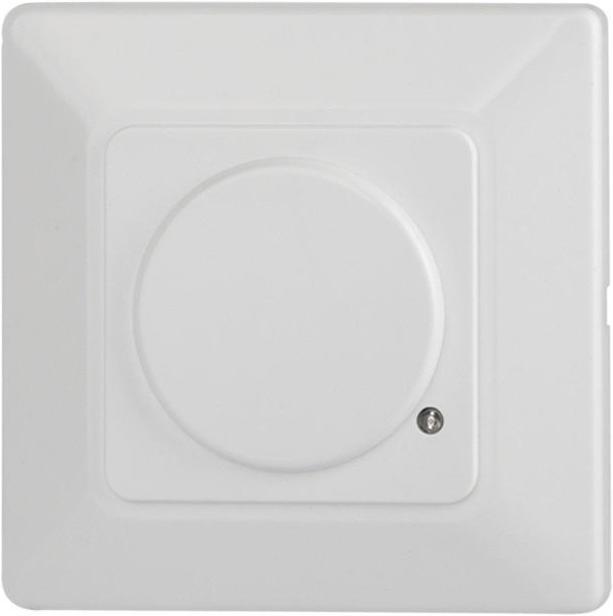

MCE132 microwave motion sensor for automatic control of lighting in indoor and outdoor areas such as stairwells, hallways, basements, garages, cloakrooms, and restrooms.

Product Features:

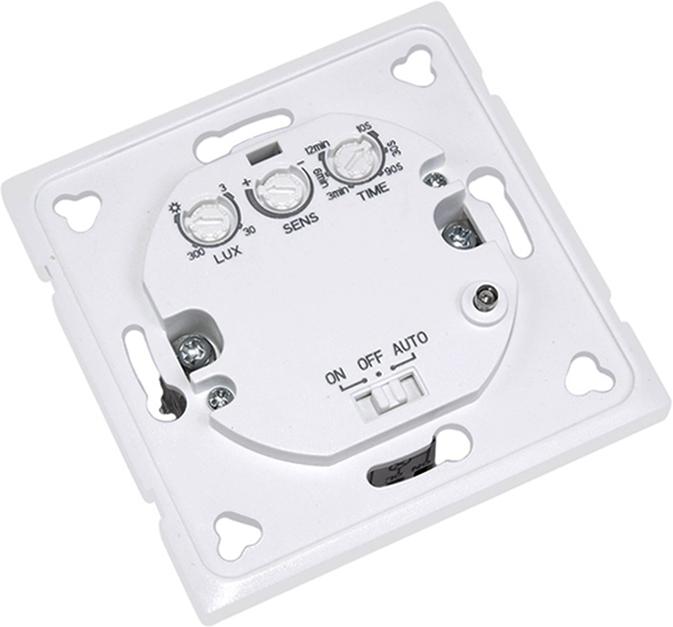

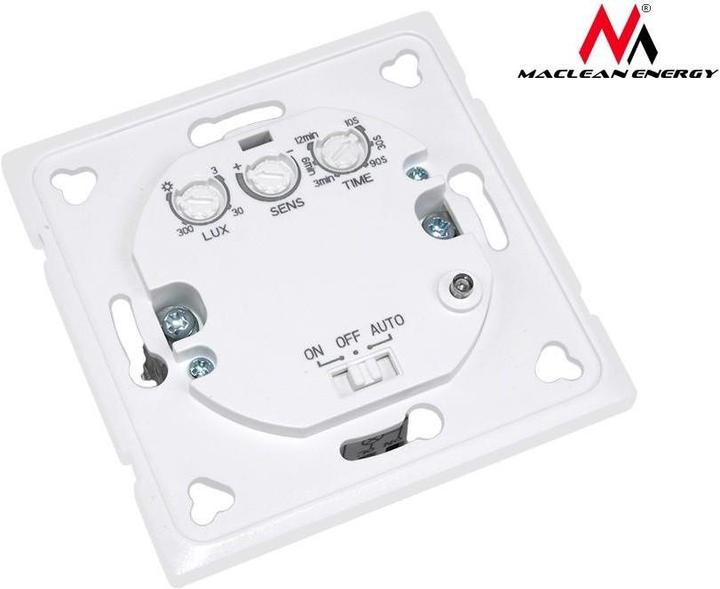

The light sensor can be adjusted as needed: Sun position (max) for operation during the day and at night, Moon for operation at night with a horizontal intensity of approximately 3 Lux. It can be calibrated to the needs of the location, with a detection range of at least 2 m up to 16 m, allowing the device to be used in hallways.

Switching Time Setting:
Depending on requirements, it can be set in the range of 10 s ± 3 s to 15 min ± 2 min. The timer resets every time the device detects movement. Adjustable shut-off time from 10 s (+/- 3 s) to a maximum of 12 min (+/- 1 min).

Microwave motion sensors are active motion detectors that operate at a frequency of 5.8 GHz. The devices are characterized by a high operating frequency, low power output (< 0.2 mW), and very good detection of movements towards or away from the motion sensor. The ST756 sensor features a built-in twilight sensor. The uniqueness of the device allows for installation behind doors, panels, glass elements, or thin walls.

The presented features enable versatile use of the microwave motion sensor.

Technical Specifications:

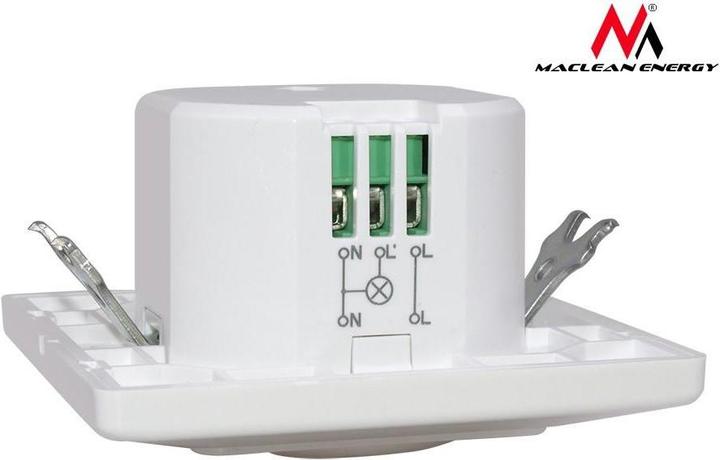

Supply Voltage: 220-240 V/AC
Mains Frequency: 50 Hz
Compatible with LED lighting
Light Sensor: 3-2000 Lux (adjustable)
Switch-on Time: min 10 s ± 3 s, max 12 min ± 60 s
Detection Angle: 180°
Operating Frequency: 5.8 GHz
Detection Range: 5-15 m.
