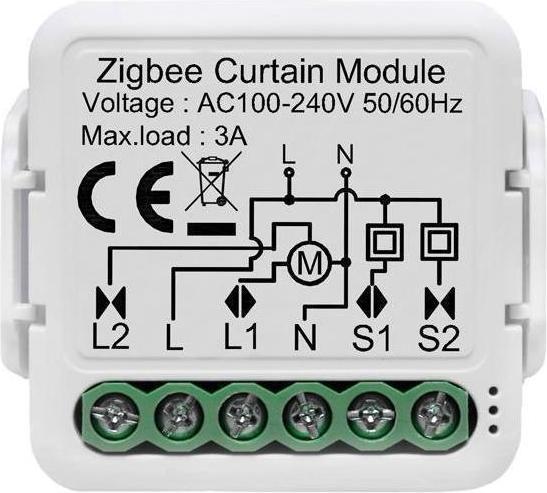

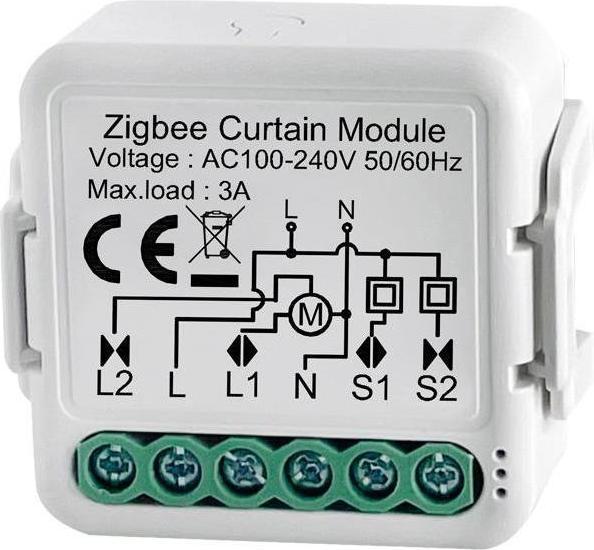

Netplus Smart Shutter Switch Module 1-channel Zigbee works with motorised blinds, window curtains, shutters, awnings, etc. and lets you control them remotely or wirelessly via the smartphone app. It is powered by a single-phase alternating current and displays the opening level of blinds, shutters, curtains or awnings so that they can be moved to the desired position.
Flexible installation: The Netplus Smart Home Curtain Module is designed to be compatible with existing curtain switches, maintaining the technical function and requiring minimal changes to your current electrical system. Thanks to its small size, this smart curtain switch module fits into most flush-mounted boxes without the need for remodelling or rewiring.
Zigbee connection: Connect this smart curtain module to a Zigbee 3.0 HUB or gateway, which can be purchased separately.
Mobile app remote control: take full control of your blinds/curtains/shutters via the mobile app, no matter where you are. You want to fall asleep in bed after playing a mobile game, but your window curtain is still open. You don't want to get up? Easy, just close it with your mobile.
Features:
Input: AC100-240V 50/60Hz
Output: AC100-240V 50/60Hz
Load: max. 3A
Channels: 1 channel
Power measurement: No
Management app: SmartLife or TuySmart app
Operating range: < 200 metres
Standby power: < 0.5W
Overload protection: Yes
Neutral conductor required: Yes
Connectivity protocol: Zigbee 3.0
Operating temperature: -10ºC - +40ºC
Housing temperature: Tc: +80ºC (Max.)
Operating humidity: 5% - 95% RH, non-condensing
IP protection class: IP20 for indoor use
