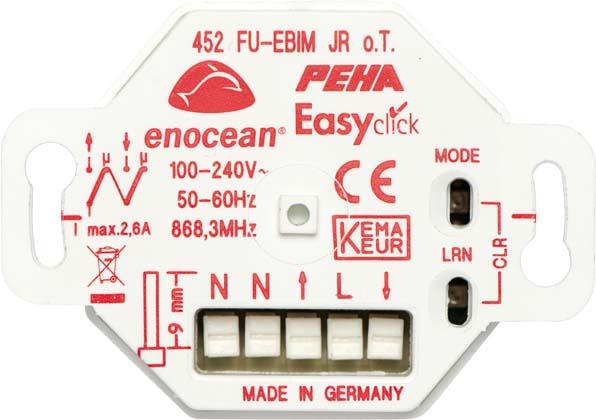

The bidirectional Easyclick-JR receiver not only receives radio signals but also sends back its status with every change in state. The Easyclick receiver is designed for controlling roller shutters and blinds. Various functions and parameters can be selected:

• Two-button operation UP/STOP/DOWN with slat adjustment (standard function for blinds)
• Two-button operation UP/STOP/DOWN without slat adjustment (standard function for roller shutters)
• Tapping operation (button follower)
• One-button operation UP/STOP/DOWN
• Locking for safety during maintenance
• Automatic ON/OFF
• Sun sensor/dusk sensor/wind sensor/rain sensor
• 4 position settings UP/DOWN for lighting scenes
• Lockout protection with window contact/window handle
• For each learned maximum of 32 transmitters, a function can be individually assigned.
• Independent of the set functions, integrated repeater functions (1-level/2-level) can be activated depending on the project.
• When learning, for example, window contacts and window handles, these are already assigned in the corresponding function/parameter.

Technical data:
Power consumption: < 0.5 W (bistable relay)
Transmission frequency: 868.3 MHz
Power supply: 100-240 V~/50-60 Hz
Neutral wire: required
Ambient temperature: -20 °C to +40 °C
Storage temperature: -40 °C to +85 °C
Terminal blocks: max. 1 x 1.5 mm²
Housing height: 28 mm
Protection class: IP 20
Mounting tabs: for screw mounting in switch boxes
Approvals: CE, KEMA/KEUR
Connection data: I max. 1.6 A

The Easyclickpro flush-mounted JR receiver is bidirectional, 2-channel with position detection. In addition to the bidirectional functions, the Easyclick receiver variant with position detection allows for the monitoring and feedback of the running times of roller shutters and blinds.
