Phoenix Contact Distributor block PTFIX 6/18X2#3273122
Price in EUR including VAT
Delivered between Sat, 6/9 and Sat, 13/9
Free shipping starting at 39,–
Product details

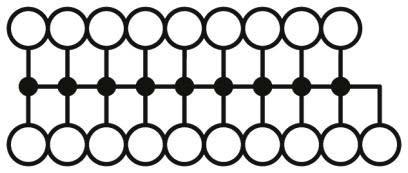

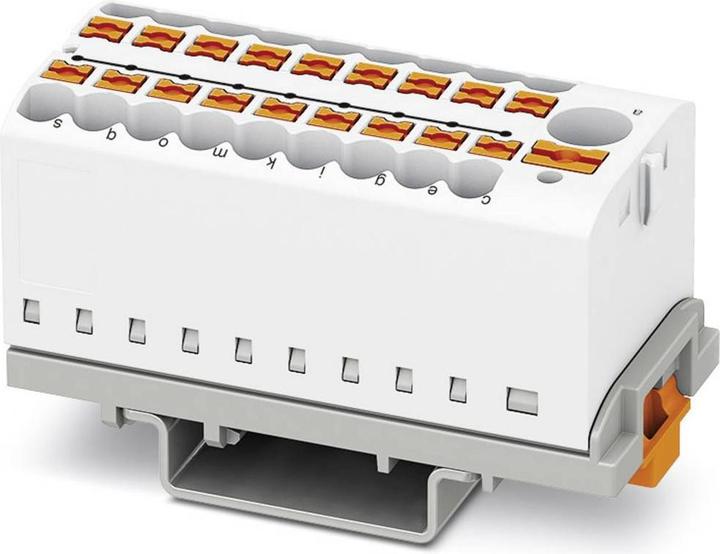

Distribution block, block with vertical orientation and integrated feed. The blocks can be bridged together via the conductor shaft. Suitable jumper bridges can be found in the accessories. Rated voltage: 690 V, rated current: 24 A, connection type: push-in connection. Number of connections: 19, cross-section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 28.6 mm, color: white, mounting type: NS 35/7.5, NS 35/15.
Item number | 31949179 |
Manufacturer | Phoenix Contact |
Category | Electrical installation small parts |
Manufacturer no. | 3273122 |
Release date | 12/10/2022 |
Colour | White |
Exact colour description | White |
Material | Other |
Max. temperature | 105 °C |
Min. temperature | -60 °C |
Clamps diameter | 28.60 mm |
Nominal voltage | 690 V |
Manufacturer Type | PTFIX 6 |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Width | 28.60 mm |
Length | 60.70 mm |
Height | 59 mm |
Diameter | 58.10 mm |
