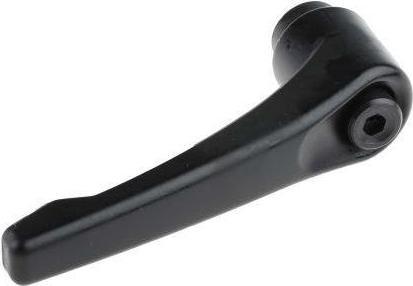

Lever design: Clamping lever
Thread type: Internal thread
Thread size: M12
Thread insertion length: 16 mm
Grip material: Zinc die-cast
Insert material: Steel
Length: 92 mm
Color: Black

The values in the table represent the minimum insertion length. Zinc grip – steel insert with internal thread. Designed for repeated fastening or clamping. Ideal when space is limited. To operate, lift the handle and turn it around a notched drive to achieve the required clamping pressure. Alternatively, internal hex keys can be used – 3 mm for 42 mm, 4 mm for 65 mm and 78 mm, 5 mm for 92 mm.
