Output speed: 84 RPM
Supply voltage: 12 V, 4.5 → 15 V DC
Maximum output torque: 6000 gcm
DC motor type: Brushed
Shaft diameter: 6 mm
Power: 19.8 W
Gearhead type: Spur
Length: 78 mm
Width: 37 mm
Rated current: 2.75 A
Housing mounting: Iron core
Series: 919D

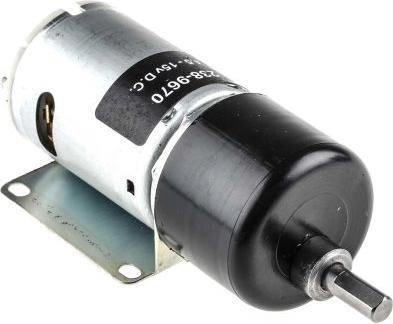

Model motors and gearboxes - Spur gear. This miniature gearbox is made of steel and brass and features brass gears. It is mounted on a steel bracket with a thickness of 1 mm. It offers a high-quality, three-pole motor with sliding bearings. Due to its design and construction, it is ideally suited for a variety of model applications and light industrial uses. Features and benefits: All gear ratios with 4 mm output shaft. RE280, RE280/1, and RE280/5 motors available. Maximum 2° play without load.
